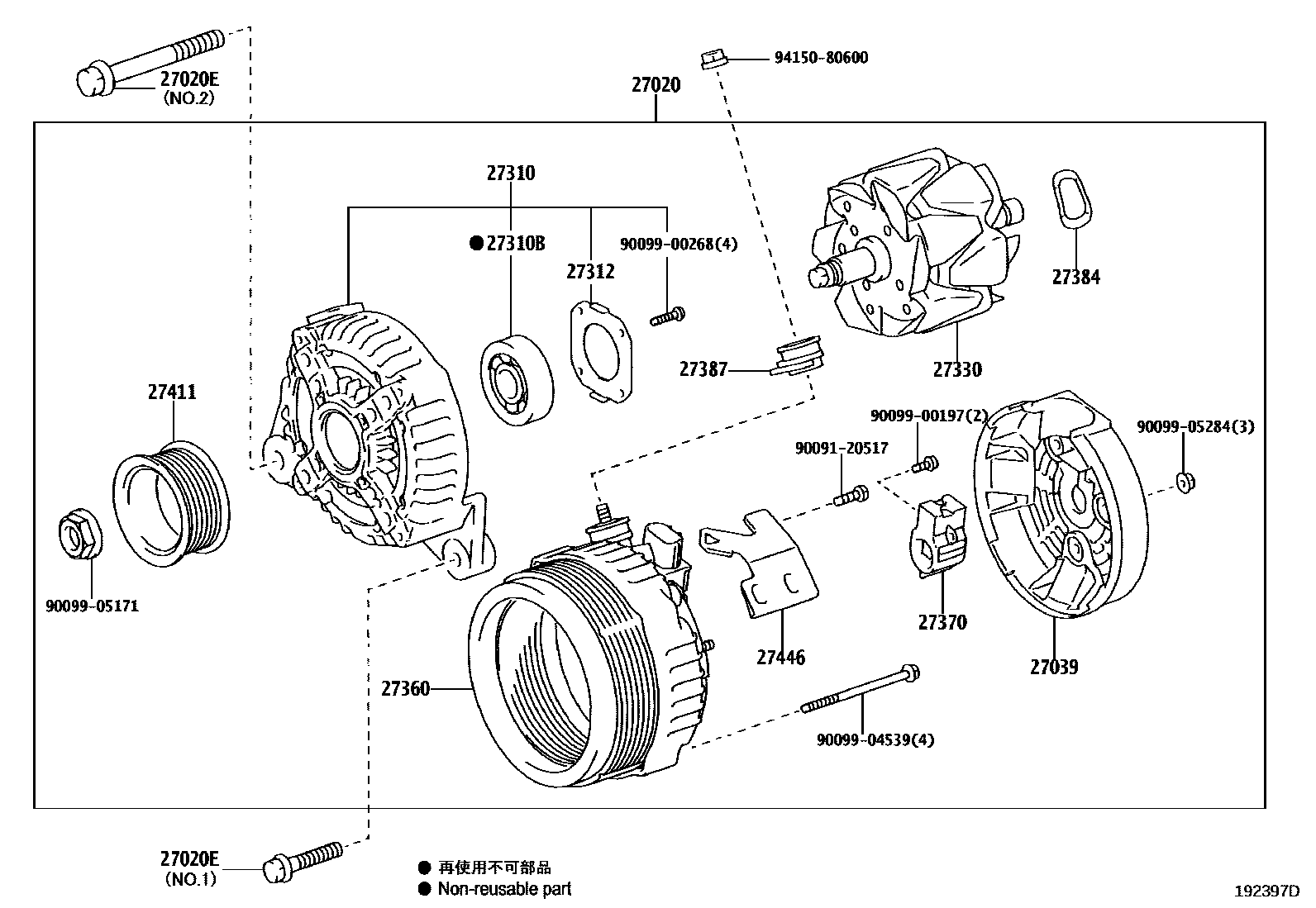

ALTERNATOR

0001 112V 100A 0002 112V 100A 0003 112V 100A 0004 112V 130A,150A 0005 112V 150A 0006 112V 100A

27020ALTERNATOR ASSY

main27060-26030i2AD#..ALA30200511-200812

12V 130A

main27060-26060i2AD#..ALA3#200812-201212

12V 150A

main27060-28300i2AZFE..ACA33,38200511-200808

12V 100A

sub27060-28301

main27060-28301i2AZFE..ACA33..G..GCC200808-200812

12V 100A

main27060-28301i2AZFE..ACA33,38..ARL,GCC,GEN200808-200912

12V 100A,REFER ILLUST.

main27060-28311i2AZFE..ACA33,38200912-201212

12V 100A,REFER ILLUST.

main27060-28330i1AZFE..ACA30200511-201212

12V 100A

main27060-28360i2AZFE..ACA31200701-200807

12V 100A

sub27060-28361

main27060-28361i2AZFE..ACA31200808-200912

12V 100A

main27060-31101i2GRFE..GSA33200708-200907

12V 150A

sub27060-31102

main27060-31102i2GRFE..GSA33200908-201212

12V 150A

main27060-37050i3ZRFAE..ZSA3#200812-200902

12V 100A

sub27060-37051

main27060-37051i3ZRFAE..ZSA3#200903-201212

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i3ZRFAE..ZSA3#200812-201212

main91512-81085i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212

NO.2

main91551-80840i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

NO.1

main91552-81040i2GRFE..GSA33200708-200808

NO.1

main91552-81045i2GRFE..GSA33200808-201212

NO.1

main91552-81070i2GRFE..GSA33200708-201212

NO.2

27039COVER, ALTERNATOR REAR END

main27039-26170i2AD#..ALA30200511-200903

main27039-27060i2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN200511-200907

main27039-27090i2AD#..ALA3#200709-201212

main27039-31390i3ZRFAE..ZSA3#..ATYPE200902-201212

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-27090i2AD#..ALA3#200511-201212

main27310-28120i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

main27310-31290i2GRFE..GSA33200708-201212

main27310-37030i3ZRFAE..ZSA3#200812-201212

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i1AZFE,2AZFE,2AD#..ACA3#,ALA30200511-200611

sub90099-10223

main90099-10223i2AZFE..ACA33..X..GCC;2AZFE,2GRFE..ACA33,38,GSA33..ARL,GEN200612-201212

27312PLATE, RETAINER

main27312-72100i1AZFE,2AZFE,2AD#,2GRFE,3ZRFAE..ACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

27330ROTOR ASSY, ALTERNATOR

main27330-30070i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212

main27330-33090i2AD#..ALA30200511-200812

main27330-58460i2GRFE..GSA33200708-201212

27360COIL ASSY, ALTERNATOR

main27360-26170i2AD#..ALA30200511-200812

main27360-26230i2AD#..ALA3#200812-201212

main27360-28170i2AZFE..ACA33,38..ARL,GCC,GEN200511-200912

main27360-28250i1AZFE..ACA30200511-201212

main27360-28270i2AZFE..ACA33,38200912-201212

main27360-31300i2GRFE..GSA33200708-201212

main27360-37080i3ZRFAE..ZSA3#200812-201212

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2GRFE..GSA33200708-201212

main27370-58460i2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30200511-201212

27384WASHER

main27384-50030i1AZFE,2AZFE,2AD#,2GRFE,3ZRFAE..ACA30,33,38,ALA3#,GSA33,ZSA3#200511-201212

27387INSULATOR, TERMINAL

main27387-20130i2AZFE..ACA33..G..GCC;1AZFE,2AZFE,2AD#..ACA30,31,ALA30200511-201212

27411PULLEY, ALTERNATOR

main27411-28060i1AZFE..ACA30200511-201212

27446CLIP, ALTERNATOR CORD

main27446-28120i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

9009120517

main90091-20517

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9415080600

main94150-80600

20 parts on this diagram · 6 diagrams in section
