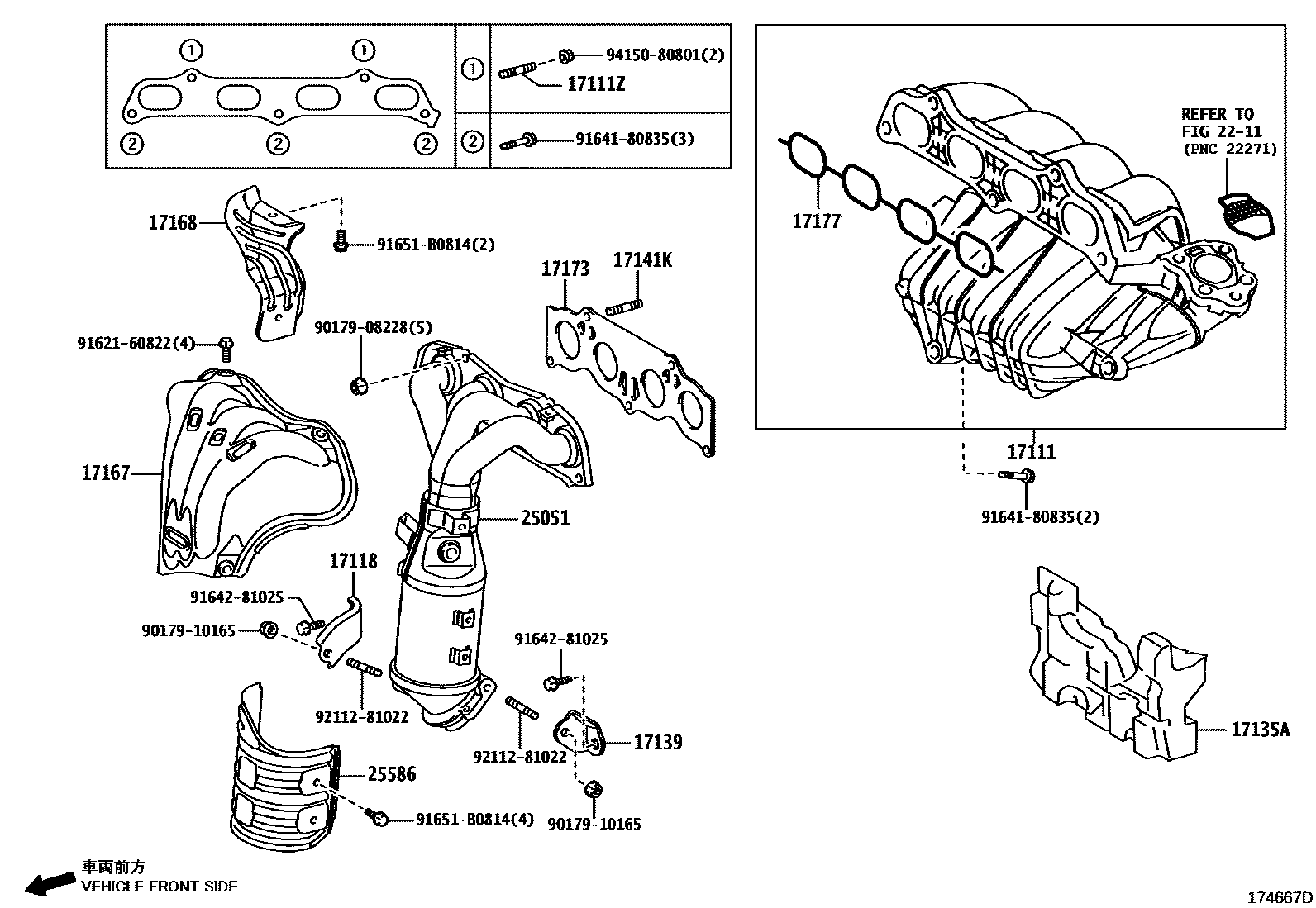

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

17111MANIFOLD, INTAKE

main17101-0R010i2AD#..ALA30200511-200807

sub17101-0R011

main17101-0R011i2AD#..ALA30200807-200812

main17101-0R020i2AD#..ALA3#200812-201212

main17111-31141i2GRFE..GSA33200708-201212

main17120-28100i1AZFE..ACA30200511-201112

sub17120-28101

main17120-28101i1AZFE..ACA30201201-201212

main17120-28170i2AZFE..ACA33,38200511-201112

sub17120-28171

main17120-28171i2AZFE..ACA33,38201201-201212

main17120-37011i3ZRFAE..ZSA3#200812-201212

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90116-08167i2AD#..ALA30200511-201007

main90126-08026i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

main90126-08052i2AD#..ALA3#201007-201212

17118STAY, MANIFOLD

main17118-26030i2AD#..ALA3#..DCRE,DCRL200511-201212

main17118-26050i2ADFTV..ALA30..DCR200511-201212

main17118-26060i2ADFTV..ALA30..DCRE200701-200812

main17118-28080i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

main17118-31050i2GRFE..GSA33200708-201212

main17118-37070i3ZRFAE..ZSA3#200812-201212

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-28011i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212

main17853-26010i2ADFHV..ALA30200511-200812

17139STAY, MANIFOLD, NO.2

main17139-26010i2AD#..ALA30..DCRE,DCRL200511-200812

main17139-26030i2ADFTV..ALA3#..DCR200511-201212

main17139-26050i2AD#..ALA3#..DCRE,DCRL200812-201212

main17139-28050i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

17141MANIFOLD, EXHAUST

main17141-0R010i2AD#..ALA3#200812-201212

(L)

main17141-26100i2AD#..ALA30200511-200812

main17141-26100i2AD#..ALA3#200812-201212

(J)

main17141-37100i3ZRFAE..ZSA3#200812-201212

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

main90126-08037i2AZFE..ACA31,33,38200511-201212

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-28060i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-201212

main17167-37070i3ZRFAE..ZSA3#200812-201212

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-28030i1AZFE,2AZFE..ACA30,33,38200511-201212

main17168-31021i2GRFE..GSA33200708-201212

sub17168-31050

main17168-37090i3ZRFAE..ZSA3#200812-201212

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0R010i2AD#..ALA30200511-201212

main17173-28010i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201212

main17173-31020i2GRFE..GSA33200708-201212

main17173-37010i3ZRFAE..ZSA3#200812-201212

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-0R010i2AD#..ALA30200511-201212

main17177-28010i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-201112

sub17177-28031

main17177-28031i1AZFE,2AZFE..ACA3#201201-201212

main17177-31040i2GRFE..GSA33200708-201212

main17177-37030i3ZRFAE..ZSA3#200812-201212

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0W010i2ADFTV..ALA30..DCR200511-200812

*114=TOYOTA/0W010/Y

main25051-26020i2ADFHV..ALA30200511-200702

*114=TOYOTA/26020/Y

sub25051-26021

sub25733-26031

main25051-26021i2ADFHV..ALA30200702-200812

*114=TOYOTA/26021/Y

main25051-26050i2ADFTV..ALA30..DCRE200701-200702

*114=TOYOTA/26050/Y

sub25051-26051

sub25733-26031

main25051-26051i2ADFTV..ALA30..DCRE200702-200812

*114=TOYOTA/26051/Y

main25051-26080i2ADFHV..ALA30200812-201212

*114=TOYOTA/26080/Y

main25051-26090i2ADFTV..ALA3#..DCRE200812-201212

*114=TOYOTA/26090/Y

main25051-26100i2ADFTV..ALA3#..DCR200812-201212

*114=TOYOTA/26100/Y

main25051-28340i1AZFE,2AZFE..ACA3#200511-201212

*114=TOYOTA/28340/Y

main25051-28360i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812

*114=TOYOTA/28360/Y,*195

sub25051-28340

main25051-28360i1AZFE,2AZFE..ACA30,33,38200808-200901

*114=TOYOTA/28360/Y

sub25051-28340

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-0R010i2ADFTV..ALA30200511-200609

sub25586-0R011

main25586-0R011i2ADFTV..ALA30..DCR200609-200808

sub25586-0R020

main25586-0R020i2ADFTV..ALA30..DCR200808-201212

main25586-26010i2AD#..ALA30..DCRE,DCRL200511-200812

main25586-26030i2AD#..ALA3#..DCRE,DCRL200812-201212

main25586-28090i1AZFE,2AZFE..ACA3#200511-201212

9017908228

main90179-08228

9017910165

main90179-10165

9162160822

main91621-60822

9164180835

main91641-80835

9164281025

main91642-81025

91651B0814

main91651-B0814

9211281022

main92112-81022

9415080801

main94150-80801

22 parts on this diagram · 10 diagrams in section
