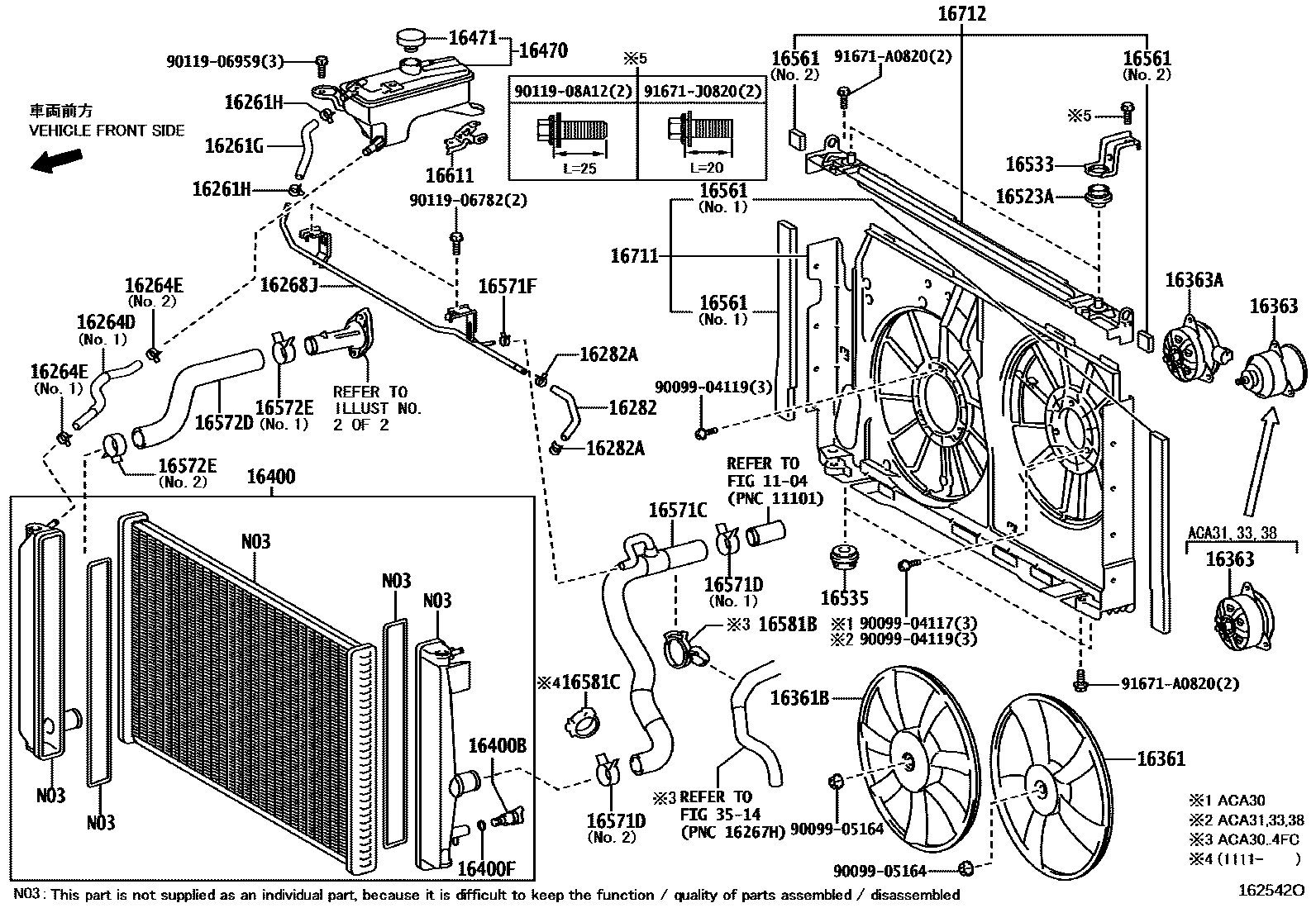

RADIATOR & WATER OUTLET
1104CYLINDER HEAD
16261HOSE, WATER BY-PASS
NO.1
NO.2
NO.2
NO.2
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
NO.1
NO.2
NO.2
NO.2
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1
NO.2
16268PIPE, WATER BY-PASS, NO.1
WITH(TOWING PACKAGE)
NO.1
NO.2
16268JPIPE, WATER BY-PASS, NO.5
16282HOSE, WATER BY-PASS, NO.5
NO.1
NO.2
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
NO.3
NO.2
NO.1
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
RH
RH & LH
LH
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
NO.1
NO.2
16571HOSE, RADIATOR, INLET
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
16571FCLAMP OR CLIP(FOR WATER HOSE)
16572HOSE, RADIATOR, OUTLET
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
16581CLAMP, HOSE(FOR WATER HOSE)
NO.1
NO.2
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
16712SHROUD, FAN, NO.2
3514OIL COOLER & TUBE (ATM)
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
9011906782
main90119-06782
9011906959
main90119-06959
9011908A12
main90119-08A12
91671A0820
main91671-A0820
91671J0820
main91671-J0820
46 parts on this diagram · 18 diagrams in section
