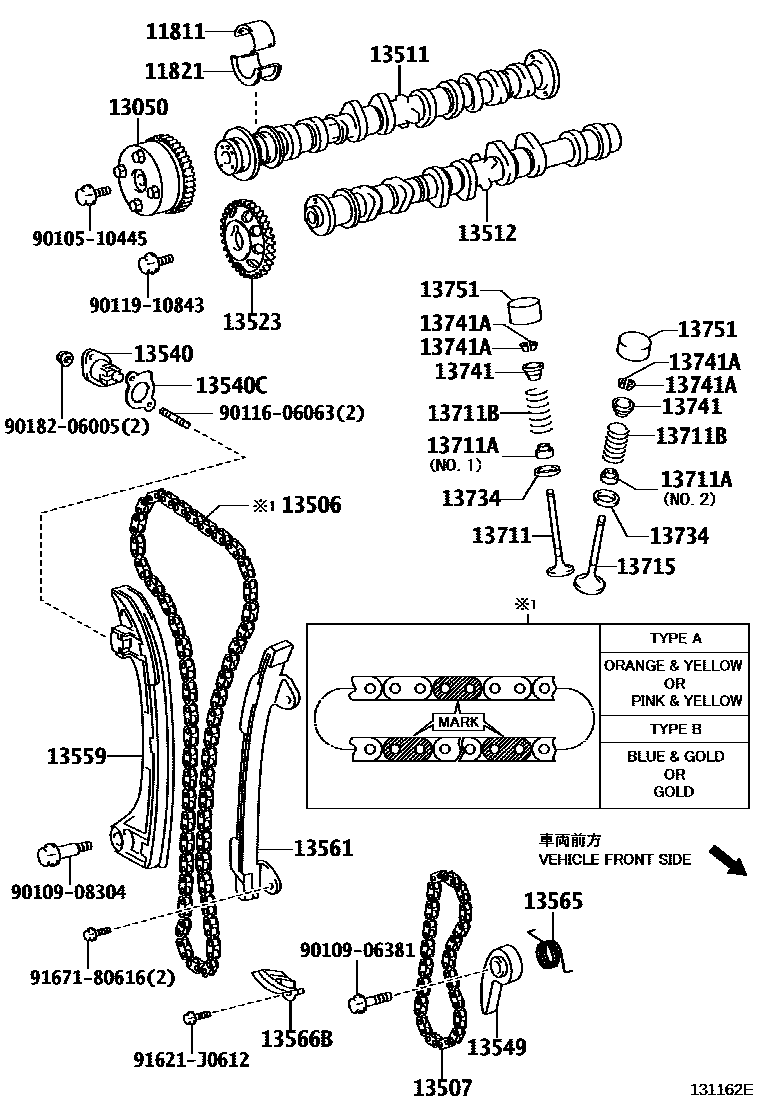

11811BEARING, CAMSHAFT, NO.1
main11811-28010-01i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 MARK 1
main11811-28010-02i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 MARK 2
main11811-28010-03i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 MARK 3
11821BEARING, CAMSHAFT, NO.2
main11821-28010-01i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 MARK 1
main11821-28010-03i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 MARK 3
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
main13506-28011i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200601-200812 TYPE A:REFER ILLUST.
main13506-28020i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 TYPE B:REFER ILLUST.
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
main13501-0H040i2AZFE..ACA31,33..G..(EUR,GCC)200511-200812 (L)
main13501-28060i2AZFE..ACA31,33..G..(EUR,GCC)200511-200812 (J)
13512CAMSHAFT, NO.2
main13502-0H030i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 (L)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
main13552-28010i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 13549PLATE, CHAIN TENSIONER
main13549-28012i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 13559SLIPPER, CHAIN TENSIONER
main13559-28010i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 13561DAMPER, CHAIN VIBRATION, NO.1
main13561-28010i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 13565SPRING, CHAIN DAMPER
main13565-28012i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 13566BGUIDE, TIMING CHAIN
main13566-28010i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 13711VALVE, INTAKE
main13711-28010×8i1AZFE..ACA30; 2AZFE..ACA31,33,38200511-200812 13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02101×8i1AZFE..ACA30; 2AZFE..ACA31,33,38200511-200812 NO.1
main90913-02112×8i1AZFE..ACA30; 2AZFE..ACA31,33,38200511-200812 NO.2
13711BSPRING, COMPRESSION(FOR INNER)
main90501-28038×16i1AZFE,2AZFE..ACA30,33,38200808-201212 13734SEAT, VALVE SPRING
main13734-74010×16i1AZFE..ACA30; 2AZFE..ACA31,33,38200511-200812 13741RETAINER, VALVE SPRING
main13741-22021×16i1AZFE..ACA30; 2AZFE..ACA31,33,38200511-200812 13741ALOCK, VALVE SPRING RETAINER
main90913-03028×32i1AZFE..ACA30; 2AZFE..ACA31,33,38200511-200812 13751LIFTER, VALVE
main13751-46030×16i1AZFE,2AZFE..ACA30,33,38200808-201212 T=5.06
main13751-46040×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.08
main13751-46050×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.10
main13751-46060×16i1AZFE,2AZFE..ACA30,33,38200808-201212 T=5.12
main13751-46070×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.14
main13751-46080×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.16
main13751-46090×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.18
main13751-46100×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.20
main13751-46110×16i1AZFE,2AZFE..ACA30,33,38200808-201212 T=5.22
main13751-46120×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.24
main13751-46130×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.26
main13751-46140×16i1AZFE,2AZFE..ACA30,33,38200808-201212 T=5.28
main13751-46150×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.30
main13751-46160×16i1AZFE,2AZFE..ACA30,33,38200808-201212 T=5.32
main13751-46170×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.34
main13751-46180×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.36
main13751-46190×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.38
main13751-46200×16i1AZFE,2AZFE..ACA30,33,38200808-201212 T=5.40
main13751-46210×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.42
main13751-46220×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.44
main13751-46230×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.46
main13751-46240×16i1AZFE,2AZFE..ACA30,33,38200808-201212 T=5.48
main13751-46250×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.50
main13751-46260×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.52
main13751-46270×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.54
main13751-46280×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.56
main13751-46290×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.58
main13751-46300×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.60
main13751-46310×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.62
main13751-46320×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.64
main13751-46330×16i2AZFE..ACA33..G..GCC;1AZFE,2AZFE..ACA30,31200511-200812 T=5.66
main13751-46340×16i1AZFE,2AZFE..ACA30,33,38200808-201212 T=5.68
main13751-46350×16i1AZFE,2AZFE..ACA30,33,38200808-201212 T=5.70
main13751-46360×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.72
main13751-46370×16i2AZFE..ACA33..X..GCC;2AZFE..ACA33,38..ARL,GEN200511-200808 T=5.74
