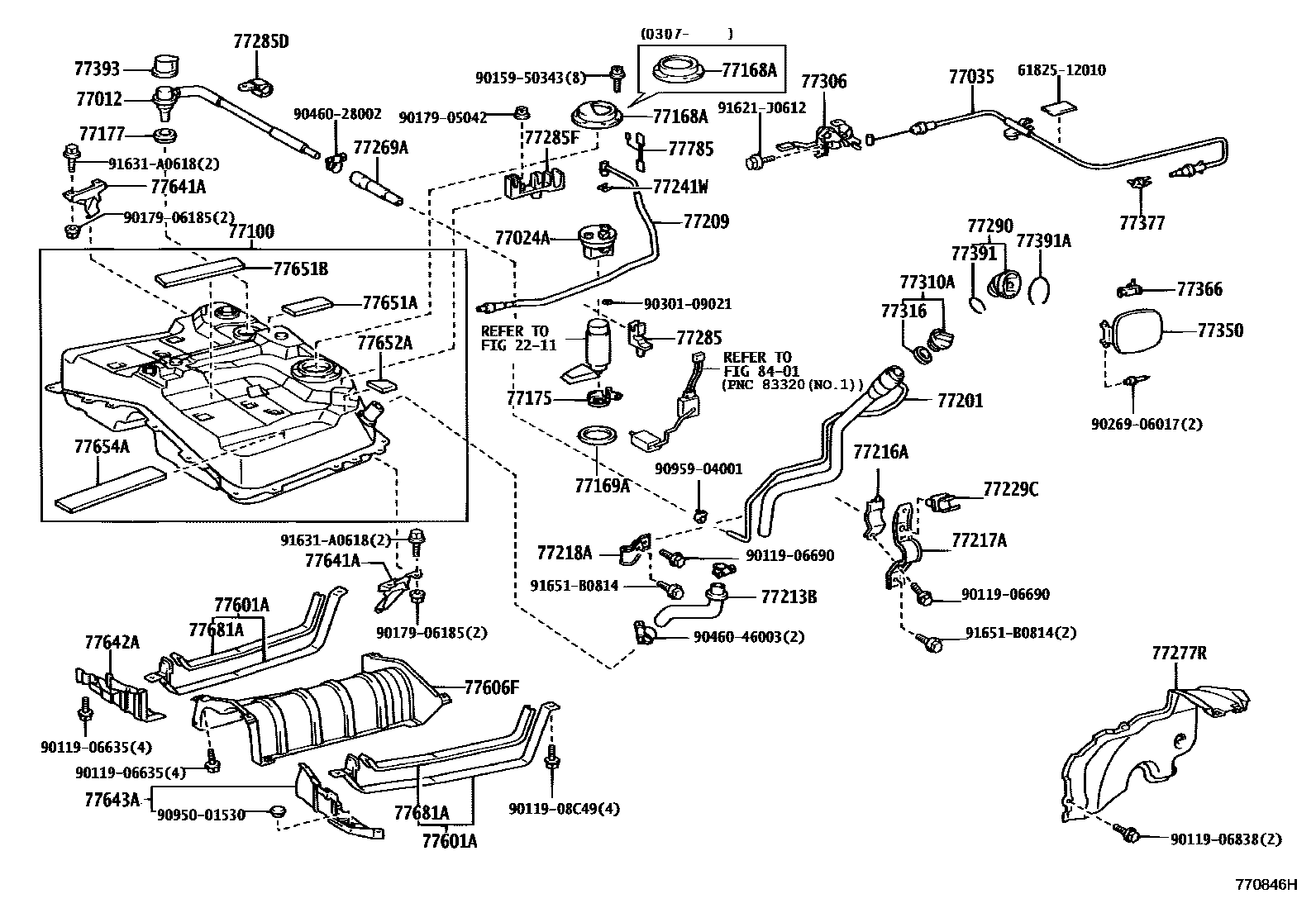

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TANK 0006 1FUEL TUBE

2211

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-42040iACA2#,CLA2#,ZCA2#200005-200307

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-42020iACA2#,ZCA2#200005-200307

main77024-42030iCLA2#200105-200307

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-42090iACA21,CLA21,ZCA26..RHD200005-200307

main77035-42100iACA21,CLA21,ZCA26..LHD200005-200307

main77035-42110iACA20,22,CLA20,ZCA25..RHD200005-200307

main77035-42120iACA20,CLA20,ZCA25..LHD200005-200307

77100TANK ASSY, FUEL

main77001-42080iACA2#,ZCA2#200005-200302

sub77001-42120

main77001-42110iCLA2#200105-200302

sub77001-42140

main77001-42120iACA2#,ZCA2#200302-200307

sub77001-42140

main77001-42140iCLA2#200302-200307

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iACA2#,CLA2#,ZCA2#200005-200107

sub77168-33050

main77168-33050iACA2#,CLA2#,ZCA2#200107-200307

main77168-52010iACA2#,CLA2#,ZCA2#200307

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iACA2#,CLA2#,ZCA2#200005-200307

77175SUPPORT, FUEL SUCTION, NO.2

main77175-52020iACA2#,ZCA2#200005-200307

77177GASKET, CHECK VALVE

main77177-33010iACA2#,CLA2#,ZCA2#200005-200307

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-42100iCLA2#;ACA2#..GCC,GEN200008-200307

sub77201-42120

main77201-42110iACA2#..RHD..GEN200008-200307

SOUTH AFRICA SPEC

sub77201-42140

main77201-42110iACA2#,ZCA2#..ARL,EUR,GCC200005-200307

sub77201-42140

main77201-42120iCLA2#;ACA21..GEN200307

main77201-42140iACA2#,ZCA2#..ARL,EUR,GCC200307

77209CONNECTOR SUB-ASSY, FUEL TUBE

main77209-42050iACA2#,ZCA2#200005-200307

main77209-42060iCLA2#200105-200307

NO.1

main77209-42070iCLA2#200105-200307

NO.2

main77209-42100iACA2#,ZCA2#200307

main77209-42120iCLA2#200307

NO.2

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-42050iACA2#,CLA2#,ZCA2#200005-200307

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-42030iACA2#,CLA2#,ZCA2#200005-200307

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-42020iACA2#,CLA2#,ZCA2#200005-200307

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-42020iACA2#,CLA2#,ZCA2#200005-200307

77229CCLAMP, BREATHER TUBE

main77229-42010iACA2#,CLA2#,ZCA2#200005-200307

77241WCLIP, TUBE JOINT

main77241-32060iACA2#,ZCA2#200005-200307

main77241-60320iCLA2#200105-200307

77269AHOSE, FUEL TANK BREATHER

main77269-42010iACA2#,CLA2#,ZCA2#200005-200307

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-42040iACA2#,CLA2#,ZCA2#200005-200307

77285BRACKET, FUEL TUBE

main77285-42020iACA2#,ZCA2#200005-200307

77285DCLAMP, FUEL TUBE, NO.1

main77285-42070iCLA2#200307

NO.2

main77286-42010iCLA2#200307

NO.1

main77286-42010iACA2#,CLA2#,ZCA2#200005-200307

77285FCLAMP, FUEL TUBE, NO.1

main77285-42030iACA2#,ZCA2#200005-200307

main77285-42070iCLA2#200105-200307

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-42020iACA2#,CLA2#,ZCA2#200005-200307

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-32010iACA2#,CLA2#,ZCA2#..RHD200005-200307

main77306-32020iACA20,21,CLA2#,ZCA2#..LHD200005-200307

77310ACAP ASSY, FUEL TANK

main77300-28010iACA20,21,ZCA2#..EUR200005-200307

main77300-60010iCLA2#200105-200307

main77310-48010iACA2#..ARL,GCC,GEN200005-200307

77316GASKET, FUEL TANK CAP

main77316-16010iACA2#,CLA2#,ZCA2#200005-200307

77350LID ASSY, FUEL FILLER OPENING

main77350-42050iACA20,CLA20,ZCA25200005-200511

main77350-42060iACA21,CLA21,ZCA26200005-200511

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30030iACA2#,ZCA2#200005-200103

sub77360-30070

main77360-30070iACA2#,CLA2#,ZCA2#200103-200307

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iACA2#,CLA2#,ZCA2#200005-200307

77391RING, FUEL INLET BOX

main77391-12020iACA2#,CLA2#,ZCA2#200005-200307

77391ARING, FUEL INLET BOX

main77391-20030iACA2#,CLA2#,ZCA2#200005-200307

77393PROTECTOR, CHECK VALVE

main77393-42010iACA2#,CLA2#,ZCA2#200005-200307

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-42050iACA2#,CLA2#,ZCA2#200005-200307

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-42020iACA2#,CLA2#,ZCA2#200005-200307

77641APROTECTOR, FUEL TANK, NO.1

main77641-42020iACA2#,CLA2#,ZCA2#200005-200307

RH

main77641-42030iACA2#,CLA2#,ZCA2#200005-200307

LH

77642APROTECTOR, FUEL TANK, NO.2

main77642-42030iACA21,CLA21,ZCA26200005-200307

main77642-42040iACA20,22,CLA20,ZCA25200005-200307

77643APROTECTOR, FUEL TANK, NO.3

main77643-42030iACA21,23,CLA21,ZCA26200005-200307

main77643-42040iACA20,CLA20,ZCA25200005-200307

77651ACUSHION, FUEL TANK, NO.1

main77653-26040iACA2#,CLA2#,ZCA2#200005-200307

77651BCUSHION, FUEL TANK

main77651-35060iACA2#,CLA2#,ZCA2#200005-200307

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iACA2#,CLA2#,ZCA2#200005-200307

77654ACUSHION, FUEL TANK, NO.4

main77654-42010iACA2#,CLA2#,ZCA2#200311

main77654-60030iACA2#,CLA2#,ZCA2#200005-200311

77681ASEAT, FUEL TANK BAND

main77682-16010iACA2#,CLA2#,ZCA2#200005-200307

77785HARNESS, FUEL PUMP

main77785-32010iACA2#,ZCA2#200005-200307

8401

6182512010PLATE, QUARTER INNER PANEL, LOWER FRONT RH

main61825-12010

9011906635

main90119-06635

9011906690

main90119-06690

9011906838

main90119-06838

9011908C49

main90119-08C49

9015950343

main90159-50343

9017905042

main90179-05042

9017906185

main90179-06185

9026906017

main90269-06017

9030109021

main90301-09021

9046028002

main90460-28002

9046046003

main90460-46003

9095001530

main90950-01530

9095904001

main90959-04001

91621J0612

main91621-J0612

91631A0618

main91631-A0618

91651B0814

main91651-B0814

61 parts on this diagram · 6 diagrams in section
