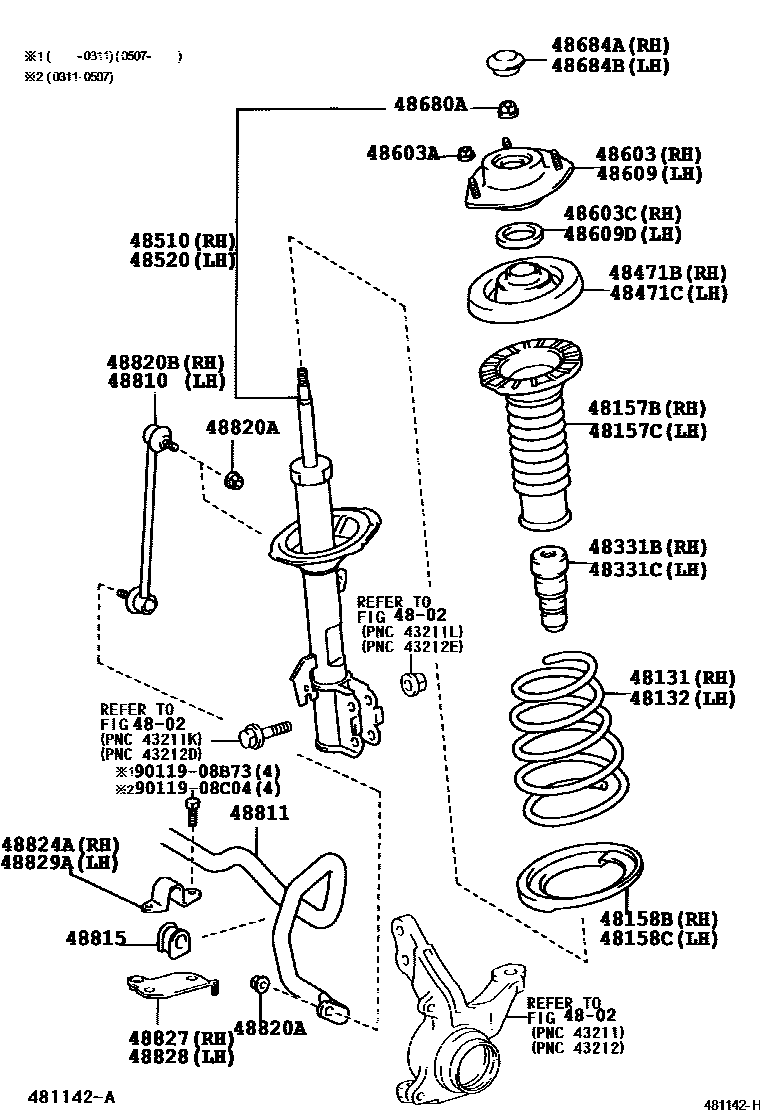

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
ORANGE PAINTED
PURPLE PAINTED
PINK PAINTED
BROWN PAINTED
RED PAINTED
BLUE PAINTED
YELLOW PAINTED
GREEN PAINTED
YELLOW GREEN PAINTED
WHITE PAINTED
PURPLE PAINTED
BROWN PAINTED
LIGHT BLUE PAINTED
BLUE PAINTED
YELLOW PAINTED
RED PAINTED
48132SPRING, FRONT COIL, LH
ORANGE PAINTED
PURPLE PAINTED
PINK PAINTED
W(MANUAL AIR CONDITIONER),BROWN PAINTED
RED PAINTED
BLUE PAINTED
YELLOW PAINTED
GREEN PAINTED
YELLOW GREEN PAINTED
WHITE PAINTED
PURPLE PAINTED
BROWN PAINTED
LIGHT BLUE PAINTED
BLUE PAINTED
YELLOW PAINTED
RED PAINTED
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48510-49695
sub48510-49515
sub48510-49705
MARK 48510-42110
MARK 48510-42130
MARK 48510-42140
MARK 48510-42150
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48520-49765
sub48520-49595
sub48520-49775
MARK 48520-42110
MARK 48520-42130
MARK 48520-42140
MARK 48520-42150
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908B73
main90119-08B73
9011908C04
main90119-08C04
32 parts on this diagram · 1 diagram in section
