SEAT & SEAT TRACK

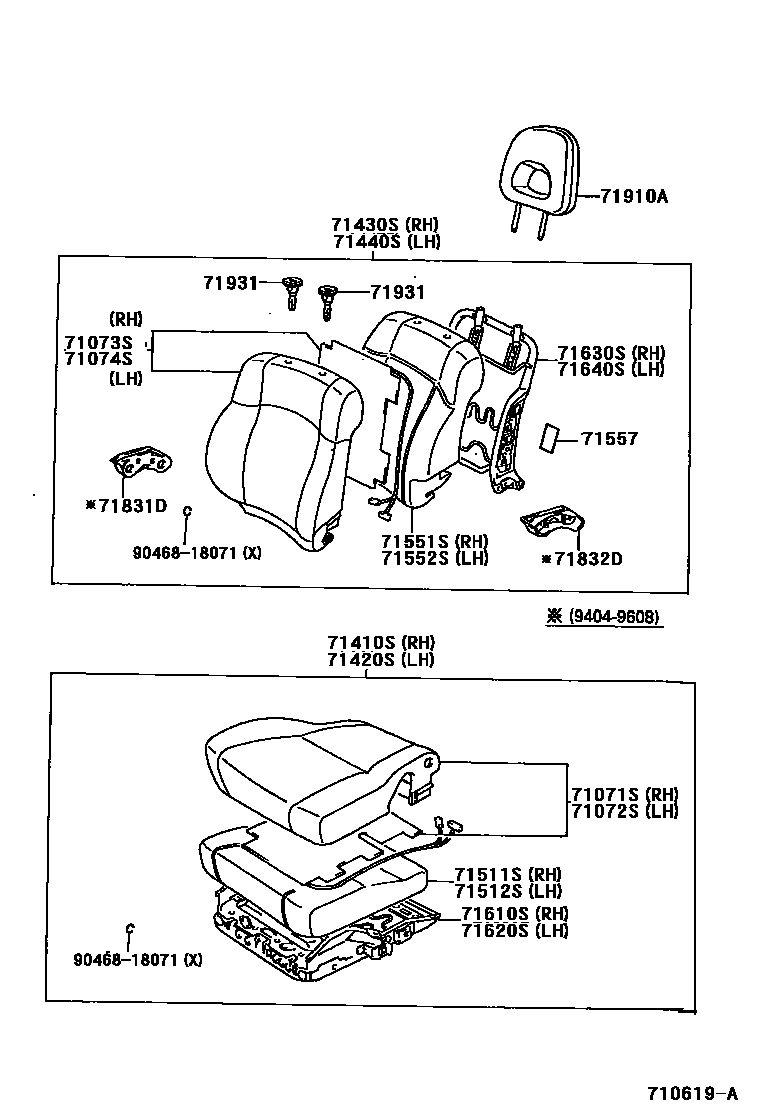

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main71071-42020-B0i199404-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71071-42030-B0i199504-199608
BLUISH GRAY,TRIM1#
main71071-42040-B0i199504-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71071-42110-B0i199608-199709
BLUISH GRAY,TRIM13
main71071-42110-B1i199608-199709
BLUISH GRAY,TRIM14
main71071-42110-B2i199709-199808
SHADOW GRAY,TRIM10
main71071-42110-B4i199709-199808
SHADOW GRAY,TRIM11
main71071-42111-B8i199808
SHADOW GRAY,TRIM10
main71071-42111-B9i199808
SHADOW GRAY,TRIM11
main71071-42120-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM13
main71071-42120-B1i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM14
main71071-42120-B2i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71071-42120-B4i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71071-42121-B6i199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71071-42121-B7i199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71071-42130-B0i199608-199709
BLUISH GRAY,TRIM15
main71071-42131-B2i199709
SHADOW GRAY,TRIM10
main71071-42131-B4i199709
SHADOW GRAY,TRIM12
main71071-42150-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71071-42151-B1i199709
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71071-42151-B3i199709
W(SEAT HEATER),SHADOW GRAY,TRIM12
main71071-42160-C0i199610-199611
BLACK,TRIM14
main71071-42160-C4i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLACK,TRIM19
main71071-42160-E7i199704-199705
LIMITED EDITION FOR EUROPE,BEIGE,TRIM19
main71071-42160-J7i199704-199705
LIMITED EDITION FOR EUROPE,BLUE,TRIM19
main71071-42160-K6i199704-199705
LIMITED EDITION FOR EUROPE,PERPLE,TRIM19; LIMITED EDITION FOR EUROPE,PURPLE,TRIM19
main71071-42160-R1i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLUE,TRIM19
main71071-42200-B0i199808
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main71071-42030-B0i199504-199608
BLUISH GRAY,TRIM1#
main71071-42110-B0i199608-199709
BLUISH GRAY,TRIM13
main71071-42110-B1i199608-199709
BLUISH GRAY,TRIM14
main71071-42110-B2i199709-199808
SHADOW GRAY,TRIM10
main71071-42110-B4i199709-199808
SHADOW GRAY,TRIM11
main71071-42111-B8i199808
SHADOW GRAY,TRIM10
main71071-42111-B9i199808
SHADOW GRAY,TRIM11
main71071-42120-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM13
main71071-42120-B1i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM14
main71071-42120-B2i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71071-42120-B4i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71071-42121-B6i199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71071-42121-B7i199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71071-42130-B0i199608-199709
BLUISH GRAY,TRIM15
main71071-42131-B2i199709
SHADOW GRAY,TRIM10
main71071-42131-B4i199709
SHADOW GRAY,TRIM12
main71071-42150-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71071-42151-B1i199709
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71071-42151-B3i199709
W(SEAT HEATER),SHADOW GRAY,TRIM12
main71071-42160-C0i199610-199611
BLACK,TRIM14
main71071-42160-C4i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLACK,TRIM19
main71071-42160-E7i199704-199705
LIMITED EDITION FOR EUROPE,BEIGE,TRIM19
main71071-42160-J7i199704-199705
LIMITED EDITION FOR EUROPE,BLUE,TRIM19
main71071-42160-K6i199704-199705
LIMITED EDITION FOR EUROPE,PERPLE,TRIM19; LIMITED EDITION FOR EUROPE,PURPLE,TRIM19
main71071-42160-R1i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLUE,TRIM19
main71071-42200-B0i199808
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71072-42010-B0i199404-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71072-42020-B0i199504-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main71073-42020-B0i199404-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71073-42030-B0i199504-199608
BLUISH GRAY,TRIM1#
main71073-42040-B0i199504-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71073-42110-B0i199608-199709
BLUISH GRAY,TRIM13
main71073-42110-B1i199608-199709
BLUISH GRAY,TRIM14
main71073-42110-B2i199709-199808
SHADOW GRAY,TRIM10
main71073-42110-B4i199709-199808
SHADOW GRAY,TRIM11
main71073-42111-B6i199812
SHADOW GRAY,TRIM10
main71073-42111-B7i199808-200008
SHADOW GRAY,TRIM11
main71073-42120-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM13
main71073-42120-B1i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM14
main71073-42120-B2i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71073-42120-B4i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71073-42121-B6i199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71073-42121-B7i199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71073-42130-B0i199608-199709
BLUISH GRAY,TRIM15
main71073-42131-B2i199709
SHADOW GRAY,TRIM10
main71073-42131-B4i199709
SHADOW GRAY,TRIM12
main71073-42150-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71073-42151-B1i199709
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71073-42151-B3i199709
W(SEAT HEATER),SHADOW GRAY,TRIM12
main71073-42160-C0i199610-199611
BLACK,TRIM14
main71073-42160-G0i199810-199811
MAGELLAN SPEC(BELGIUM),GREEN,TRIM19
main71073-42160-J0i199704-199705
LIMITED EDITION FOR EUROPE,BLUE,TRIM19
main71073-42160-K0i199704-199705
LIMITED EDITION FOR EUROPE,PERPLE,TRIM19
main71073-42160-R1i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLUE,TRIM19
main71073-42180-E0i199704-199705
LIMITED EDITION FOR EUROPE,BEIGE,TRIM19
main71073-42180-K0i199704-199705
LIMITED EDITION FOR EUROPE,PURPLE,TRIM19
main71073-42240-B0i199808
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main71073-42030-B0i199504-199608
BLUISH GRAY,TRIM1#
main71073-42110-B0i199608-199709
BLUISH GRAY,TRIM13
main71073-42110-B1i199608-199709
BLUISH GRAY,TRIM14
main71073-42110-B2i199709-199808
SHADOW GRAY,TRIM10
main71073-42110-B4i199709-199808
SHADOW GRAY,TRIM11
main71073-42111-B6i199812
SHADOW GRAY,TRIM10
main71073-42111-B7i199808
SHADOW GRAY,TRIM11
main71073-42120-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM13
main71073-42120-B1i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM14
main71073-42120-B2i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71073-42120-B4i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71073-42121-B6i199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71073-42121-B7i199808-200008
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71073-42130-B0i199608-199709
BLUISH GRAY,TRIM15
main71073-42131-B2i199709
SHADOW GRAY,TRIM10
main71073-42131-B4i199709
SHADOW GRAY,TRIM12
main71073-42150-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71073-42151-B1i199709
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71073-42151-B3i199709
W(SEAT HEATER),SHADOW GRAY,TRIM12
main71073-42160-C0i199610-199611
BLACK,TRIM14
main71073-42160-G0i199901-199902
MAX CAMPAIGN(AUSTRALIA),GREEN,TRIM19
main71073-42160-J0i199704-199705
LIMITED EDITION FOR EUROPE,BLUE,TRIM19
main71073-42160-K0i199704-199705
LIMITED EDITION FOR EUROPE,PERPLE,TRIM19
main71073-42160-R1i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLUE,TRIM19
main71073-42180-E0i199704-199705
LIMITED EDITION FOR EUROPE,BEIGE,TRIM19
main71073-42180-K0i199704-199705
LIMITED EDITION FOR EUROPE,PURPLE,TRIM19
main71073-42240-B0i199808
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71074-42010-B0i199404-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71074-42020-B0i199504-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main71410-42020-B0i199404-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-42030-B0i199504-199608
BLUISH GRAY,TRIM1#
main71410-42040-B0i199504-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-42110-B0i199608-199709
BLUISH GRAY,TRIM13
main71410-42110-B1i199608-199709
BLUISH GRAY,TRIM14
main71410-42110-B2i199709-199808
SHADOW GRAY,TRIM10
main71410-42110-B4i199709-199808
SHADOW GRAY,TRIM11
main71410-42111-B8i199808
SHADOW GRAY,TRIM10
main71410-42111-B9i199808
SHADOW GRAY,TRIM11
main71410-42120-B0i199608-199709
BLUISH GRAY,TRIM1#
main71410-42121-B2i199709
SHADOW GRAY,TRIM10
main71410-42121-B4i199709
SHADOW GRAY,TRIM12
main71410-42140-C0i199704-199705
LIMITED EDITION FOR EUROPE,BLACK,TRIM19
main71410-42140-C4i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLACK,TRIM19
main71410-42140-E0i199704-199705
LIMITED EDITION FOR EUROPE,BEIGE,TRIM19
main71410-42140-K6i199704-199705
LIMITED EDITION FOR EUROPE,PERPLE,TRIM19; LIMITED EDITION FOR EUROPE,PURPLE,TRIM19
main71410-42140-R1i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLUE,TRIM19
main71410-42160-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM13
main71410-42160-B1i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM14
main71410-42160-B2i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71410-42160-B4i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71410-42161-B6i199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71410-42161-B7i199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71410-42170-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-42171-B1i199709
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71410-42171-B3i199709
W(SEAT HEATER),SHADOW GRAY,TRIM12
main71410-42190-B0i199808
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main71410-42030-B0i199504-199608
BLUISH GRAY,TRIM1#
main71410-42110-B0i199608-199709
BLUISH GRAY,TRIM13
main71410-42110-B1i199608-199709
BLUISH GRAY,TRIM14
main71410-42110-B2i199709-199808
SHADOW GRAY,TRIM10
main71410-42110-B4i199709-199808
SHADOW GRAY,TRIM11
main71410-42111-B8i199808
SHADOW GRAY,TRIM10
main71410-42111-B9i199808
SHADOW GRAY,TRIM11
main71410-42120-B0i199608-199709
BLUISH GRAY,TRIM1#
main71410-42121-B2i199709
SHADOW GRAY,TRIM10
main71410-42121-B4i199709
SHADOW GRAY,TRIM12
main71410-42140-C0i199704-199705
LIMITED EDITION FOR EUROPE,BLACK,TRIM19
main71410-42140-C4i199810-199811
MAGELLAN SPEC(BELGIUM),BLACK,TRIM19
main71410-42140-E0i199704-199705
LIMITED EDITION FOR EUROPE,BEIGE,TRIM19
main71410-42140-K6i199704-199705
LIMITED EDITION FOR EUROPE,PERPLE,TRIM19; LIMITED EDITION FOR EUROPE,PURPLE,TRIM19
main71410-42140-R1i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLUE,TRIM19
main71410-42160-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM13
main71410-42160-B1i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM14
main71410-42160-B2i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71410-42160-B4i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71410-42161-B6i199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71410-42161-B7i199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71410-42170-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71410-42171-B1i199709
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71410-42171-B3i199709
W(SEAT HEATER),SHADOW GRAY,TRIM12
main71410-42190-B0i199808
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71420-42010-B0i199404-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71420-42020-B0i199504-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main71430-42020-B0i199404-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-42030-B0i199504-199608
BLUISH GRAY,TRIM1#
main71430-42040-B0i199504-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-42110-B0i199608-199709
BLUISH GRAY,TRIM13
main71430-42110-B1i199608-199709
BLUISH GRAY,TRIM14
main71430-42110-B2i199709-199808
SHADOW GRAY,TRIM10
main71430-42110-B4i199709-199808
SHADOW GRAY,TRIM11
main71430-42111-B6i199808
SHADOW GRAY,TRIM10
main71430-42111-B7i199808
SHADOW GRAY,TRIM11
main71430-42120-B0i199608-199709
BLUISH GRAY,TRIM1#
main71430-42121-B2i199709
SHADOW GRAY,TRIM10
main71430-42121-B4i199709
SHADOW GRAY,TRIM12
main71430-42140-E0i199704-199705
LIMITED EDITION FOR EUROPE,BEIGE,TRIM19
main71430-42140-G0i199810-199811
MAGELLAN SPEC(BELGIUM),GREEN,TRIM19
main71430-42140-K0i199704-199705
LIMITED EDITION FOR EUROPE,PERPLE,TRIM19
main71430-42140-R1i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLUE,TRIM19
main71430-42160-E0i199704-199705
LIMITED EDITION FOR EUROPE,BEIGE,TRIM19
main71430-42160-K0i199704-199705
LIMITED EDITION FOR EUROPE,PURPLE,TRIM19
main71430-42180-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM13
main71430-42180-B1i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM14
main71430-42180-B2i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71430-42180-B4i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71430-42181-B6i199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71430-42181-B7i199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71430-42190-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-42191-B1i199709
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71430-42191-B3i199709
W(SEAT HEATER),SHADOW GRAY,TRIM12
main71430-42230-B0i199808
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-42010-B0i199404-199608
BLUISH GRAY,TRIM1#
main71430-42030-B0i199504-199608
BLUISH GRAY,TRIM1#
main71430-42110-B0i199608-199709
BLUISH GRAY,TRIM13
main71430-42110-B1i199608-199709
BLUISH GRAY,TRIM14
main71430-42110-B2i199709-199808
SHADOW GRAY,TRIM10
main71430-42110-B4i199709-199808
SHADOW GRAY,TRIM11
main71430-42111-B6i199808
SHADOW GRAY,TRIM10
main71430-42111-B7i199808
SHADOW GRAY,TRIM11
main71430-42120-B0i199608-199709
BLUISH GRAY,TRIM1#
main71430-42121-B2i199709
SHADOW GRAY,TRIM10
main71430-42121-B4i199709
SHADOW GRAY,TRIM12
main71430-42140-E0i199704-199705
LIMITED EDITION FOR EUROPE,BEIGE,TRIM19
main71430-42140-G0i199901-199902
MAX CAMPAIGN(AUSTRALIA),GREEN,TRIM19
main71430-42140-K0i199704-199705
LIMITED EDITION FOR EUROPE,PERPLE,TRIM19
main71430-42140-R1i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLUE,TRIM19
main71430-42160-E0i199704-199705
LIMITED EDITION FOR EUROPE,BEIGE,TRIM19
main71430-42160-K0i199704-199705
LIMITED EDITION FOR EUROPE,PURPLE,TRIM19
main71430-42180-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM13
main71430-42180-B1i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM14
main71430-42180-B2i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71430-42180-B4i199709-199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71430-42181-B6i199808
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71430-42181-B7i199808
W(SEAT HEATER),SHADOW GRAY,TRIM11
main71430-42190-B0i199608-199709
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71430-42191-B1i199709
W(SEAT HEATER),SHADOW GRAY,TRIM10
main71430-42191-B3i199709
W(SEAT HEATER),SHADOW GRAY,TRIM12
main71430-42230-B0i199808
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71440-42010-B0i199404-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
main71440-42020-B0i199504-199608
W(SEAT HEATER),BLUISH GRAY,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-42010i199404-199608
main71511-42020i199608-199808
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-42010i199404-199608
main71511-42020i199808-199812
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-42010i199404-199608
main71551-42020i199608-199709
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-42010i199404-199608
main71551-42020i199608-199709
71557CLOTH, FRONT SEATBACK UNDER
main71557-42030×4i199812
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-42010i199404-199608
main71610-42020i199608-199808
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-42010i199404-199608
main71610-42020i199608-199808
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-42010i199404-199608
main71630-42020i199608-199808
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-42010i199404-199608
main71630-42020i199608-199808
71831DCOVER, FRONT SEAT HINGE, RH
main71831-20030×2i199404-199608
71832DCOVER, FRONT SEAT HINGE, LH
main71832-20010×2i199404-199608
71910AHEADREST ASSY, FRONT SEAT
main71910-42010-B0×2i199404-199608
BLUISH GRAY,TRIM1#
main71910-42011-B5×2i199608-199709
SHADOW GRAY,TRIM1#
main71910-42031-C0×2i199704-199705
LIMITED EDITION FOR EUROPE,BLACK,TRIM19
main71910-42031-G0×2i199611-199612
LIMITED EDITION FOR '97 SPRING CAMPAIGN,GREEN,TRIM1#
main71910-42040-B0×2i199709
DARK CHARCOAL,TRIM12
main71910-42040-B1×2i199709
BLUISH GRAY,TRIM10; BLUISH GRAY,TRIM10,11
main71910-42040-C0×2i199901-199902
MAX CAMPAIGN(AUSTRALIA),BLACK,TRIM19
71931SUPPORT, FRONT SEAT HEADREST
main71930-10070-P0×2i199404-199501
W(LOCK),SHADOW GRAY,TRIM1#
main71930-44010-B1×2i199808-200008
W(LOCK),SHADOW GRAY,TRIM1#,10,12; W(LOCK),SHADOW GRAY,TRIM10,11,12; W(LOCK),SHADOW GRAY,TRIM10,12
main71931-10020-P0×2i199404-199501
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-12040-B0×2i199808-200008
W/O(LOCK),SHADOW GRAY,TRIM1#,10,12; W/O(LOCK),SHADOW GRAY,TRIM10,11,12; W/O(LOCK),SHADOW GRAY,TRIM10,12
main71931-32020-B0×2i199501-199608
W/O(LOCK),SHADOW GRAY,TRIM1#
9046818071
main90468-18071

22 parts on this diagram · 6 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
