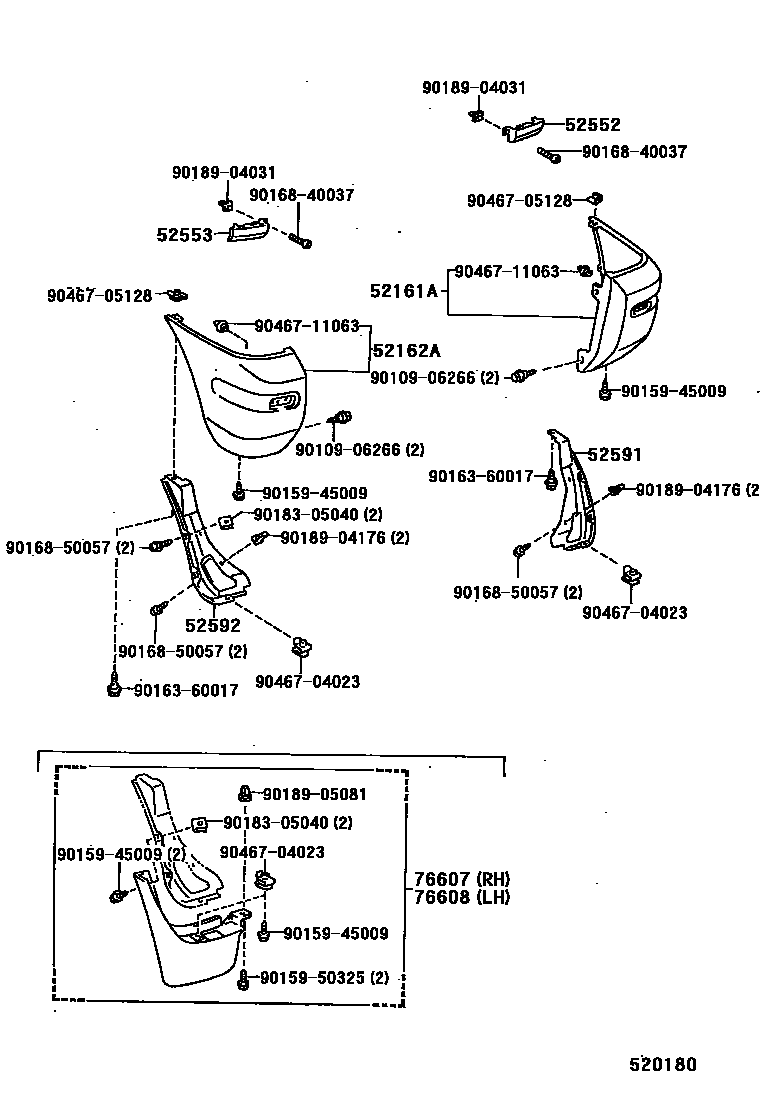

REAR BUMPER & BUMPER STAY
52161APIECE, REAR BUMPER, RH
UNPAINTED
UNPAINTED
MIEDIUM GRAY M.,K59 ,K61 ,K62 ,K65 ,K67 ,K69 ,K71
SILVER ME.,KA1 ,KA2 ,K98
WARM GRAY ME.,K66 ,K68
UNPAINTED & W(OVER FENDER)
UNPAINTED & W(OVER FENDER)
52162APIECE, REAR BUMPER, LH
UNPAINTED
UNPAINTED
MIEDIUM GRAY M.,K59 ,K62 ,K65 ,K67 ,K69 ,K71
SILVER ME.,KA1 ,KA2 ,K98
WARM GRAY ME.,K66 ,K68
UNPAINTED & W(OVER FENDER)
UNPAINTED & W(OVER FENDER)
52552FILLER, REAR BUMPER, RH
52553FILLER, REAR BUMPER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
FINLAND SPEC
HONG KONG SPEC
SWITZERLAND SPEC
W(235/60R16 TIRE)
THE UNITED KINGDOM SPEC
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
FINLAND SPEC
HONG KONG SPEC
W(HOOD SWITCH)
W(235/60R16 TIRE)
9010906266
main90109-06266
9015945009
main90159-45009
9015950325
main90159-50325
9016360017
main90163-60017
9016840037
main90168-40037
9016850057
main90168-50057
9018305040
main90183-05040
9018904031
main90189-04031
9018904176
main90189-04176
9018905081
main90189-05081
9046704023
main90467-04023
9046705128
main90467-05128
9046711063
main90467-11063
21 parts on this diagram · 2 diagrams in section
