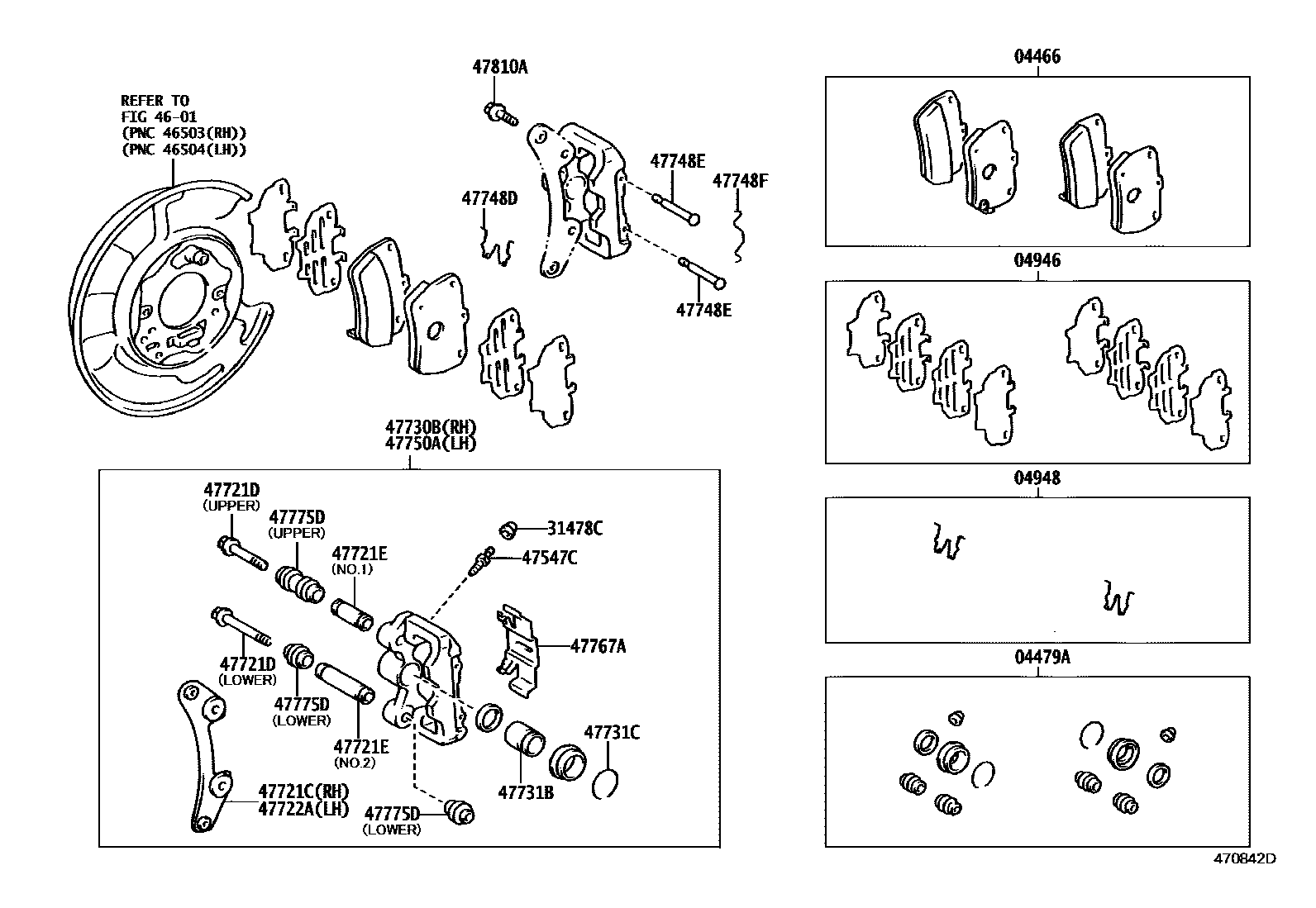

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-42010iSXA1#..ARL199808

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42020iSXA1#..ARL199808

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-42010iSXA1#..ARL199808

04948FITTING KIT, DISC BRAKE, REAR

main04948-42010iSXA1#..ARL199808

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iSXA1#..ARL199808

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020×2iSXA1#..ARL199808

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-42020iSXA1#..ARL199808

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10427×2iSXA1#..ARL199808

*10-1.25PX56-15,UPPER

main90105-10428×2iSXA1#..ARL199808

*10-1.25PX71.5-15,LOWER

47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)

main90389-10045×2iSXA1#..ARL199808-200001

NO.2

main90389-10046×2iSXA1#..ARL199808-200001

NO.1

main90389-10053×2iSXA1#..ARL200001

NO.2

main90389-10054×2iSXA1#..ARL200001

NO.1

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-42020iSXA1#..ARL199808

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-42020iSXA1#..ARL199808

47731BPISTON, REAR DISC BRAKE

main47731-42020×2iSXA1#..ARL199808

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-37016×2iSXA1#..ARL199808

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-42010×2iSXA1#..ARL199808

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main90240-06021×4iSXA1#..ARL199808

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12025×2iSXA1#..ARL199808

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-42020iSXA1#..ARL199808

47767APROTECTOR, REAR DISC BRAKE PAD

main47767-42010×2iSXA1#..ARL199808

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020×2iSXA1#..ARL199808

UPPER

main47775-42010×4iSXA1#..ARL199808

LOWER

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10157×4iSXA1#..ARL199808

21 parts on this diagram · 1 diagram in section
