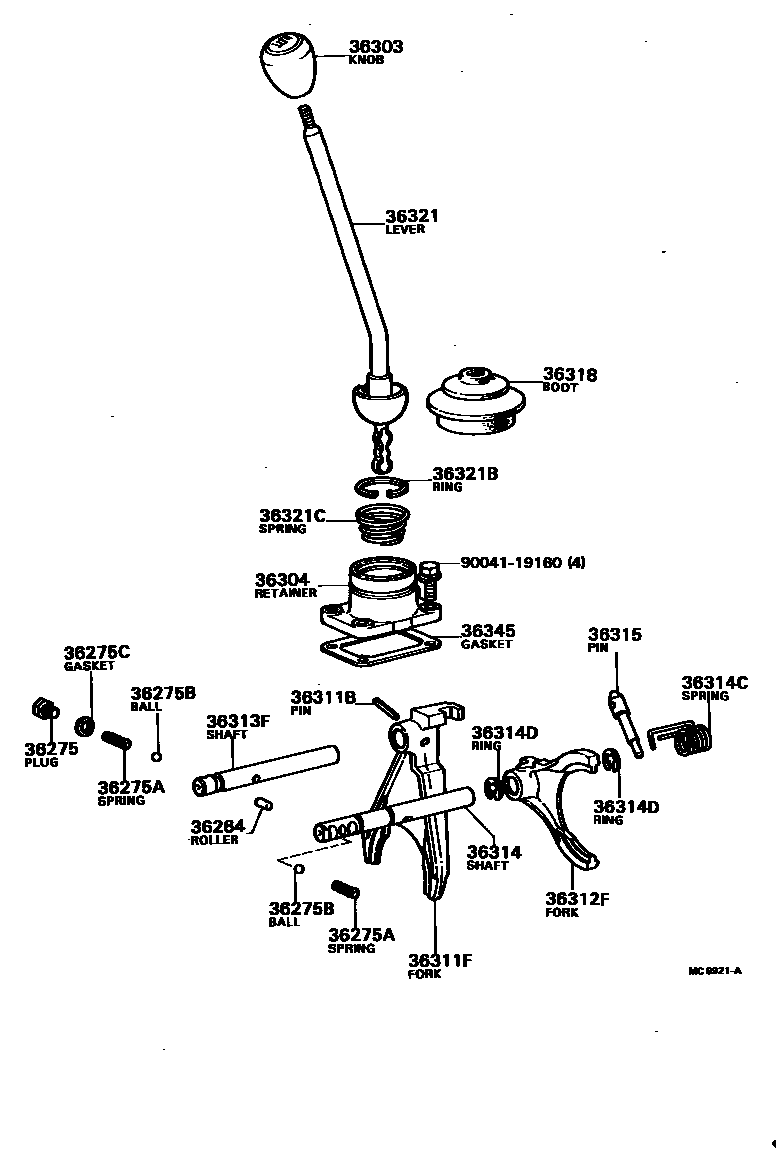

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90043-61012iLD10198201-198404

36275PLUG, SHIFT DETENT BALL SPRING

main90041-01216iLD10198201-198404

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90045-01137iLD10198201-198404

36275BBALL, SHIFT DETENT

main90043-60003iLD10198201-198404

36275CGASKET (FOR SHIFT DETENT BALL SPRING PLUG)

main90044-30026iLD10198201-198404

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-87601iLD10198201-198404

sub36303-87602

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36107-87604iLD10198201-198404

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90042-54021iLD10198210-198404

main90042-54022iLD10198201-198210

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-87603iLD10198201-198210

main36311-87604iLD10198210-198404

sub36311-87605

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-87605iLD10198201-198404

sub36312-87606

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-87602iLD10198201-198210

main36313-87603iLD10198210-198404

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-87605iLD10198201-198404

sub36314-87606

36314CSPRING (FOR TRANSFER SHIFT FORK SHAFT)

main90045-08131iLD10198201-198404

36314DRING, E (FOR TRANSFER SHIFT FORK SHAFT)

main96160-01200iLD10198201-198404

36315PIN, TRANSFER FORK SHAFT

main36315-87601iLD10198201-198210

sub36315-87602

main36315-87602iLD10198210-198404

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-87602iLD10198201-198404

36321LEVER, TRANSFER FRONT DRIVE SHIFT

main36321-87605iLD10198201-198210

main36321-87609iLD10198210-198404

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90045-21030iLD10198201-198404

36321CSPRING, CONICAL (FOR TRANSFER FRONT DRIVE SHIFT)

main90045-02014iLD10198201-198404

sub90045-02042

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36164-87601iLD10198201-198404

9004119160

main90041-19160

21 parts on this diagram · 2 diagrams in section
