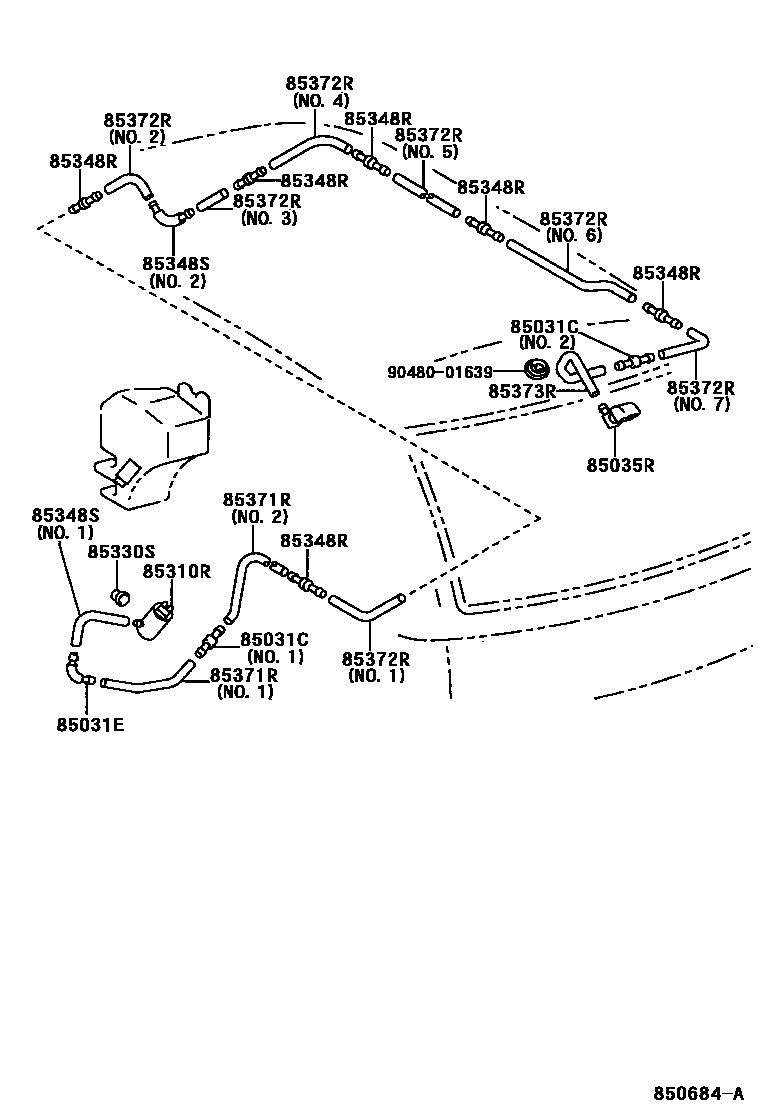

REAR WASHER
85031CVALVE SUB-ASSY, WASHER
85031EVALVE SUB-ASSY REAR WASHER, NO.2
85035RNOZZLE SUB-ASSY, REAR WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
NO.1
NO.2
NO.1
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=600)
L=1450(*H,L=570)
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
L=1450(*H,L=250),NO.3
L=150,NO.5
L=1450(*H,L=820)
L=1450(*H,L=230),NO.5
L=3300(*H,L=2820),NO.4
L=3300(*H,L=2280),NO.6
L=2830,NO.4
L=2120,NO.6
L=3010,NO.6
L=3000
L=3300(*H,L=2850),NO.4
L=3490,NO.6
L=1800(*H,L=700),NO.1,NO.4
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=250)
9048001639
main90480-01639
11 parts on this diagram · 2 diagrams in section
