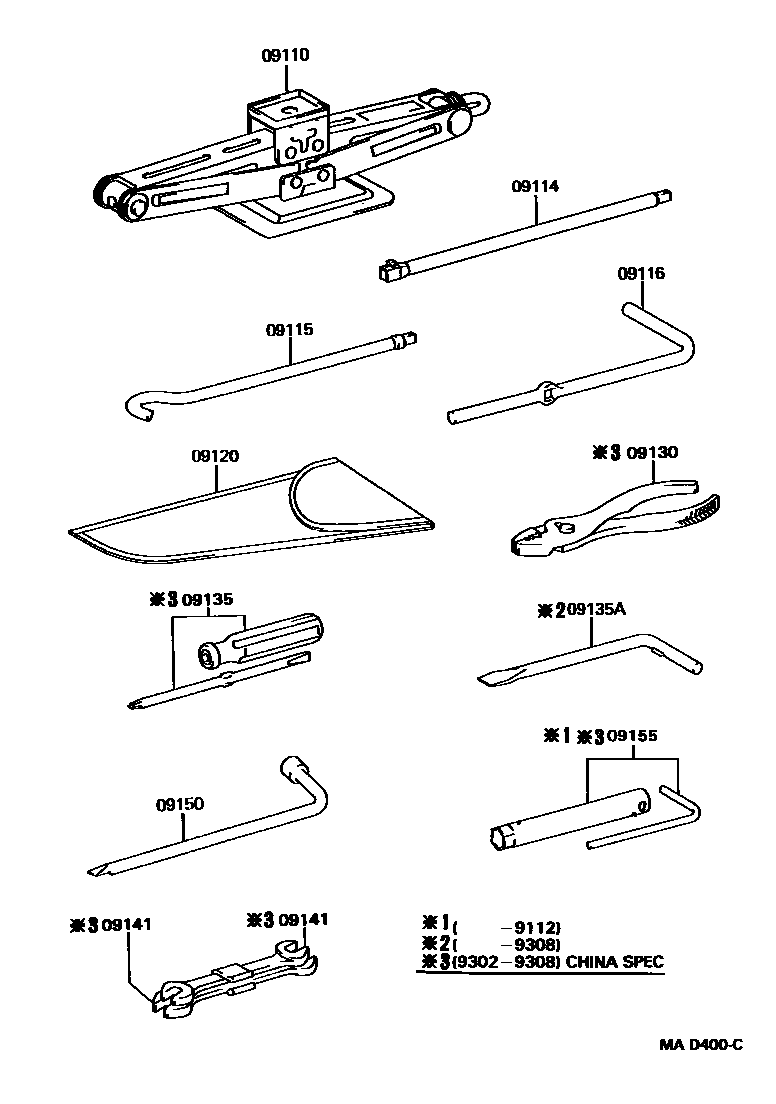

STANDARD TOOL

09110JACK ASSY

main09110-28110iTCR10,20199606-199707

main09111-28050iTCR10,20199001-199606

sub09110-28110

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-28010iTCR10,20199210-199610

main09114-60050iTCR10,20199001-199210

sub09114-28010

main09114-60070iTCR10,20199610-199707

09115ROD SUB-ASSY, JACK HANDLE

main09115-28030iTCR10,20199001-199707

09116LEVER, JACK HANDLE

main09116-35041iTCR10,20199001-199610

main09116-60010iTCR10,20199610-199707

09120BAG, TOOL

main09120-22030iTCR10,20199308-199707

main09120-28020iTCR10,20199002-199308

main09120-32010iTCR10,20199001-199002

09130PLIERS

main99913-11500iTCR10..07S..USA199302-199308

CHINA SPEC

09135DRIVER, SCREW

main99915-10700iTCR10..07S..USA199302-199308

CHINA SPEC

09135ABIT, SCREW DRIVER

main09135-00012iTCR10..07S199001-199308

09141SPANNER

main99914-10810iTCR10..07S..USA199302-199308

8 X 10,CHINA SPEC

main99914-11214iTCR10..07S..USA199302-199308

12 X 14,CHINA SPEC

09150WRENCH, HUB NUT BOX

main09150-40010iTCR10,20199001-199707

09155WRENCH, SPARK PLUG

main09155-74010iTCR10,20199001-199112

main09155-74010iTCR10..07S..USA199302-199308

CHINA SPEC

11 parts on this diagram · 1 diagram in section
