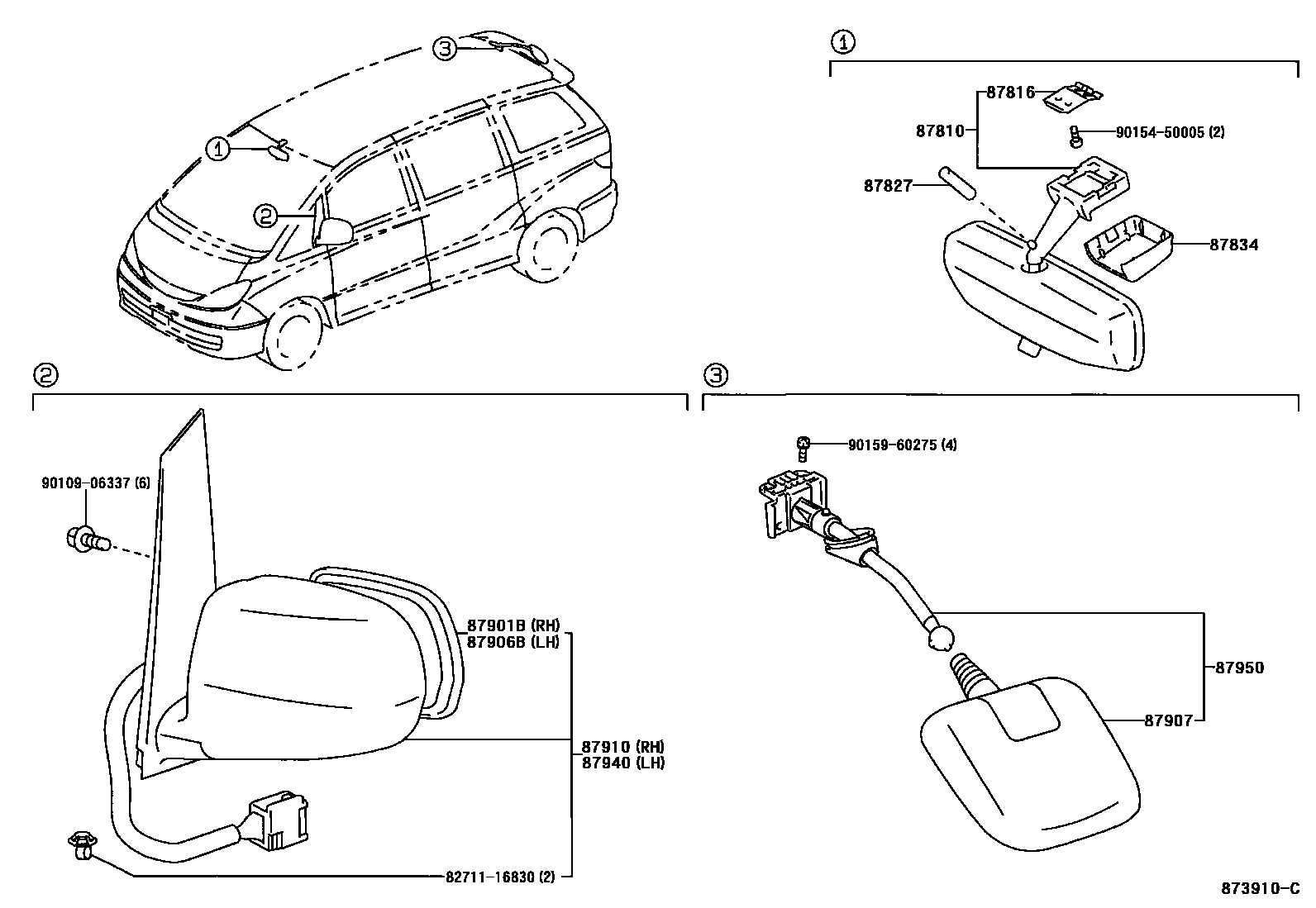

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-14170-B3iACR30,CLR30200002-200304

DK.CHARCOAL,TRIM12

main87810-14170-B5iACR30,CLR30200002-200304

BLUISH GRAY,TRIM11

main87810-14170-B6iACR30,CLR30200304-200601

DK.GRAY,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iACR30,CLR30200002-200304

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-32010iACR30,CLR30200002-200304

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-B3iACR30,CLR30200002-200304

LT.BLUISH GRAY,TRIM11

main87834-20080-B5iACR30,CLR30200002-200304

MD.CHARCOAL,TRIM12

main87834-20080-B6iACR30,CLR30200304-200601

LIGHT GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-28560iACR30..(07S,08S)..DX..(EUR,GEN)200002-200102

main87931-28570iACR30..08S..ATM..EUR;ACR30,CLR30..07S..EUR; ACR30..GEN;ACR30,CLR30..06S200304

HEATER MIRROR

main87931-28600iACR30..DX..ARL200002-200304

main87931-28630iACR30..GL..ARL200002-200304

main87931-28730iACR30..GCC200304

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-28560iACR30..(07S,08S)..DX200002-200102

main87961-28570iACR30,CLR30..(07S,08S)..EUR; ACR30,CLR30..06S;ACR30..GL..(ARL,GEN)200002-200304

HEATER MIRROR

main87961-28710iACR30..GCC200304

87907MIRROR SUB-ASSY, OUTER UNDER VIEW

main87907-28010iACR30..RHD..ATM..EUR200304

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-28550iACR30..RHD..(07S,08S)..EUR200002-200102

main87910-28570iACR30..RHD..(07S,08S)..EUR; ACR30..RHD..06S200002-200102

HEATER MIRROR

main87910-28571iACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR200304

HEATER MIRROR

main87910-28580iACR30..LHD..(07S,08S)..DX200002-200102

main87910-28581iACR30,CLR30..LHD..(07S,08S)..DX..(EUR,GEN)200102-200304

main87910-28590iACR30..GL..GEN;ACR30..LHD..06S; ACR30..LHD..(07S,08S)..EUR200002-200102

HEATER MIRROR

main87910-28591iACR30,CLR30..LHD..(07S,08S)..EUR200102-200304

HEATER MIRROR

main87910-28600iACR30..DX..ARL200002-200102

main87910-28601iACR30..ARL200304

main87910-28630iACR30..GL..ARL200002-200102

main87910-28631iACR30..GL..ARL200102-200304

main87910-28640iACR30,CLR30..RHD..(07S,08S)..EUR200102-200304

main87910-28650iACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR200304

RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87910-28660iACR30..GL..GEN;ACR30,CLR30..LHD..EUR200102-200304

RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87910-28730iACR30..GCC200304

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-28550iACR30..RHD..(07S,08S)..DX200002-200102

main87940-28570iACR30..GL..ARL;ACR30..RHD..06S; ACR30..RHD..(07S,08S)..EUR200002-200102

HEATER MIRROR

main87940-28571iACR30..GL..ARL;ACR30,CLR30..RHD..(07S,08S)..EUR200102-200304

HEATER MIRROR

main87940-28580iACR30..LHD..(07S,08S)..DX200002-200102

main87940-28581iACR30,CLR30..LHD..(07S,08S)..DX..(EUR,GEN)200102-200304

main87940-28590iACR30..GL..GEN;ACR30..LHD..06S; ACR30..LHD..(07S,08S)..EUR200002-200102

HEATER MIRROR

main87940-28591iACR30,CLR30..LHD..07S..EUR200304

HEATER MIRROR

main87940-28620iACR30..ARL200304

main87940-28630iACR30,CLR30..RHD..EUR200102-200304

RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87940-28640iCLR30..LHD..08S200304-200404

RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87940-28710iACR30..GCC200304

87950MIRROR ASSY, OUTER UNDER REAR VIEW

main87950-28100iACR30..RHD..(07S,08S)..ATM..EUR200002-200304

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9010906337

main90109-06337

9015450005

main90154-50005

9015960275

main90159-60275

14 parts on this diagram · 1 diagram in section
