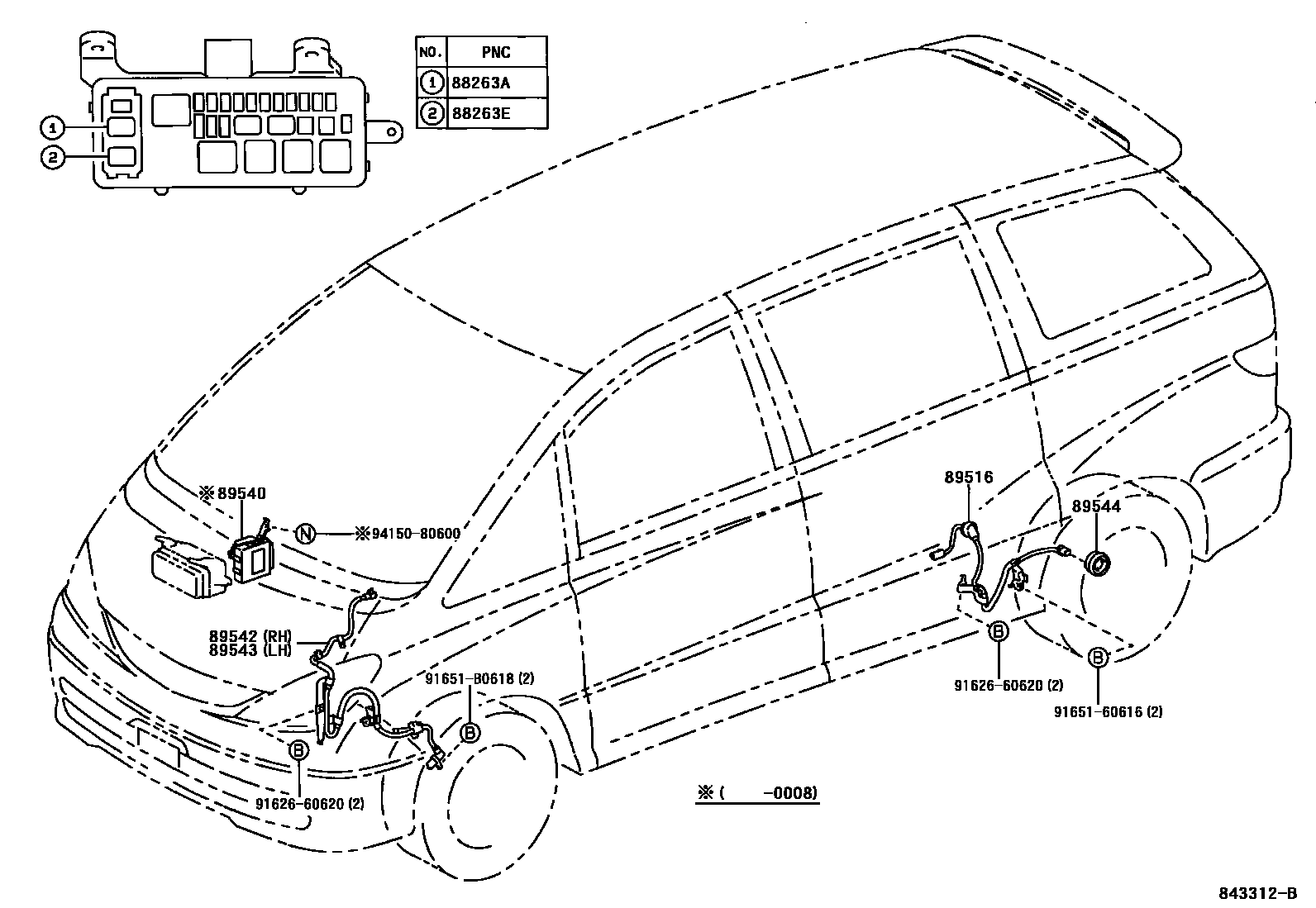

ABS & VSC

0001 1 0002 1 0003 1 0004 1 0005 1

88263ARELAY, SKID CONTROL

main88263-32070iACR30200002-200008

88263ERELAY, SKID CONTROL NO.2

main88263-32080iACR30200002-200008

89516WIRE, SKID CONTROL SENSOR

main89516-28010iACR30,CLR30200002-200304

RH

main89516-28020iACR30,CLR30200304-200601

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-28360iACR30..RHD200002-200008

main89540-28370iACR30..LHD200002-200008

main89540-28460iACR30..RHD..EUR200304-200601

main89540-28470iACR30..LHD..EUR200304-200601

main89540-28480iCLR30..RHD200304-200601

main89540-28490iCLR30..LHD200304-200601

89542SENSOR, SPEED, FRONT RH

main89542-28090iACR30,CLR30200304-200601

89543SENSOR, SPEED, FRONT LH

main89543-28090iACR30,CLR30200002-200304

89544SENSOR, SKID CONTROL

main89544-20010×2iACR30,CLR30200304-200601

main89544-47010×2iACR30,CLR30200002-200304

9162660620

main91626-60620

9165160616

main91651-60616

91651B0618

main91651-B0618

9415080600

main94150-80600

11 parts on this diagram · 5 diagrams in section
