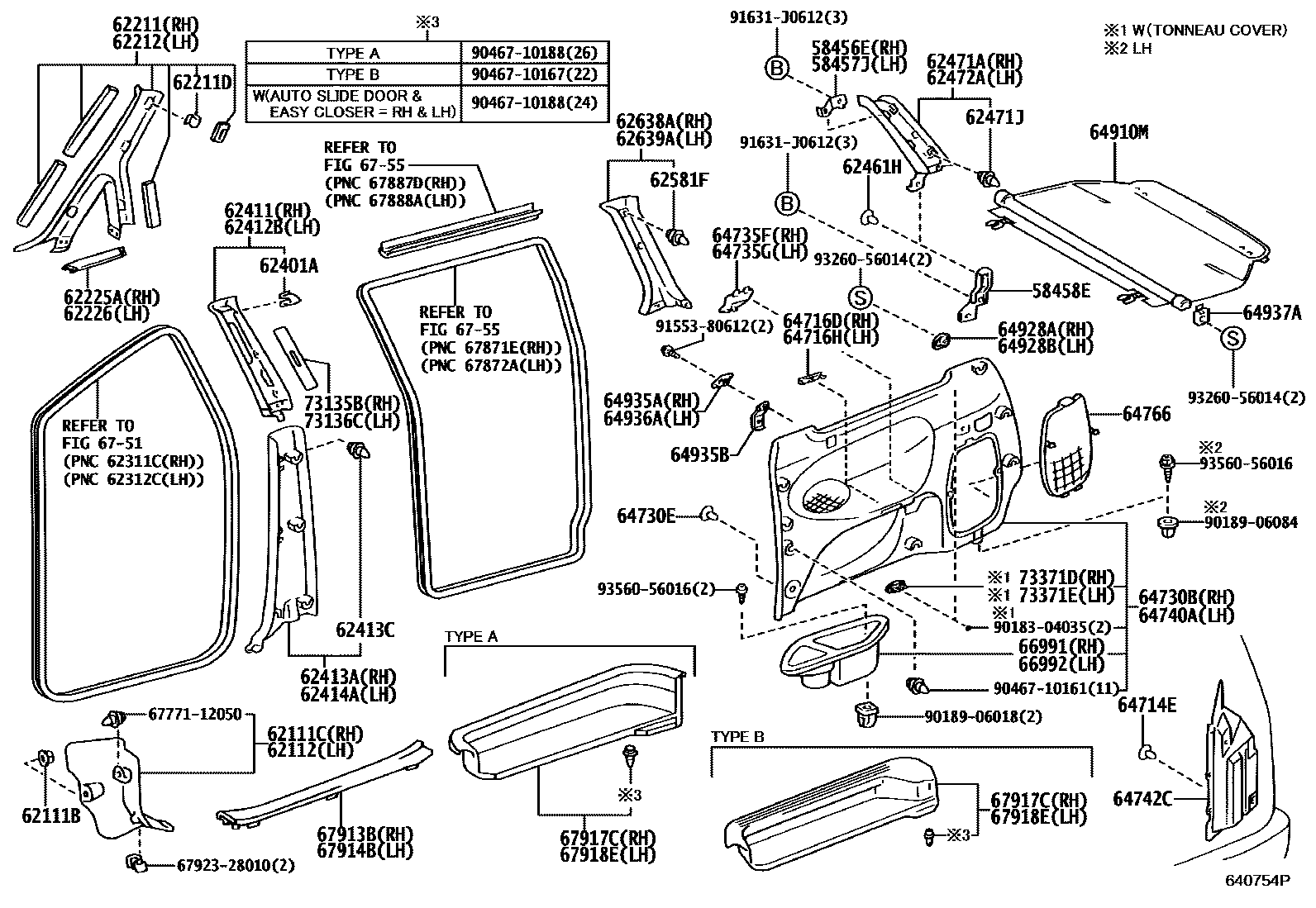

INSIDE TRIM BOARD
58456EBRACKET, REAR GARNISH, NO.1 RH
58457JBRACKET, REAR GARNISH, NO.1 LH
58458EBRACKET, REAR GARNISH, NO.2 RH
62111BCLIP(FOR COWL SIDE TRIM)
LT.GRAY,TRIM11,12
MD.GRAY,TRIM1#
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62211GARNISH, FRONT PILLAR, RH
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
62225AGARNISH, FRONT PILLAR, LOWER RH
62226GARNISH, FRONT PILLAR, LOWER LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411GARNISH, CENTER PILLAR, RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
62413CCLIP (FOR CENTER LOWER GARNISH)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
62414AGARNISH, CENTER PILLAR, LOWER LH
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
62471AGARNISH, ROOF SIDE, INNER RH
62471JCLIP (FOR ROOF SIDE GARNISH)
RH
62472AGARNISH, ROOF SIDE, INNER LH
62581FCLIP (FOR QUARTER PILLAR GARNISH)
62638AGARNISH, QUARTER PILLAR, RH
62639AGARNISH, QUARTER PILLAR, LH
64714ECLIP(FOR DECK TRIM SIDE COVER)
64716DCOVER, DECK TRIM, REAR
LT. BLUISH GRAY,TRIM11
MD.CHARCOAL,TRIM12
MD.GRAY,TRIM1#
64716HCOVER, DECK TRIM, REAR
LT. BLUISH GRAY,TRIM11
MD.CHARCOAL,TRIM12
MD.GRAY,TRIM1#
64730BPANEL ASSY, DECK TRIM SIDE, RH
W(REAR AIR CONDITIONER),BLUISH GRAY,TRIM11
W(REAR AIR CONDITIONER),DK.CHARCOAL,TRIM12
W(REAR AIR CONDITIONER),BLUISH GRAY,TRIM11
TRIM = TYPE A-*104 & W(REAR AIR CONDITIONER),DK.GRAY,TRIM1#
BLUISH GRAY,TRIM11
W(FRONT AUTO AIR CONDITIONER),BLUISH GRAY,TRIM11
W(REAR NO.2 BENCH SEAT & REAR AIR CONDITIONER),BLUISH GRAY,TRIM11
W(FRONT AUTO AIR CONDITIONER),DK.CHARCOAL,TRIM12
W(REAR NO.2 BENCH SEAT & REAR AIR CONDITIONER),DK.CHARCOAL,TRIM12
DK.CHARCOAL,TRIM12
TAIWAN SPEC & W(REAR AIR CONDITIONER & REAR NO.2 BENCH SEAT),BLUISH GRAY,TRIM11
BLUISH GRAY,TRIM11
TAIWAN SPEC & W(REAR AIR CONDITIONER & REAR NO.2 BENCH SEAT),DK.CHARCOAL,TRIM12
DK.CHARCOAL,TRIM12
TRIM = TYPE C-*104 & W(REAR AIR CONDITIONER),DK.GRAY,TRIM1#
W(REAR AIR CONDITIONER & TONNEAU COVER),BLUISH GRAY,TRIM11
W(REAR AIR CONDITIONER & TONNEAU COVER),DK.CHARCOAL,TRIM12
W(REAR AIR CONDITIONER & TONNEAU COVER),BLUISH GRAY,TRIM11
TRIM = TYPE A-*104 & W(REAR AIR CONDITIONER & TONNEAU COVER),DK.GRAY,TRIM1#
W(REAR AIR CONDITIONER),BLUISH GRAY,TRIM11
W(REAR AIR CONDITIONER),DK.CHARCOAL,TRIM12
W(REAR AIR CONDITIONER),BLUISH GRAY,TRIM11
TRIM = TYPE A-*104 & W(REAR AIR CONDITIONER & REAR NO.2 BENCH SEAT),DK.GRAY,TRIM1#
W(TONNEAU COVER & FRONT AUTO AIR CONDITIONER),BLUISH GRAY,TRIM11
W(TONNEAU COVER),BLUISH GRAY,TRIM11
W(TONNEAU COVER & REAR NO.2 BENCH SEAT & REAR AIR CONDITIONER),BLUISH GRAY,TRIM11
W(TONNEAU COVER),DK.CHARCOAL,TRIM12
W(TONNEAU COVER & REAR NO.2 BENCH SEAT & REAR AIR CONDITIONER),DK.CHARCOAL,TRIM12
W(TONNEAU COVER & FRONT AUTO AIR CONDITIONER),DK.CHARCOAL,TRIM12
W(REAR AIR CONDITIONER & TONNEAU COVER),BLUISH GRAY,TRIM11
W(REAR AIR CONDITIONER & TONNEAU COVER),DK.CHARCOAL,TRIM12
W(REAR AIR CONDITIONER & TONNEAU COVER),BLUISH GRAY,TRIM11
TRIM = TYPE A-*104 & W(REAR AIR CONDITIONER & REAR NO.2 BENCH SEAT & TONNEAU COVER),DK.GRAY,TRIM1#
W(TONNEAU COVER),BLUISH GRAY,TRIM11
sub64730-28050
W(TONNEAU COVER),DK.CHARCOAL,TRIM12
sub64730-28050
W(TONNEAU COVER),BLUISH GRAY,TRIM11
sub64730-28050
TRIM = TYPE A-*104 & W(TONNEAU COVER),DK.GRAY,TRIM1#
sub64730-28050
W(TONNEAU COVER & REAR NO.2 BENCH SEAT),BLUISH GRAY,TRIM11
sub64730-28080
W(TONNEAU COVER & REAR NO.2 BENCH SEAT),DK.CHARCOAL,TRIM12
sub64730-28080
W(TONNEAU COVER),BLUISH GRAY,TRIM11
sub64730-28090
W(TONNEAU COVER),DK.CHARCOAL,TRIM12
sub64730-28090
W(TONNEAU COVER),BLUISH GRAY,TRIM11
sub64730-28090
TRIM = TYPE A-*104 & W(TONNEAU COVER),DK.GRAY,TRIM1#
sub64730-28090
W(REAR NO.2 BENCH SEAT),BLUISH GRAY,TRIM11
sub64730-28020
W(REAR NO.2 BENCH SEAT),DK.CHARCOAL,TRIM12
sub64730-28020
TRIM = TYPE A-*104,DK.GRAY,TRIM1#
sub64730-28060
W(LEATHER SEAT & REAR AIR CONDITIONER),BLUISH GRAY,TRIM1#
TRIM = TYPE D-*104 & W(REAR AIR CONDITIONER & REAR NO.2 BENCH SEAT),DK.GRAY,TRIM1#
W(LEATHER SEAT & REAR AIR CONDITIONER & TONNEAU COVER),BLUISH GRAY,TRIM1#
TRIM = TYPE D-*104 & W(REAR AIR CONDITIONER & REAR NO.2 BENCH SEAT & TONNEAU COVER),DK.GRAY,TRIM1#
W(LEATHER SEAT & TONNEAU COVER),BLUISH GRAY,TRIM1#
sub64730-28190
TRIM = TYPE D-*104 & W(REAR NO.2 BENCH SEAT & TONNEAU COVER),DK.GRAY,TRIM1#
sub64730-28190
W(LEATHER SEAT),BLUISH GRAY,TRIM1#
sub64730-28180
TRIM = TYPE D-*104 & W(REAR NO.2 BENCH SEAT),DK.GRAY,TRIM1#
sub64730-28180
W(TONNEAU COVER),BLUISH GRAY,TRIM11
TAIWAN SPEC & W(REAR AIR CONDITIONER & REAR NO.2 BENCH SEAT & TONNEAU COVER),BLUISH GRAY,TRIM11
TAIWAN SPEC & W(REAR AIR CONDITIONER & REAR NO.2 BENCH SEAT & TONNEAU COVER),DK.CHARCOAL,TRIM12
W(TONNEAU COVER),DK.CHARCOAL,TRIM12
TRIM = TYPE B-*104 & W(REAR AIR CONDITIONER),DK.GRAY,TRIM1#
TAIWAN SPEC & W(REAR NO.2 BENCH SEAT),BLUISH GRAY,TRIM11
sub64730-28030
TAIWAN SPEC & W(REAR NO.2 BENCH SEAT),DK.CHARCOAL,TRIM12
sub64730-28030
TAIWAN SPEC & W(REAR NO.2 BENCH SEAT & TONNEAU COVER),BLUISH GRAY,TRIM11
sub64730-28250
TAIWAN SPEC & W(REAR NO.2 BENCH SEAT & TONNEAU COVER),DK.CHARCOAL,TRIM12
sub64730-28250
TRIM = TYPE B-*104 & W(AUTO SLIDE DOOR & REAR AIR CONDITIONER & TONNEAU COVER),DK.GRAY,TRIM1#
TRIM = TYPE B-*104 & W(REAR AIR CONDITIONER & TONNEAU COVER),DK.GRAY,TRIM1#
TRIM = TYPE C-*104 & W(AUTO SLIDE DOOR & REAR AIR CONDITIONER & TONNEAU COVER),DK.GRAY,TRIM1#
TRIM = TYPE C-*104 & W(REAR AIR CONDITIONER & TONNEAU COVER),DK.GRAY,TRIM1#
TRIM = TYPE B-*104 & W(AUTO SLIDE DOOR & REAR AIR CONDITIONER),DK.GRAY,TRIM1#
TRIM = TYPE C-*104 & W(AUTO SLIDE DOOR & REAR AIR CONDITIONER),DK.GRAY,TRIM1#
TRIM = TYPE D-*104 & W(AUTO SLIDE DOOR & REAR AIR CONDITIONER & TONNEAU COVER),DK.GRAY,TRIM1#
TRIM = TYPE D-*104 & W(REAR AIR CONDITIONER & TONNEAU COVER),DK.GRAY,TRIM1#
TRIM = TYPE D-*104 & W(AUTO SLIDE DOOR & REAR AIR CONDITIONER),DK.GRAY,TRIM1#
TRIM = TYPE D-*104,DK.GRAY,TRIM1#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64735FCOVER, DECK TRIM SIDE SERVICE HOLE, RH
64735GCOVER, DECK TRIM SIDE SERVICE HOLE, LH
64740APANEL ASSY, DECK TRIM SIDE, LH
BLUISH GRAY,TRIM11
DK.CHARCOAL,TRIM12
BLUISH GRAY,TRIM11
TRIM = TYPE A-*104,DK.GRAY,TRIM1#
BLUISH GRAY,TRIM11
W(REAR NO.2 BENCH SEAT),BLUISH GRAY,TRIM11
DK.CHARCOAL,TRIM12
W(REAR NO.2 BENCH SEAT),DK.CHARCOAL,TRIM12
TAIWAN SPEC & W(REAR NO.2 BENCH SEAT),BLUISH GRAY,TRIM11
BLUISH GRAY,TRIM11
TAIWAN SPEC & W(REAR NO.2 BENCH SEAT),DK.CHARCOAL,TRIM12
DK.CHARCOAL,TRIM12
TRIM = TYPE C-*104,DK.GRAY,TRIM1#
W(TONNEAU COVER),BLUISH GRAY,TRIM11
W(TONNEAU COVER),DK.CHARCOAL,TRIM12
W(TONNEAU COVER),BLUISH GRAY,TRIM11
TRIM = TYPE A-*104 & W(TONNEAU COVER),DK.GRAY,TRIM1#
W(TONNEAU COVER),BLUISH GRAY,TRIM11
W(TONNEAU COVER),DK.CHARCOAL,TRIM12
W(TONNEAU COVER),BLUISH GRAY,TRIM11
TRIM = TYPE A-*104 & W(TONNEAU COVER),DK.GRAY,TRIM1#
BLUISH GRAY,TRIM11
DK.CHARCOAL,TRIM12
BLUISH GRAY,TRIM11
TRIM = TYPE A-*104,DK.GRAY,TRIM1#
W(TONNEAU COVER),BLUISH GRAY,TRIM11
W(TONNEAU COVER & REAR NO.2 BENCH SEAT),BLUISH GRAY,TRIM11
W(TONNEAU COVER & REAR NO.2 BENCH SEAT),DK.CHARCOAL,TRIM12
W(TONNEAU COVER),DK.CHARCOAL,TRIM12
W(LEATHER SEAT & TONNEAU COVER),BLUISH GRAY,TRIM1#
TRIM = TYPE D-*104 & W(REAR NO.2 BENCH SEAT & TONNEAU COVER),DK.GRAY,TRIM1#
W(LEATHER SEAT),BLUISH GRAY,TRIM1#
TRIM = TYPE D-*104 & W(REAR NO.2 BENCH SEAT),DK.GRAY,TRIM1#
TAIWAN SPEC & W(REAR NO.2 BENCH SEAT & TONNEAU COVER),BLUISH GRAY,TRIM11
W(TONNEAU COVER),BLUISH GRAY,TRIM11
TAIWAN SPEC & W(REAR NO.2 BENCH SEAT & TONNEAU COVER),DK.CHARCOAL,TRIM12
W(TONNEAU COVER),DK.CHARCOAL,TRIM12
TRIM = TYPE B-*104,DK.GRAY,TRIM1#
TRIM = TYPE B-*104 & W(TONNEAU COVER),DK.GRAY,TRIM1#
TRIM = TYPE D-*104 & W(TONNEAU COVER),DK.GRAY,TRIM1#
TRIM = TYPE D-*104,DK.GRAY,TRIM1#
TRIM = TYPE C-*104 & W(TONNEAU COVER),DK.GRAY,TRIM1#
64742CBOX, DECK SIDE TRIM, LH
64766COVER SUB-ASSY, QUARTER TRIM JACK
64910MCOVER ASSY, TONNEAU
MD.GRAY,TRIM1#
64928AHOLDER, TONNEAU COVER HOOK
64928BHOLDER, TONNEAU COVER HOOK
64935AHOLDER, TONNEAU COVER
64935BBRACKET, TONNEAU COVER HOLDER
64936AHOLDER, TONNEAU COVER, LH
64937ACAP, TONNEAU COVER HOLDER, NO.1
66991HOLDER, QUARTER TRIM CUP, RH
TRIM = TYPE B OR TYPE C-*104,LT. BLUISH GRAY,TRIM11
sub66991-28050
TRIM = TYPE A OR TYPE B-*104,LT. BLUISH GRAY,TRIM11
sub66991-28050
TRIM = TYPE B-*104,LT. BLUISH GRAY,TRIM11
sub66991-28050
TRIM = TYPE B-*104,MD.CHARCOAL,TRIM12
sub66991-28050
TRIM = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12
sub66991-28050
TRIM = TYPE A OR TYPE G-*104,BLUISH GRAY,TRIM11
sub66991-28050
66992HOLDER, CUP, NO.2
TRIM = TYPE A OR TYPE B-*104,LT. BLUISH GRAY,TRIM11
sub66992-28010
TRIM = TYPE B OR TYPE C-*104,LT. BLUISH GRAY,TRIM11
sub66992-28010
TRIM = TYPE B-*104,LT. BLUISH GRAY,TRIM11
sub66992-28010
TRIM = TYPE A OR TYPE B-*104,MD.CHARCOAL,TRIM12
sub66992-28010
TRIM = TYPE B-*104,MD.CHARCOAL,TRIM12
sub66992-28010
TRIM = TYPE A OR TYPE G-*104,BLUISH GRAY,TRIM11
sub66992-28010
6751
6755
67913BPLATE, FRONT DOOR SCUFF, RH
67914BPLATE, FRONT DOOR SCUFF, LH
67917CPLATE, REAR DOOR SCUFF, RH
TYPE A:REFER TO ILLUSTRATION,LT. BLUISH GRAY,TRIM11
sub67917-28060
TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12
sub67917-28060
TYPE A:REFER TO ILLUSTRATION,MD.GRAY,TRIM1#
sub67917-28060
TYPE B:REFER TO ILLUSTRATION,LT. BLUISH GRAY,TRIM11
sub67917-28070
TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12
sub67917-28070
TYPE B:REFER TO ILLUSTRATION,MD.GRAY,TRIM1#
sub67917-28070
W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH),MD.GRAY,TRIM1#
sub67917-28100
67918EPLATE, REAR DOOR SCUFF, LH
TYPE A:REFER TO ILLUSTRATION,LT. BLUISH GRAY,TRIM11
sub67918-28050
TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12
sub67918-28050
TYPE A:REFER TO ILLUSTRATION,MD.GRAY,TRIM1#
sub67918-28050
TYPE B:REFER TO ILLUSTRATION,LT. BLUISH GRAY,TRIM11
TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM12
TYPE B:REFER TO ILLUSTRATION,MD.GRAY,TRIM1#
W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH),MD.GRAY,TRIM1#
sub67918-28070
73135BCOVER, SHOULDER BELT ANCHOR, RH
73136CCOVER, SHOULDER BELT ANCHOR, LH
73371DHANGER, REAR SEAT SHOULDER BELT
73371EHANGER, REAR SEAT SHOULDER BELT
BLUISH GRAY,TRIM11
sub73371-60030
DK.CHARCOAL,TRIM12
sub73371-60030
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
6792328010CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-28010
9018304035
main90183-04035
9018906018
main90189-06018
9018906084
main90189-06084
9046710161
main90467-10161
9046710167
main90467-10167
9046710188
main90467-10188
9155380612
main91553-80612
91631J0612
main91631-J0612
9326056014
main93260-56014
9356056016
main93560-56016
65 parts on this diagram · 1 diagram in section
