CLUTCH MASTER CYLINDER

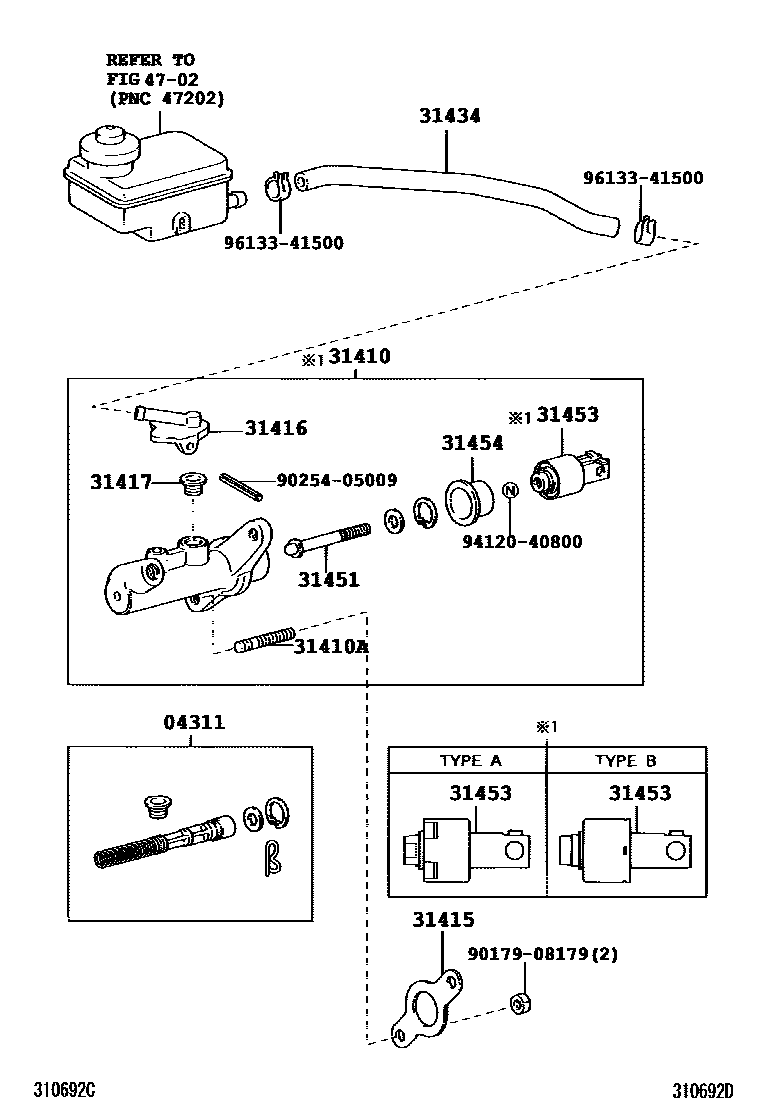

Parts diagram

04311CYLINDER KIT, CLUTCH MASTER

main04311-28030i200002-200304

main04311-34020i200002-200304

31410CYLINDER ASSY, CLUTCH MASTER

main31420-28140i200002-200102

TYPE A:REFER TO ILLUSTRATION

main31420-28141i200102-200304

TYPE B:REFER TO ILLUSTRATION

main31420-28150i200002-200102

TYPE A:REFER TO ILLUSTRATION

main31420-28151i200304

TYPE B:REFER TO ILLUSTRATION

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08357×2i200304-200404

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010i200002-200304

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-42010i200002-200304

31417GROMMET, CLUTCH RESERVOIR

main31417-35010i200002-200304

31434TUBE, CLUTCH RESERVOIR

main31434-28100i200002-200304

main31434-28110i200002-200007

main31434-28111i200007-200304

main31434-28140i200102-200304

main31434-28190i200304

main31434-28200i200304

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-36040i200304

main31451-42010i200304

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010i200002-200102

TYPE A:REFER TO ILLUSTRATION

main31404-28020i200002-200102

TYPE A:REFER TO ILLUSTRATION

main31404-35030i200304-200404

TYPE B:REFER TO ILLUSTRATION

main31404-44020i200304-200404

TYPE B:REFER TO ILLUSTRATION

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010i200304

main31454-16010i200304-200404

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908179

main90179-08179

9025405009

main90254-05009

9412040800

main94120-40800

9613341500

main96133-41500

15 parts on this diagram · 2 diagrams in section
