TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

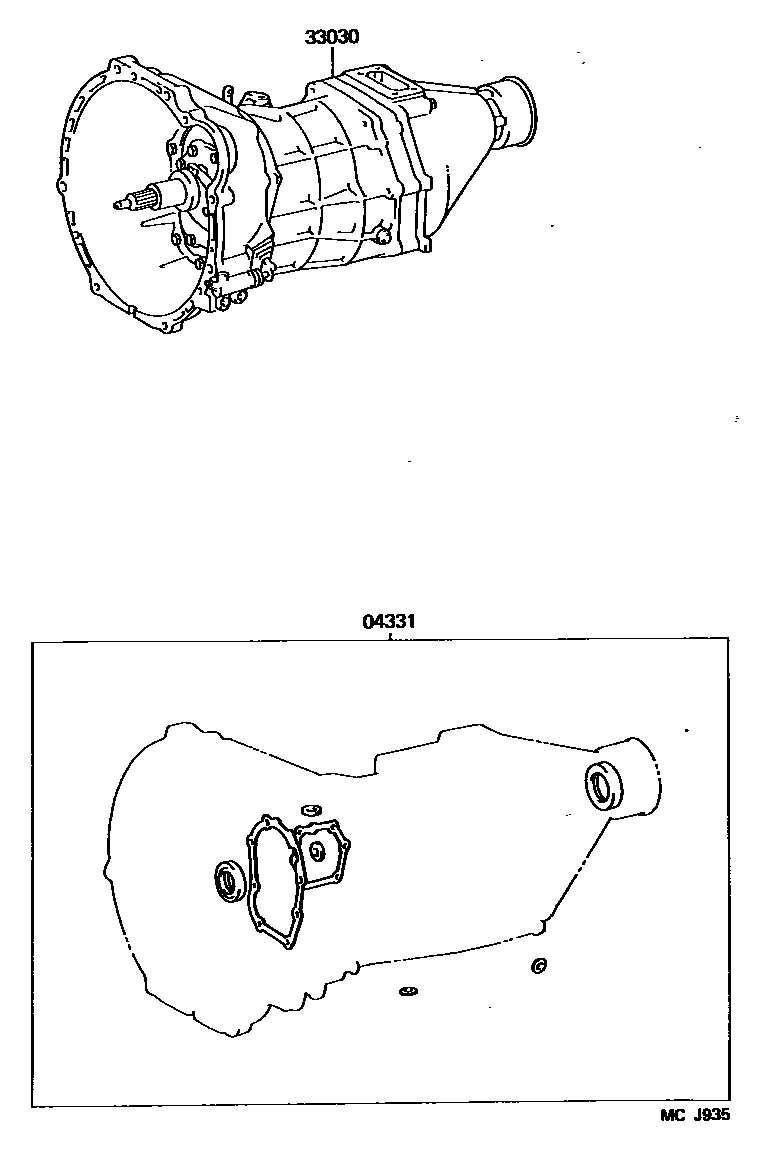

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35170i199005-199912

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-28450i199005-199008

main33030-28451i199008-199108

main33030-28452i199108-199308

main33030-28470i199005-199008

main33030-28471i199008-199108

main33030-28472i199308-199312

main33030-28473i199312-199912

main33030-28480i199005-199008

main33030-28481i199008-199108

main33030-28482i199108-199312

main33030-28483i199312-199912

2 parts on this diagram · 1 diagram in section
