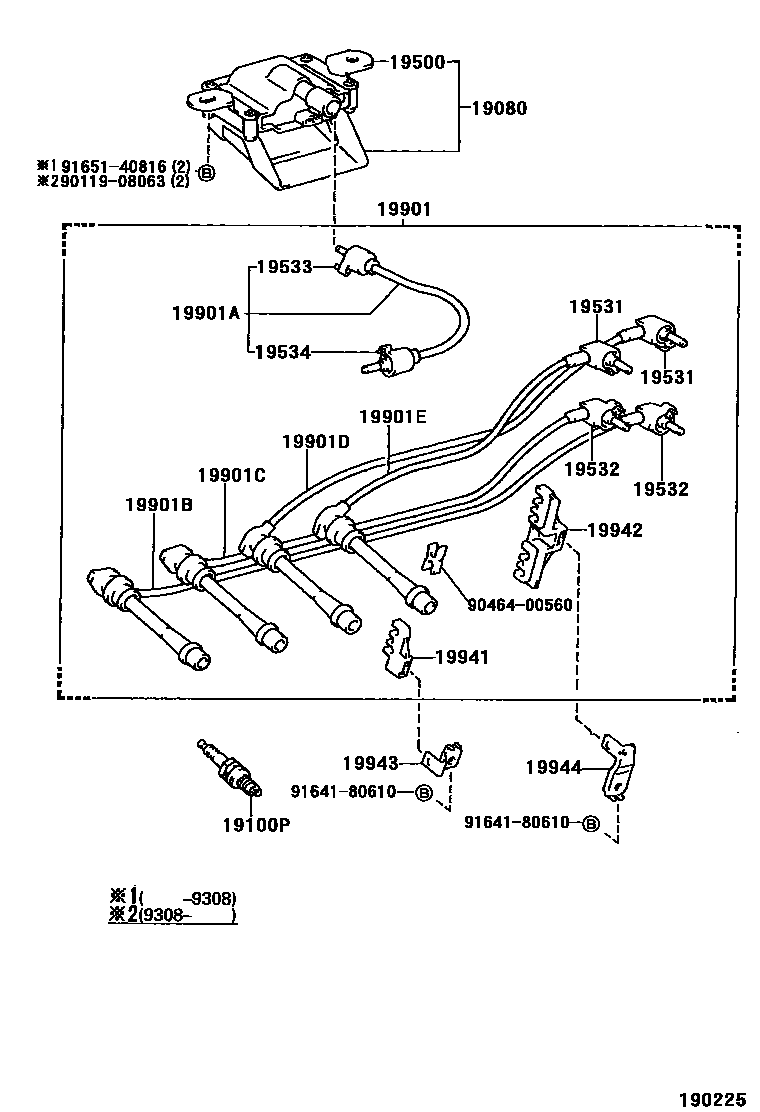

IGNITION COIL & SPARK PLUG / GLOW PLUG

19080COIL ASSY, W/BRACKET & CORD

main19080-76010i2TZFE..TCR1#,2#199005-199912

19100PPLUG, SPARK

main90919-01168i2TZFE..TCR1#,2#199005-199308

PK16R11,NIPPONDENSO

sub90919-01217

main90919-01168i2TZFE..TCR1#,2#..ARL,W199308-199912

PK16R11

sub90919-01217

main90919-01176i2TZFE..TCR10..LHD..ATM199308-199912

K16R-U

main90919-01176i2TZFE..TCR10..LHD..ATM199308-199912

K16R-U,LEADED GASOLINE

19500COIL ASSY, IGNITION

main90919-02200i2TZFE..TCR1#,2#199005-199912

19531HOLDER, RESISTIVE CORD, NO.1

main19531-76010i2TZFE..TCR1#,2#199005-199912

19532HOLDER, RESISTIVE CODE, NO.2

main19532-74010i2TZFE..TCR1#,2#199005-199007

main19532-76020i2TZFE..TCR1#,2#199007-199912

19533HOLDER, RESISTIVE CORD, NO.3

main19533-76010i2TZFE..TCR1#,2#199005-199912

19534HOLDER, RESISTIVE CORD, NO.4

main19534-76010i2TZFE..TCR1#,2#199005-199912

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21489i2TZFE..TCR1#,2#199005-199912

19901ACORD, COIL RESISTIVE

main90919-13354i2TZFE..TCR1#,2#199005-199912

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15084i2TZFE..TCR1#,2#199005-199912

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15085i2TZFE..TCR1#,2#199005-199912

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15086i2TZFE..TCR1#,2#199005-199912

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15087i2TZFE..TCR1#,2#199005-199912

19941CLAMP, RESISTIVE CORD, NO.1

main19941-76010i2TZFE..TCR1#,2#199005-199912

19942CLAMP, RESISTIVE CORD, NO.2

main19942-76010i2TZFE..TCR1#,2#199005-199912

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

main19943-76010i2TZFE..TCR1#,2#199005-199912

19944PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2

main19944-76010i2TZFE..TCR1#,2#199005-199912

9011908063

main90119-08063

9046400560

main90464-00560

9164180610

main91641-80610

9165140816

main91651-40816

21 parts on this diagram · 1 diagram in section
