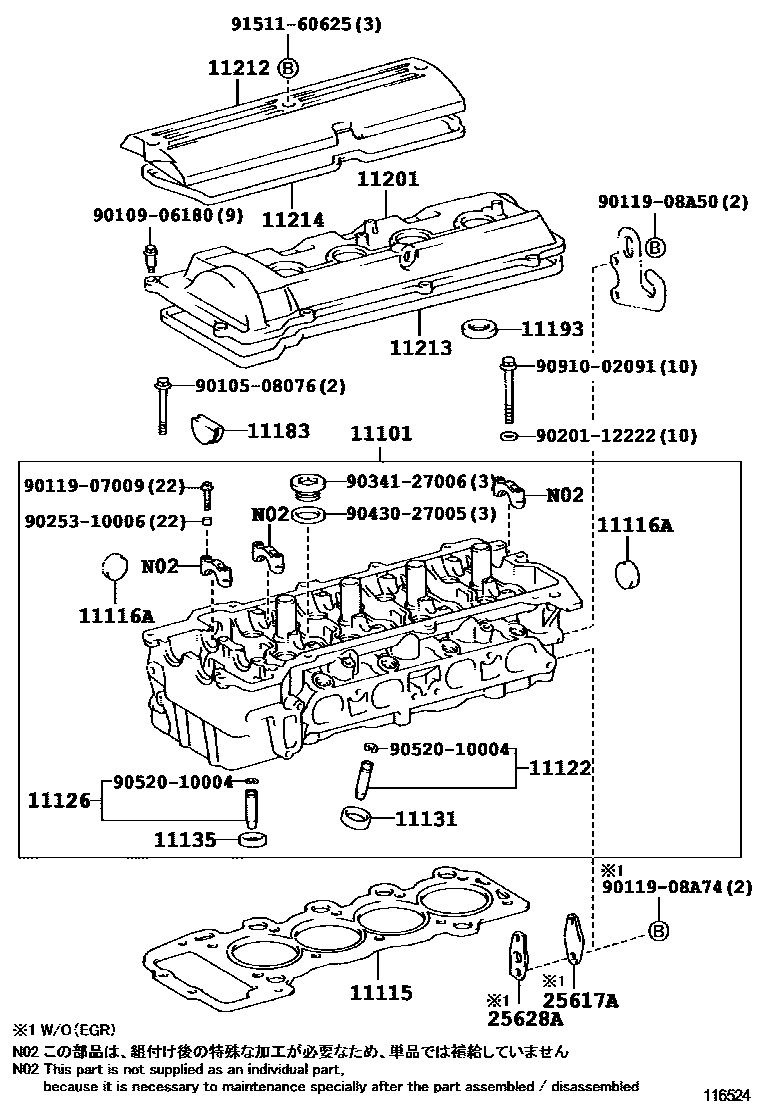

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-79055i2TZFE..TCR1#,2#..ARL,W199005-199912

main11101-79065i2TZFE..TCR11..RHD..MTM199308-199401

LEADED GASOLINE SPEC

sub11101-79095

main11101-79095i2TZFE..TCR11..RHD..MTM199401-199912

LEADED GASOLINE SPEC

11115GASKET, CYLINDER HEAD

main11115-76030i2TZFE..TCR1#,2#199005-199608

T=1.25

sub11115-76040

main11115-76040i2TZFE..TCR1#,2#199608-199912

T=1.25

11116APLUG, TIGHT, NO.1

main96411-42800i2TZFE..TCR1#,2#199005-199308

main96411-62800i2TZFE..TCR1#,2#199308-199912

11122BUSH, INTAKE VALVE GUIDE

main11122-16020i2TZFE..TCR1#,2#199005-199912

STD

main11123-16020i2TZFE..TCR1#,2#199005-199912

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11126-50040i2TZFE..TCR1#,2#199005-199912

STD

main11127-50040i2TZFE..TCR1#,2#199005-199912

O/S 0.05

11131SEAT, INTAKE VALVE

main11131-76020i2TZFE..TCR1#,2#..ARL,W199005-199912

STD

main11131-76030i2TZFE..TCR10..GEN199308-199401

STD

main11131-76030i2TZFE..TCR10..GEN199308-199401

STD,LEADED GASOLINE SPEC

main11132-76020i2TZFE..TCR1#,2#..ARL,W199005-199912

O/S 0.03

main11132-76030i2TZFE..TCR11..RHD..MTM199308-199401

O/S 0.03

main11132-76030i2TZFE..TCR11..RHD..MTM199308-199401

O/S 0.03,LEADED GASOLINE SPEC

11135SEAT, EXHAUST VALVE

main11135-76020i2TZFE..TCR1#,2#..ARL,W199005-199912

STD

sub11135-76040

main11135-76030i2TZFE..TCR11..RHD..MTM199308-199401

STD,LEADED GASOLINE SPEC

main11135-76030i2TZFE..TCR10..GEN199308-199401

STD

main11135-76040i2TZFE..TCR10..LHD..ATM199401-199912

STD

main11135-76040i2TZFE..TCR11..RHD..MTM199401-199912

STD,LEADED GASOLINE SPEC

main11136-76020i2TZFE..TCR1#,2#..ARL,W199005-199912

O/S 0.03

sub11136-76040

main11136-76030i2TZFE..TCR10..GEN199308-199401

O/S 0.03,LEADED GASOLINE SPEC

main11136-76030i2TZFE..TCR10..GEN199308-199401

O/S 0.03

main11136-76040i2TZFE..TCR10..LHD..ATM199401-199912

O/S 0.03

main11136-76040i2TZFE..TCR10..LHD..ATM199401-199912

O/S 0.03,LEADED GASOLINE SPEC

11183PLUG, SEMICIRCULAR

main11183-50010i2TZFE..TCR1#,2#199005-199912

11193GASKET, SPARK PLUG TUBE

main11193-15010i2TZFE..TCR1#,2#199005-199912

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-76100i2TZFE..TCR1#,2#199005-199912

11212COVER, CYLINDER HEAD, NO.2

main11212-76070i2TZFE..TCR1#,2#199005-199912

11213GASKET, CYLINDER HEAD COVER

main11213-76020i2TZFE..TCR1#,2#199005-199912

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-76010i2TZFE..TCR1#,2#199005-199912

25617APLATE, EGR HOLE COVER, NO.2

main25617-76010i2TZFE..TCR10..LHD..ATM;2TZFE..TCR11..RHD..MTM199308-199912

25628AGASKET, EGR HOLE COVER PLATE, NO.2

main25628-76010i2TZFE..TCR10..LHD..ATM;2TZFE..TCR11..RHD..MTM199308-199912

9010508076

main90105-08076

9010906180

main90109-06180

9011907009

main90119-07009

9011908A50

main90119-08A50

9011908A74

main90119-08A74

9020112222

main90201-12222

9025310006

main90253-10006

9034127006

main90341-27006

9043027005

main90430-27005

9052010004

main90520-10004

9091002091

main90910-02091

9151160625

main91511-60625

27 parts on this diagram · 1 diagram in section
