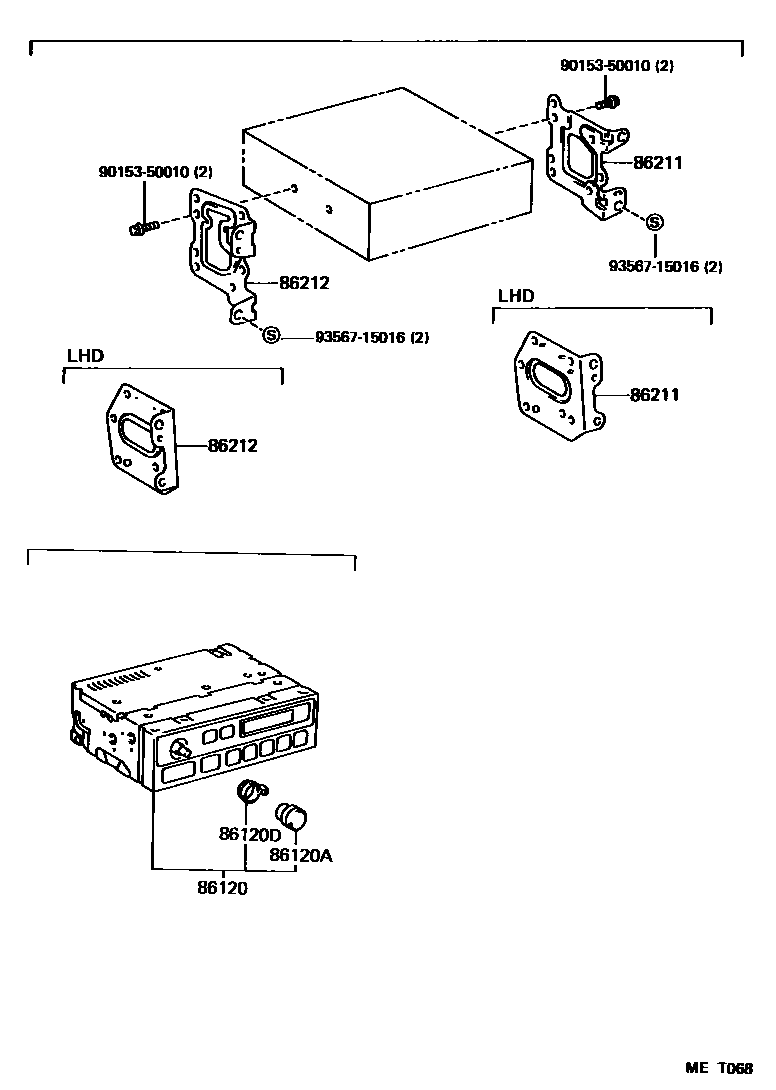

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-10440iCR2#,KR2#,YR2#199201-199304

MATSUSHITA,MW/LW/UKW CST 2SP

main86120-1A040iCR2#,KR2#,YR2#199201-199501

FUJITSU TEN,ID=12101,AM ETR

main86120-2B180iCR21,KR21,YR22199201-199304

MATSUSHITA,MW/LW/UKW CST 4SP

main86120-2B440iCR2#,KR2#,YR2#199304-199501

MATSUSHITA,ID=58406,MW/LW/UKW CST 2SP

main86120-2B450iCR21,KR21,YR22199304-199501

MATSUSHITA,ID=58405,MW/LW/UKW CST 4SP

main86120-32111iCR2#,KR2#,YR2#199201-199501

FUJITSU TEN,MW/LW/UKW

86120AKNOB, RADIO RECEIVER SWITCH

main86128-12380iCR2#,KR2#,YR2#199201-199501

AM ETR

main86128-17230iCR21,KR21,YR22; CR27,KR27,YR29199201-199304

MW/LW/UKW CST

main86128-17490iCR21,KR21,YR22; CR27,KR27,YR29199304-199501

MW/LW/UKW CST; MW/LW/UKW CST 2SP

main86128-32060iCR2#,KR2#,YR2#199201-199501

MW/LW/UKW

86120DKNOB, RADIO RECEIVER TONE

main86128-12400iCR2#,KR2#,YR2#199201-199501

AM ETR

main86128-32080iCR2#,KR2#,YR2#199201-199501

MW/LW/UKW

86211BRACKET, RADIO, NO.1

main86211-28020iCR27,KR27..RHD199201-199501

main86211-28030iCR2#,KR2#,YR2#..LHD199201-199501

86212BRACKET, RADIO, NO.2

main86212-28020iCR27,KR27..RHD199201-199501

main86212-28030iCR2#,KR2#,YR2#..LHD199201-199501

9015350010

main90153-50010

9356715016

main93567-15016

7 parts on this diagram · 1 diagram in section
