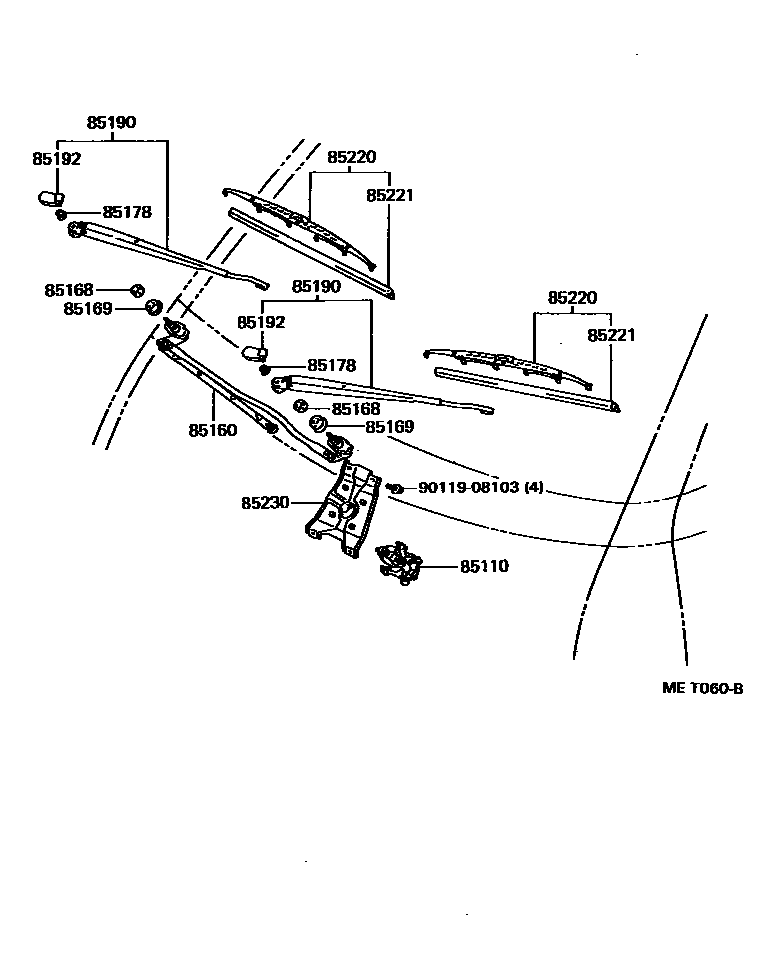

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28050iCR27,KR27..RHD199201-199501

main85110-28060iCR2#,KR2#,YR2#..LHD199201-199501

85160LINK ASSY, WINDSHIELD WIPER

main85150-28040iCR27,KR27..RHD199201-199501

main85150-28050iCR2#,KR2#,YR2#..LHD199201-199501

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95J00×2iCR2#,KR2#,YR2#199201-199501

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85152-28040×2iCR27,KR27..RHD199201-199501

main85152-28050×2iCR2#,KR2#,YR2#..LHD199201-199501

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08015×2iCR2#,KR2#,YR2#199201-199501

85190ARM ASSY, WINDSHIELD WIPER

main85211-28050iCR2#,KR2#,YR2#..LHD199201-199501

RH

main85211-28060iCR27,KR27..RHD199201-199501

RH

main85221-28020iCR27,KR27..RHD199201-199501

LH

main85221-28030iCR2#,KR2#,YR2#..LHD199201-199501

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-28020×2iCR2#,KR2#,YR2#199201-199501

85220BLADE ASSY, WINDSHIELD WIPER

main85212-28050iCR2#,KR2#,YR2#..LHD199201-199501

RH

main85212-28060iCR27,KR27..RHD199201-199501

RH

main85222-28030iCR27,KR27..RHD199201-199501

LH

main85222-28040iCR2#,KR2#,YR2#..LHD199201-199501

LH

85221BLADE, WINDSHIELD WIPER

main85213-28040iCR2#,KR2#,YR2#199201-199501

RH

main85213-28050iCR2#,KR2#,YR2#199201-199501

LH

85230BRACKET ASSY, WINDSHIELD WIPER

main85230-28010iCR27,KR27..RHD199201-199501

main85230-28020iCR2#,KR2#,YR2#..LHD199201-199501

9011908103

main90119-08103

11 parts on this diagram · 1 diagram in section
