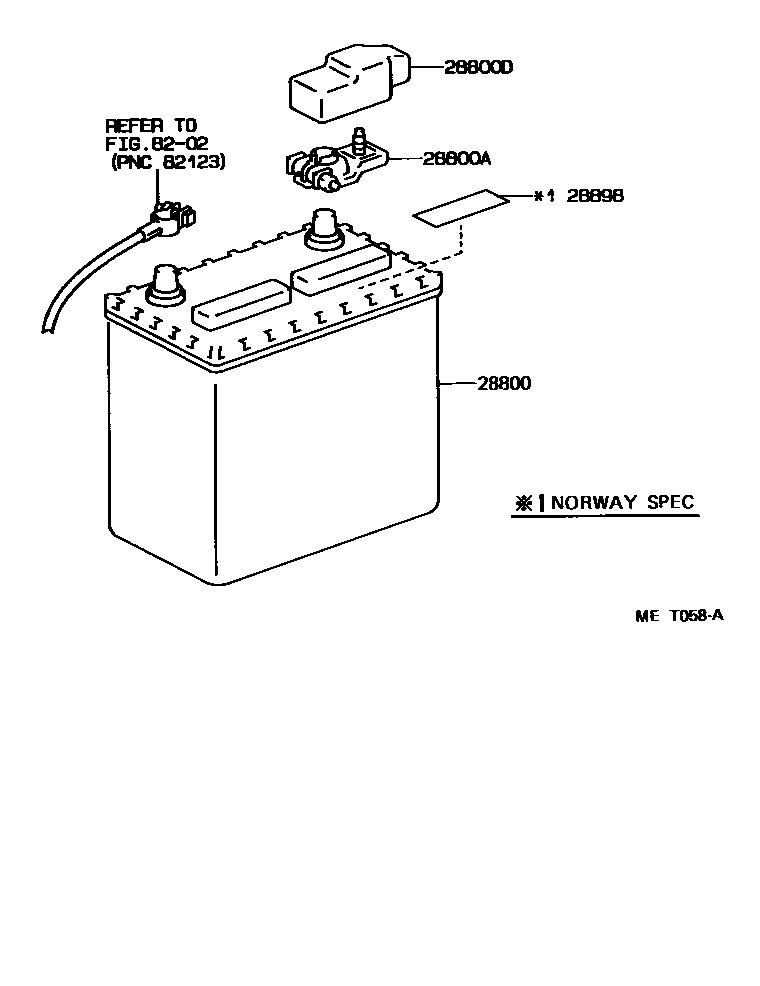

BATTERY & BATTERY CABLE

28800BATTERY

main28800-13140i5K..KR2#199201-199309

46B24R(S)

main28800-13160i5K..KR2#199201-199405

34B19R

main28800-15010i4YEC..YR2#199201-199501

55D23R

main28800-54040i2C..CR2#199309-199501

95D31R

main28800-67030i2C..CR2#199201-199501

80D26R

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i2C,5K,4YEC..CR2#,KR2#,YR2#199201-199501

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i2C,5K,4YEC..CR2#,KR27,YR29199201-199501

main82821-24010i5K,4YEC..KR21,YR22199201-199501

28898PLATE, BATTERY

main28898-46010i4YEC..YR29..05S199404-199501

NORWAY SPEC

main28898-50070i4YEC..YR29..05S199201-199404

NORWAY SPEC

8202WIRING & CLAMP

→ Go to FIG 82-02

5 parts on this diagram · 1 diagram in section
