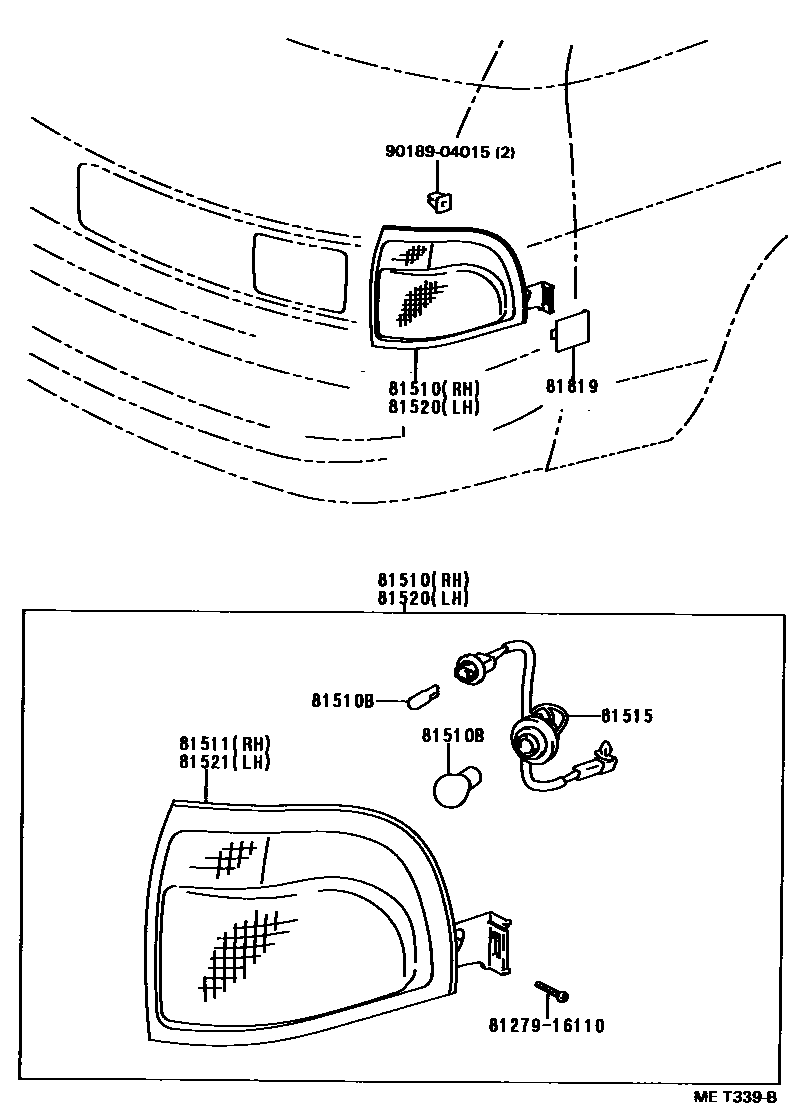

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-28060iCR21,KR21,YR22199201-199408

main81510-28070iCR27,KR27,YR29199201-199408

main81510-28160iCR21,YR22199408-199501

main81510-28170iCR27,YR29199408-199501

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2iCR2#,KR2#,YR2#199201-199501

12V 21W

main99132-12050×2iCR27,KR27,YR29199201-199501

12V 5W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-28060iCR21,KR21,YR22199201-199408

main81511-28070iCR27,KR27,YR29199201-199408

main81511-28160iCR21,YR22199408-199501

main81511-28170iCR27,YR29199408-199501

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-28050×2iCR27,KR27,YR29199201-199501

main81515-28060×2iCR21,KR21,YR22199201-199501

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-28050iCR21,KR21,YR22199201-199408

main81520-28060iCR27,KR27,YR29199201-199408

main81520-28160iCR21,YR22199408-199501

main81520-28170iCR27,YR29199408-199501

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-28050iCR21,KR21,YR22199201-199408

main81521-28060iCR27,KR27,YR29199201-199408

main81521-28160iCR21,YR22199408-199501

main81521-28170iCR27,YR29199408-199501

81819COVER, TURN SIGNAL INDICATOR LAMP

main81819-28010iCR2#,KR2#,YR2#199201-199408

RH

main81819-28020iCR2#,KR2#,YR2#199201-199408

LH

main81819-28030iCR2#,YR2#199408-199501

RH

main81819-28040iCR2#,YR2#199408-199501

LH

8127916110WASHER, SIDE TURN SIGNAL LAMP

main81279-16110

9018904015

main90189-04015

9 parts on this diagram · 2 diagrams in section
