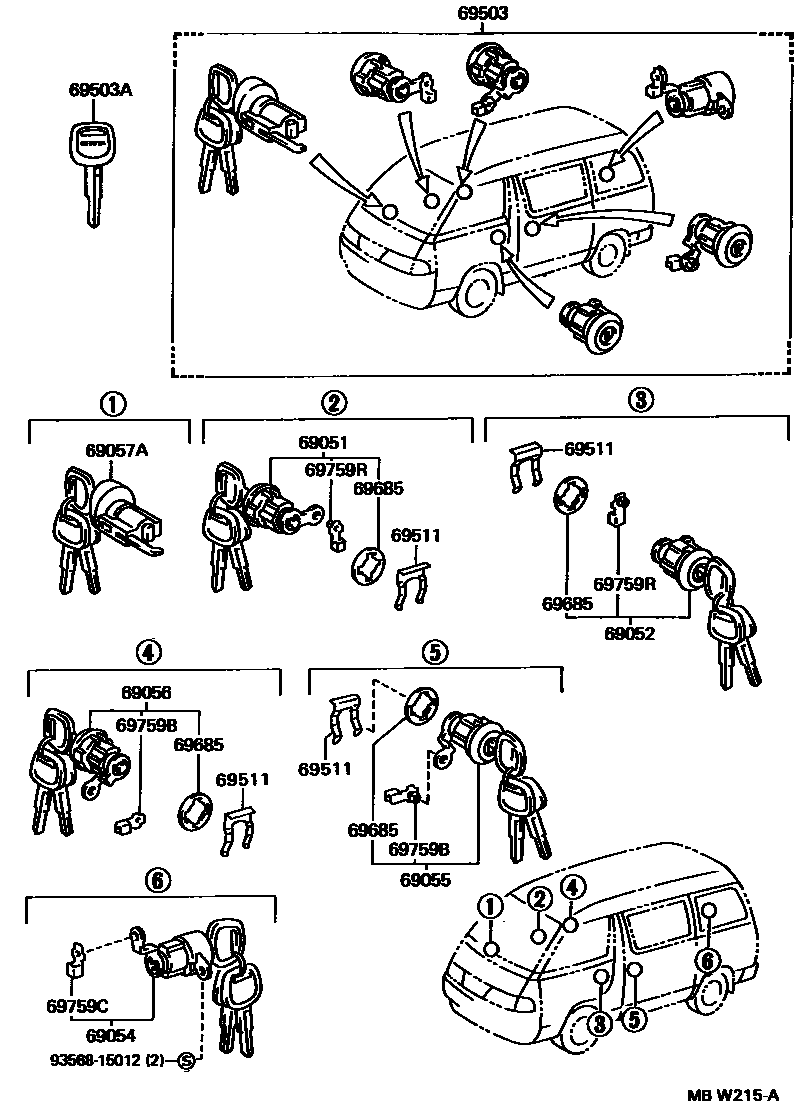

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-28040iCR2#,KR2#,YR2#199201-199501

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-28040iCR2#,KR2#,YR2#199201-199501

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-28040iCR2#,KR2#,YR2#199201-199501

69055CYLINDER & KEY SET, REAR DOOR LOCK, LH

main69054-28030iCR27,KR27..5D;CR27,KR27..RHD199201-199501

69056CYLINDER & KEY SET, REAR DOOR LOCK, RH

main69053-28040iCR2#,KR2#,YR2#..LHD199201-199501

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-28040iCR2#,KR2#,YR2#199201-199501

69503CYLINDER SET, LOCK

main69005-28160iCR2#,KR2#,YR2#..LHD..4D199201-199501

main69005-28180iCR27,KR27..RHD199201-199501

main69005-28220iCR27,KR27..5D199201-199501

69503AKEY, BLANK

main90999-00144iCR2#,KR2#,YR2#199201-199501

MASTER KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69512-87001iCR2#,KR2#,YR2#..4D199201-199501

69685PAD, LOCK CYLINDER

main69513-87001iCR2#,KR2#,YR2#..4D199201-199501

sub69513-32010

69759BSNAP, REAR DOOR LOCK CYLINDER

main69759-30040iCR2#,KR2#,YR2#..LHD..4D199201-199501

BEIGE

main69759-30050iCR27,KR27..RHD199201-199501

YELLOWISH GREEN

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-30050iCR2#,KR2#,YR2#199201-199501

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iCR2#,KR2#,YR2#199201-199501

BEIGE

main69759-30050iCR2#,KR2#,YR2#199201-199501

YELLOWISH GREEN

9356815012

main93568-15012

14 parts on this diagram · 1 diagram in section
