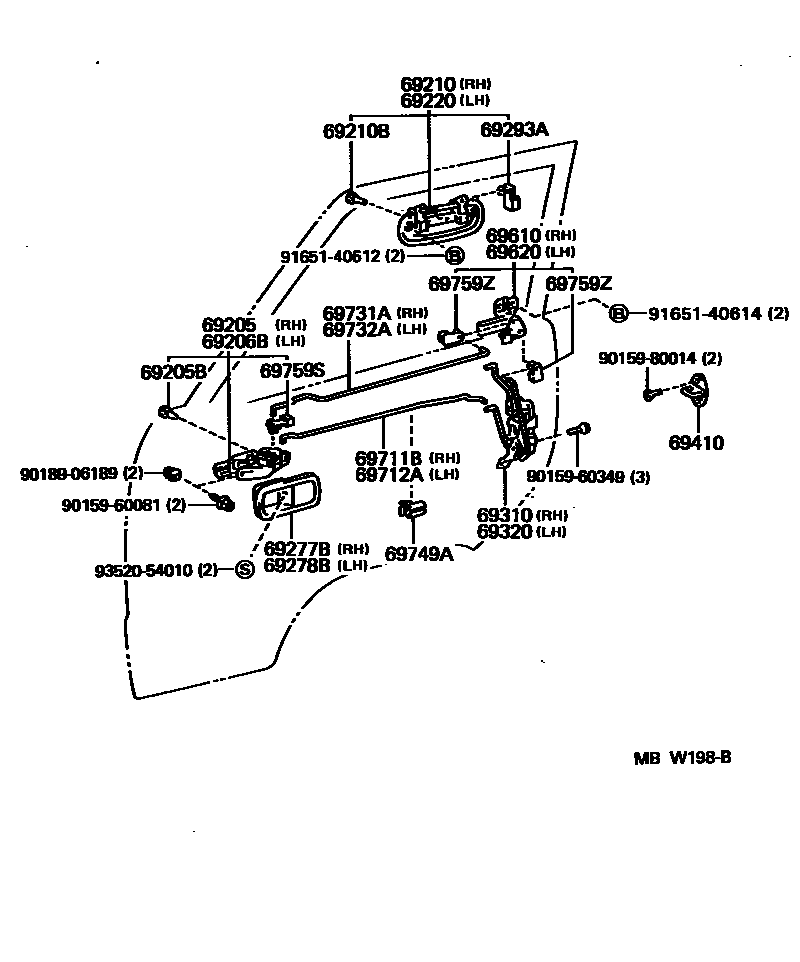

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PAINT REQ.
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
LESS COLOR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
WHITE
YELLOW
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69610CONTROL ASSY, FRONT SLIDE DOOR LOCK REMOTE, RH
69620CONTROL ASSY, FRONT SLIDE DOOR LOCK REMOTE, LH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SSNAP, FRONT DOOR INSIDE HANDLE
PINK
YELLOW
69759ZSNAP, DOOR LOCK CONTROL LINK
RED
BLACK
9015960081
main90159-60081
9015960349
main90159-60349
9015980014
main90159-80014
9018906189
main90189-06189
9165140612
main91651-40612
9165140614
main91651-40614
9352054010
main93520-54010
28 parts on this diagram · 1 diagram in section
