ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-28270-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-10017-B0×2iCR21,KR21,YR22199201-199501

GRAY,TRIM1#

63311AHEADLINING, ROOF NO.1

main63311-28340-B0iCR27,KR27,YR29..MRF199201-199501

LIGHT GRAY,TRIM1#

main63311-28350-B0iKR27..5D199201-199405

LIGHT GRAY,TRIM1#

63312AHEADLINING, ROOF, NO.2

main63312-28060-B0iCR27,KR27,YR29..MRF199201-199501

LIGHT GRAY,TRIM1#

main63312-28070-B0iKR27..5D199201-199405

LIGHT GRAY,TRIM1#

63313AHEADLINING, ROOF, NO.3

main63313-28020-B0iCR27,KR27,YR29..MRF199201-199501

LIGHT GRAY,TRIM1#

main63313-28030-B0iKR27..5D199201-199405

LIGHT GRAY,TRIM1#

63341PAD, ROOF SILENCER, NO.1

main63341-28030iCR21,KR21,YR22199201-199501

63342PAD, ROOF SILENCER, NO.2

main63342-28030iCR21,KR21,YR22199201-199501

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-87006iCR21,KR21,YR22199201-199501

63362SUPPORT, ROOF HEADLINING, NO.2

main63362-87004iCR21,KR21,YR22199201-199501

63363SUPPORT, ROOF HEADLINING, NO.3

main63363-87004×6iCR21,KR21,YR22199201-199501

63391TRIM, ROOF HEADLINING, FRONT

main63391-87013iCR27,KR27,YR29199201-199501

63393ETRIM, ROOF HEADLINING

main63393-87004-B0iCR27,KR27,YR29..MRF199201-199501

LIGHT GRAY,TRIM1#

6777128060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-28060

9018904140

main90189-04140

9351055010

main93510-55010

9354054008

main93540-54008

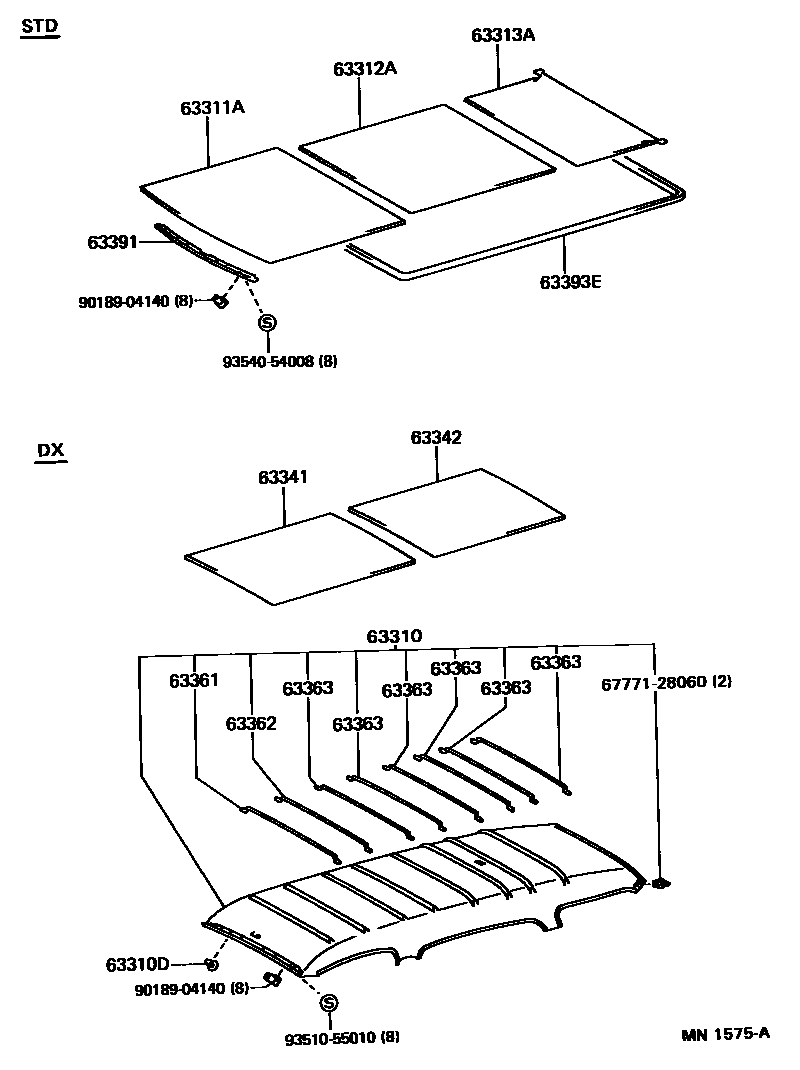

16 parts on this diagram · 1 diagram in section
