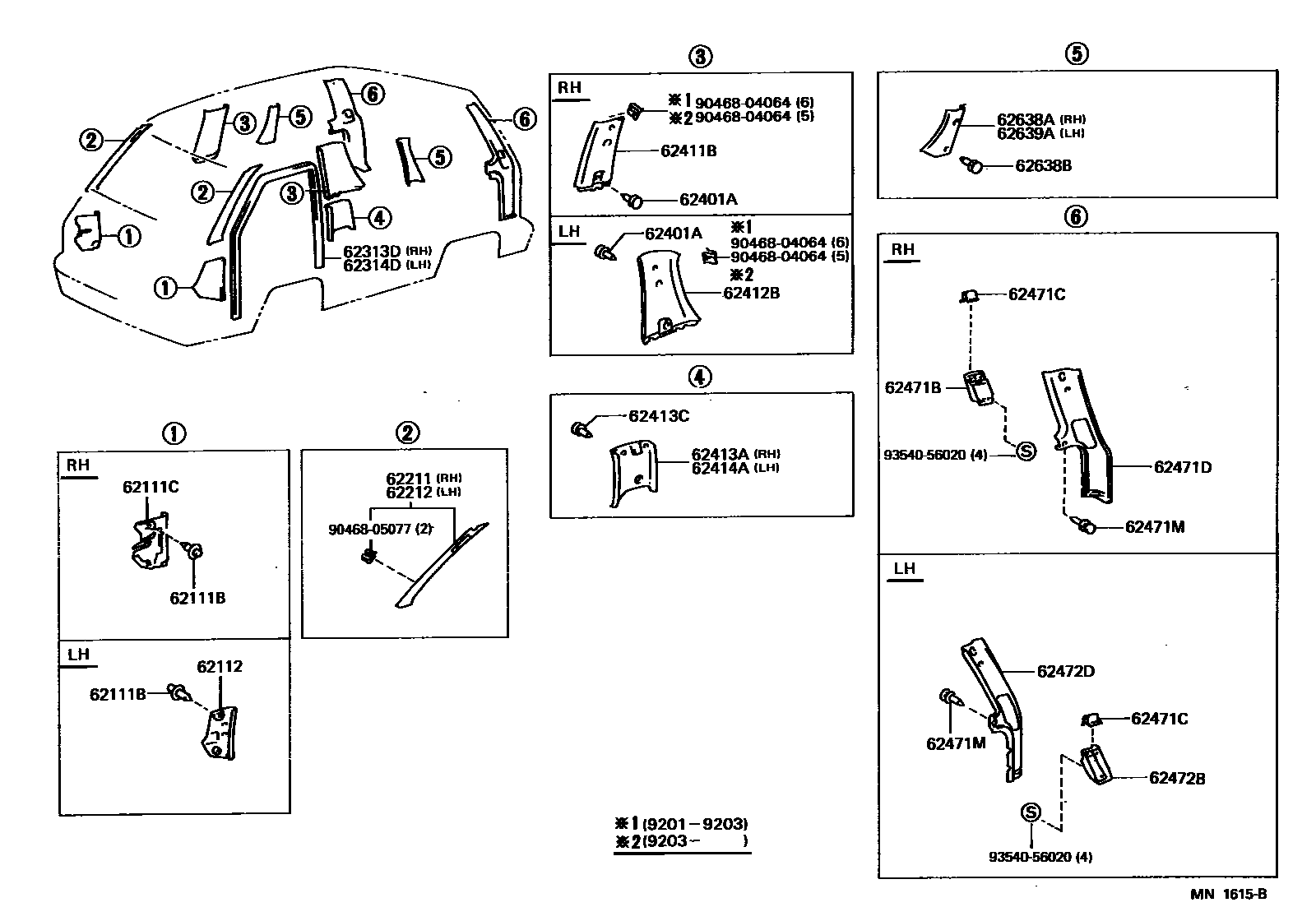

INSIDE TRIM BOARD

0001 1 0002 1 0003 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-07076-B0iCR27,KR27..RHD199201-199501

GRAY,TRIM1#

sub90467-07041

sub90467-07076

sub90467-A0016

62111CBOARD, COWL SIDE TRIM, RH

main62111-28020-B0iKR27..RHD199201-199405

GRAY,TRIM1#

sub62111-28020

main62111-28030-B0iCR27..RHD199201-199501

GRAY,TRIM1#

sub62111-28030

main62111-28050-B0iCR21,KR21,YR22199201-199501

GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-28030-B0iCR21,KR21,YR22199201-199501

GRAY,TRIM1#

62211GARNISH, FRONT PILLAR, RH

main62211-28080-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

main62211-28090-B0iCR27,KR27,YR29199201-199501

LIGHT GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-28080-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

main62212-28090-B0iCR27,KR27,YR29199201-199501

LIGHT GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-28050-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

main62313-28020-B0iCR27,KR27,YR29..LHD199210-199307

LIGHT GRAY,TRIM1#

main62313-28021-B0iCR27,KR27,YR29..LHD199307-199408

GRAY,TRIM1#

main62313-28030-B0iCR27,KR27..RHD199201-199307

LIGHT GRAY,TRIM1#

sub62313-28020

main62313-28031-B0iCR27,KR27..RHD199307-199408

GRAY,TRIM1#

sub62313-28021

main62313-28040iCR27,YR29..LHD199408-199501

main62313-28050iCR27..RHD199408-199501

sub62313-28040

62314DTRIM, FRONT DOOR OPENING, LH

main62312-28050-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

main62313-28020-B0iCR27,KR27,YR29199201-199307

LIGHT GRAY,TRIM1#

main62313-28021-B0iCR27,KR27,YR29199307-199408

GRAY,TRIM1#

main62313-28040iCR27,YR29199408-199501

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-07059-B1iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

sub90467-07059

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-28180-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-28140-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-28020-B0iCR21,KR21,YR22199201-199501

GRAY,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-07059-B0iCR21,KR21,YR22199201-199501

GRAY,TRIM1#

sub90467-07059

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-28030-B0iCR21,KR21,YR22199201-199501

GRAY,TRIM1#

62471BCOVER, REAR PILLAR, RH

main62471-28080-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

62471CCLIP(FOR REAR PILLAR COVER)

main90468-04174-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

62471DGARNISH, REAR PILLAR, UPPER RH

main62471-28060-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

62471MCLIP

main90467-07059-B0iCR21,KR21,YR22199201-199501

GRAY,TRIM1#

sub90467-07059

62472BCOVER, REAR PILLAR, LH

main62472-28080-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

62472DGARNISH, REAR PILLAR, UPPER LH

main62472-28060-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

62638AGARNISH, QUARTER PILLAR, RH

main62638-28120-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

62638BCLIP

main90467-07059-B1iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

sub90467-07059

62639AGARNISH, QUARTER PILLAR, LH

main62639-28130-B0iCR21,KR21,YR22199201-199501

LIGHT GRAY,TRIM1#

9046804064

main90468-04064

9046805077

main90468-05077

9354056020

main93540-56020

25 parts on this diagram · 3 diagrams in section
