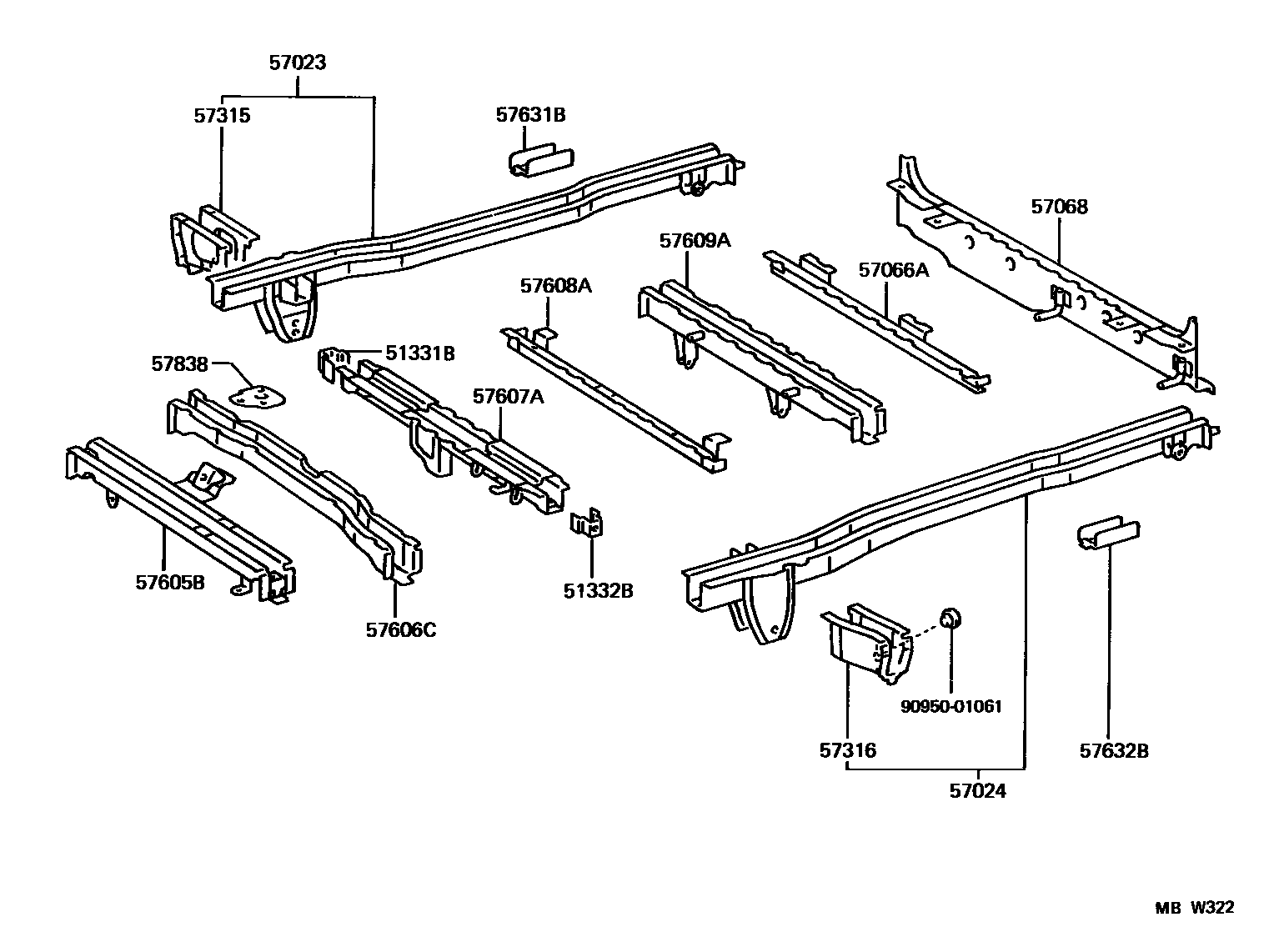

REAR FLOOR PANEL & REAR FLOOR MEMBER
51331BGUSSET, FRAME NO.3 CROSSMEMBER, RH
51332BGUSSET, FRAME NO.3 CROSSMEMBER, LH
57023MEMBER SUB-ASSY, REAR SIDE, RH
ROUGH ROAD PACKAGE
W(4 TIE DOWN HOOK) & ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
W(4 TIE DOWN HOOK) & ROUGH ROAD PACKAGE OR ROUGH ROAD PACKAGE
W(4 TIE DOWN HOOK)
57024MEMBER SUB-ASSY, REAR SIDE, LH
W(4 TIE DOWN HOOK)
ROUGH ROAD PACKAGE
W(4 TIE DOWN HOOK) & ROUGH ROAD PACKAGE
W(4 TIE DOWN HOOK)
ROUGH ROAD PACKAGE
W(4 TIE DOWN HOOK) & ROUGH ROAD PACKAGE
57066AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
57315OUTRIGGER, NO.3 RH
57316OUTRIGGER, NO.3 LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
ROUGH ROAD PACKAGE
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
W/O(REAR NO.1 SEAT)
W/O(REAR NO.1 SEAT)
57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
ROUGH ROAD PACKAGE
57609AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
ROUGH ROAD PACKAGE
ROUGH ROAD PACKAGE
57631BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH
57632BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH
57838REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
9095001061
main90950-01061
17 parts on this diagram · 4 diagrams in section
