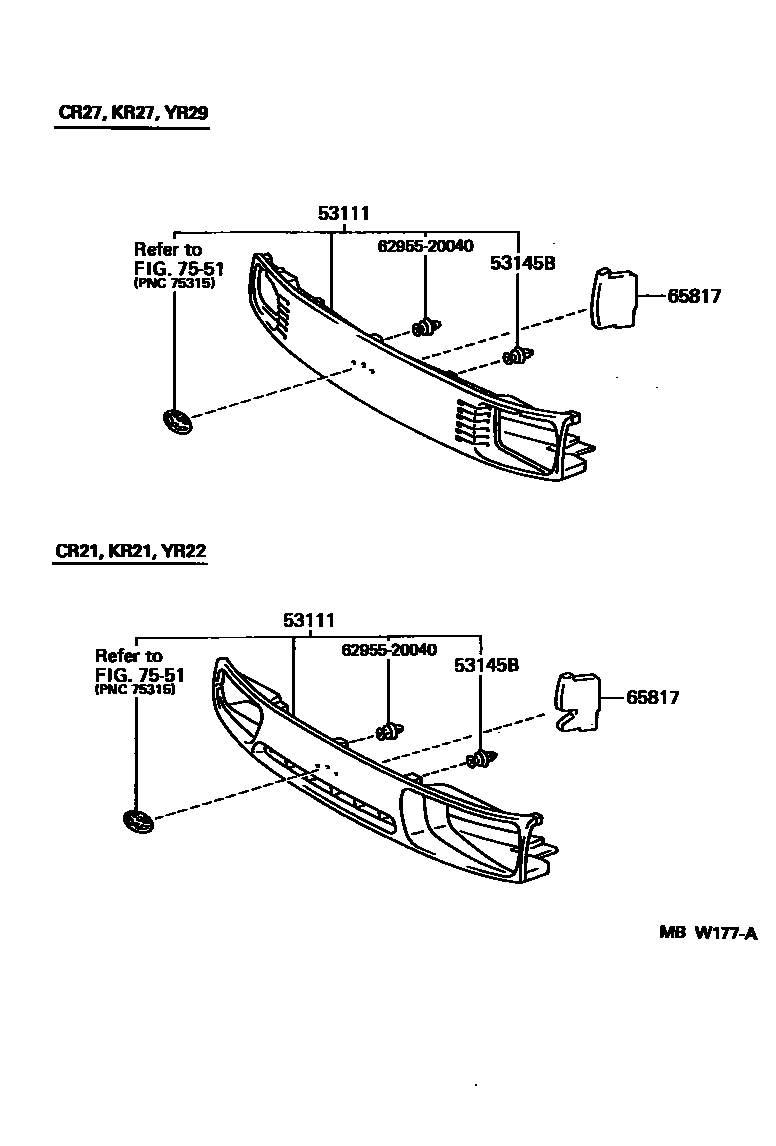

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53100-28030iCR21,KR21,YR22199201-199408

sub53100-28080

main53100-28040iCR27,KR27,YR29199201-199408

sub53100-28070

main53100-28070iCR27,YR29199408-199501

main53100-28080iCR21,YR22199408-199501

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-28010iCR2#,KR2#,YR2#199201-199501

65817PAD, COVER TOP PANEL END

main65817-28020iCR21,KR21,YR22199201-199501

main65817-28030iCR27,KR27,YR29199201-199501

7551

6295520040SEAL, ROOF SIDE VENT

main62955-20040

5 parts on this diagram · 1 diagram in section
