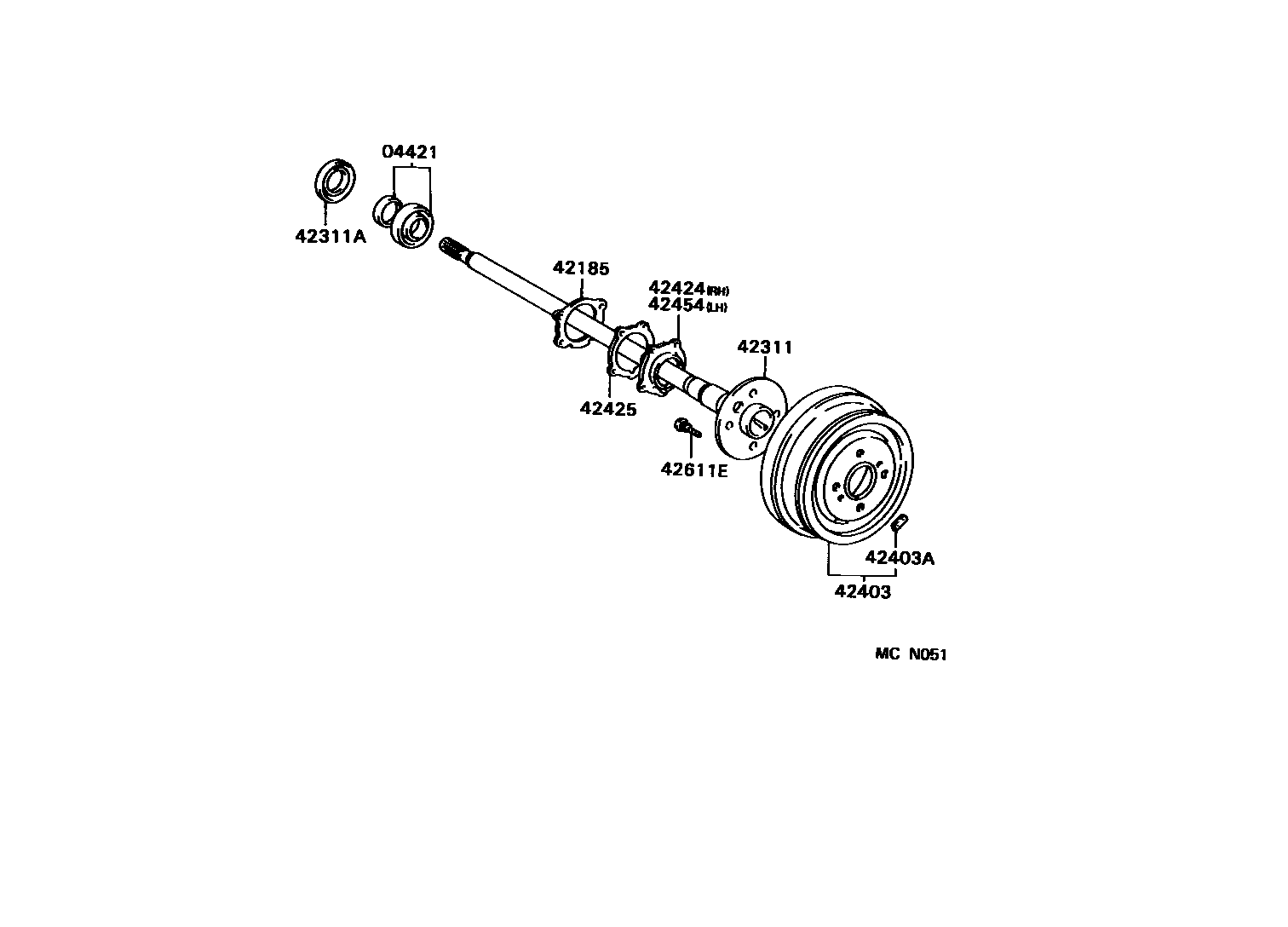

REAR AXLE SHAFT & HUB

04421BEARING KIT, REAR AXLE SHAFT

main04421-12020×2iCR2#,KR2#199212-199501

main04421-27021×2iCR2#,KR2#199201-199212

main04421-30030×2iYR2#199201-199501

42185GASKET, REAR AXLE HOUSING END

main42185-28010×2iCR2#,KR2#199201-199501

main42185-30061×2iYR2#199201-199501

42311SHAFT, REAR AXLE

main42311-22110×2iCR2#,KR2#199201-199501

main42311-28020×2iYR2#199201-199501

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059×2iCR2#,KR2#,YR2#199201-199501

42403DRUM SUB-ASSY, REAR BRAKE

main42431-28020×2iCR2#,KR2#,YR2#199201-199501

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117×2iCR2#,KR2#,YR2#199201-199501

10G

main90937-01118×2iCR2#,KR2#,YR2#199201-199501

20G

main90937-01119×2iCR2#,KR2#,YR2#199201-199501

30G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iCR2#,KR2#199201-199501

main42424-30040iYR2#199201-199501

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020×2iCR2#,KR2#199201-199501

main42425-30031×2iYR2#199201-199501

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-30040iYR2#199201-199501

main42454-14010iCR2#,KR2#199201-199501

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iCR2#,KR2#,YR2#199201-199501

10 parts on this diagram · 1 diagram in section
