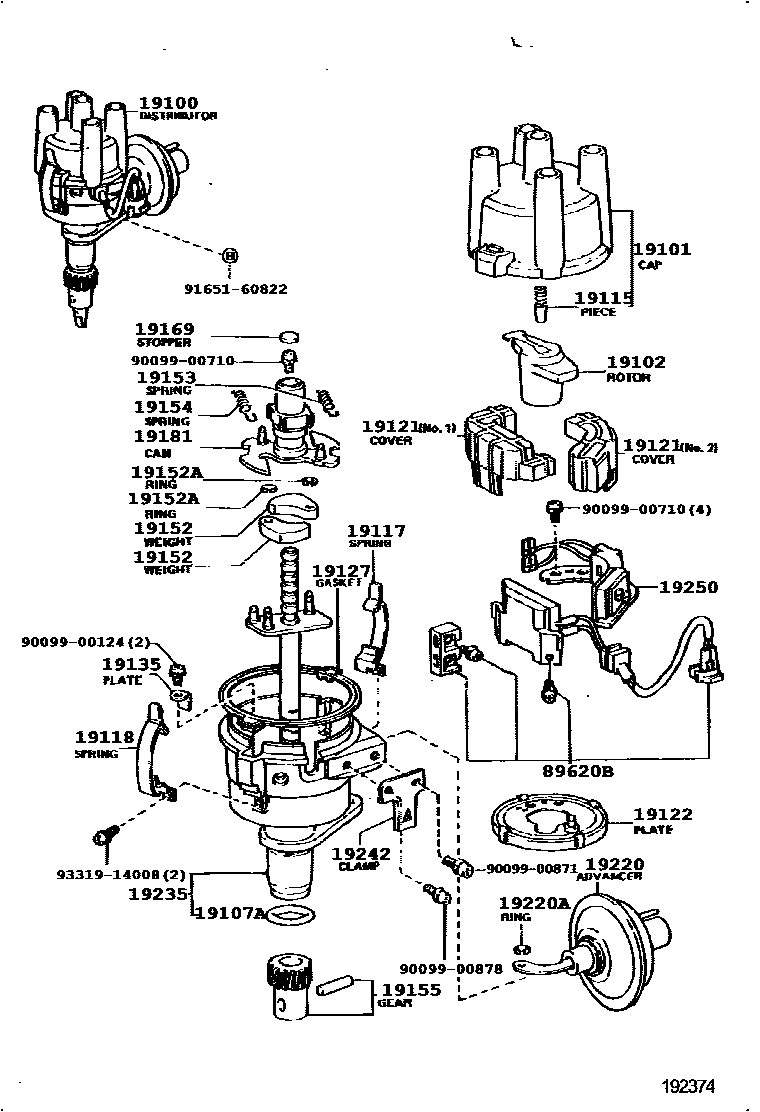

DISTRIBUTOR
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
19115PIECE, DISTRIBUTOR CAP, CENTER
19117SPRING, DISTRIBUTOR CAP, A
19118SPRING, DISTRIBUTOR CAP, B
19121COVER, DUST PROOF
NO.2
NO.1
19122PLATE, STATIONARY, DISTRIBUTOR
19127PACKING, DUST PROOF
NO.1
NO.2
19135PLATE, HOLDER
19152WEIGHT, GOVERNOR
19152ARING, SNAP(FOR GOVERNOR WEIGHT)
19153SPRING, GOVERNOR, A
19154SPRING, GOVERNOR, B
19155GEAR, SPIRAL, DISTRIBUTOR
19169STOPPER, CAM GREASE
19181ROTOR, DISTRIBUTOR, SIGNAL
19220ADVANCER ASSY, VACUUM, DISTRIBUTOR
19220ARING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER)
19235HOUSING, DISTRIBUTOR
19242CLAMP, CORD
NO.2
NO.1
19250GENERATOR ASSY, SIGNAL
89620BIGNITER ASSY
9009900124
main90099-00124
9009900710
main90099-00710
9009900871
main90099-00871
9009900878
main90099-00878
9165160822
main91651-60822
9331914008
main93319-14008
30 parts on this diagram · 2 diagrams in section
