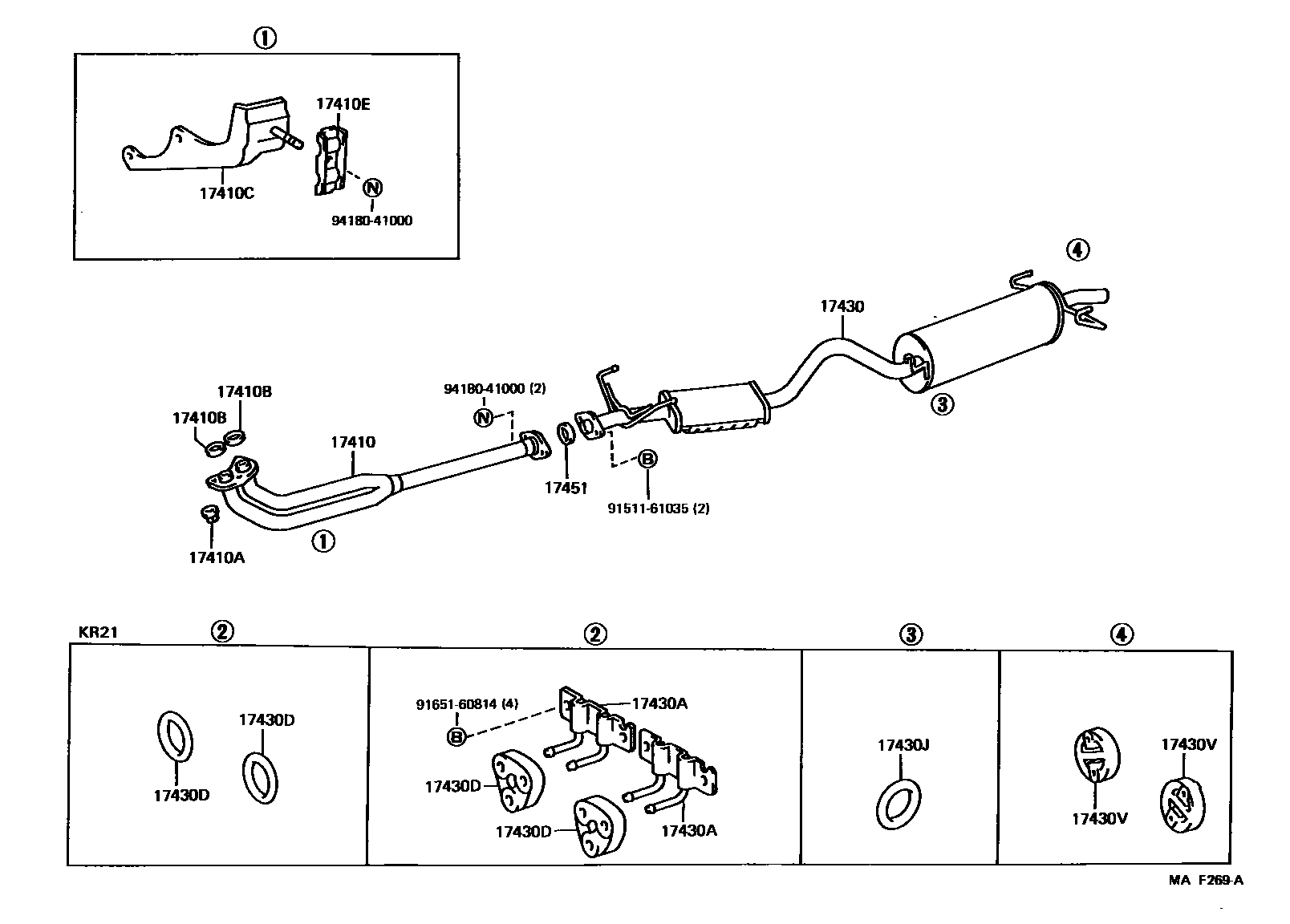

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-13150i5K..KR21199201-199405

main17401-13160i5K..KR27..RHD199201-199405

main17401-13170i5K..KR27..LHD199201-199405

main17401-73090i4YEC..YR2#199201-199501

main17410-64341i2C..CR27199201-199501

main17410-64540i2C..CR21; 2C..CR27..LHD..02S199201-199501

AUSTRIA SPEC

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×2i2C..CR2#; 5K,4YEC..KR2#,YR2#199201-199501

17410BGASKET, EXHAUST PIPE

main90917-06061i2C..CR2#199201-199501

main90917-06064×2i4YEC..YR2#199201-199501

main90917-06069×2i5K..KR2#199201-199405

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-13211i5K..KR2#199201-199405

main17571-64110i2C..CR2#199201-199501

main17571-73120i4YEC..YR2#199201-199501

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main17599-13010i5K..KR2#199201-199405

17430PIPE ASSY, EXHAUST, TAIL

main17405-13160i5K..KR21199201-199405

main17405-64150i2C..CR21199201-199501

main17405-64180i2C..CR27199201-199501

main17405-73113i4YEC..YR29199201-199405

main17405-73133i4YEC..YR22199201-199408

main17405-73230i5K..KR27199201-199405

main17430-73470i4YEC..YR22199408-199501

main17430-73480i4YEC..YR29199408-199501

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17562-72091×2i5K,4YEC..KR27,YR29199201-199501

main17572-64010×2i2C..CR2#199201-199501

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-13030×2i4YEC..YR29199201-199501

main17565-15140×2i2C..CR2#199201-199501

main17566-35010×2i5K..KR27199201-199405

main90301-33001×2i5K,4YEC..KR21,YR22199201-199501

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-34207i2C,5K,4YEC..CR21,KR21,YR22199201-199501

main90301-36002i2C,5K,4YEC..CR27,KR27,YR29199201-199501

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17561-73020×2i4YEC..YR29199201-199501

main17565-15140×2i2C,5K,4YEC..CR2#,KR2#,YR22199201-199501

17451GASKET, EXHAUST PIPE

main90917-06039i5K..KR21199201-199405

main90917-06041i4YEC..YR2#199201-199501

FR

main90917-06044i2C,5K..CR2#,KR27; 4YEC..YR29199201-199501

RR

main90917-06045i4YEC..YR22199201-199501

RR

9151161035

main91511-61035

9165160814

main91651-60814

9418041000

main94180-41000

14 parts on this diagram · 4 diagrams in section
