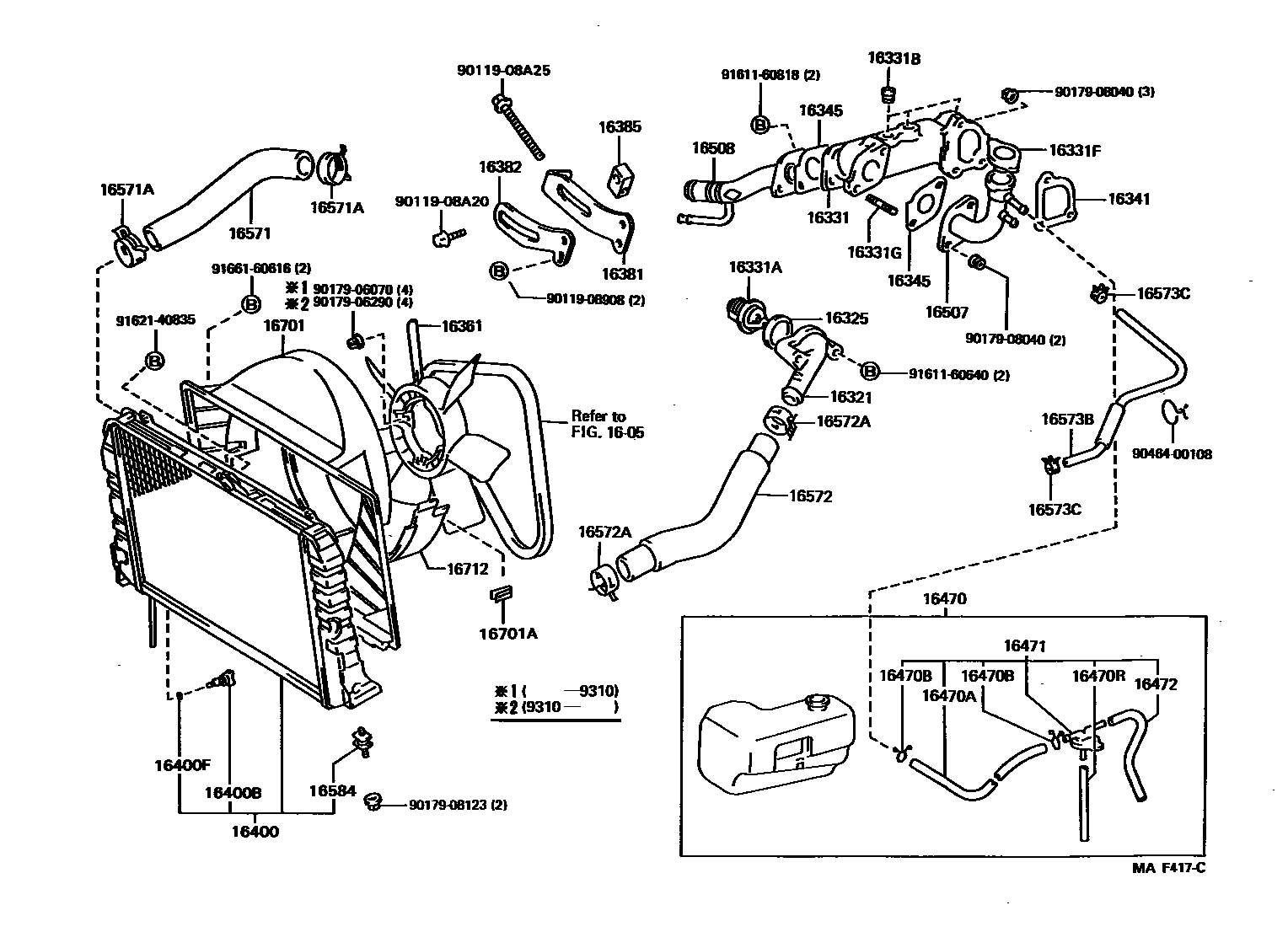

RADIATOR & WATER OUTLET
1605
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 88-100,COLD SPEC
*WAX 82-95
16331BPLUG(FOR WATER OUTLET)
16331GBOLT, STUD(FOR WATER INLET)
16341GASKET, WATER OUTLET
16345GASKET, WATER OUTLET PIPE
16381BAR, FAN BELT ADJUSTING
16382LOCK, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
L=400
L=400,NO.2
L=600
L=600,NO.3
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
L=60
16507PIPE SUB-ASSY, RADIATOR
16508PIPE SUB-ASSY, RADIATOR, NO.2
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90466-30001
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-37003
16573BHOSE, RADIATOR, NO.3
16584INSULATOR, RADIATOR MOUNTING
16701ACLIP(FOR FAN SHROUD)
9011908908
main90119-08908
9011908A20
main90119-08A20
9011908A25
main90119-08A25
9017906070
main90179-06070
9017906290
main90179-06290
9017908040
main90179-08040
9017908123
main90179-08123
9046400108
main90464-00108
9161160640
main91611-60640
9161160818
main91611-60818
9162140835
main91621-40835
9166160616
main91661-60616
47 parts on this diagram · 4 diagrams in section
