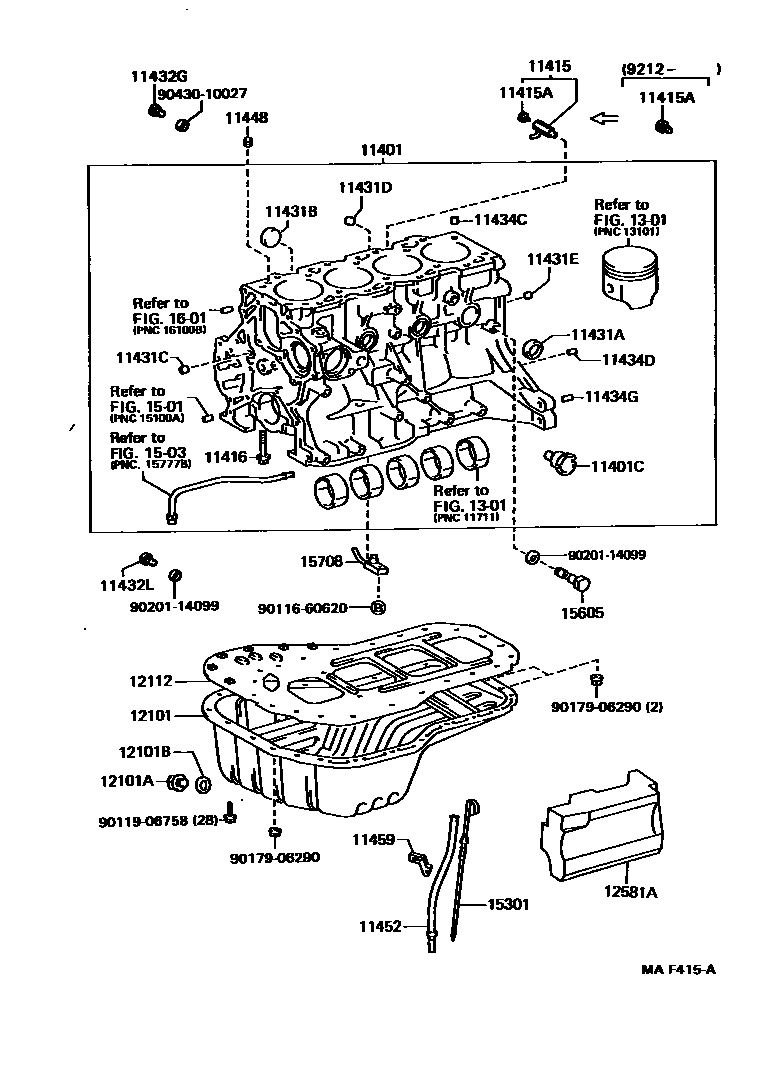

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19335i5K..KR2#199201-199405

main11401-69465i2C..CR2#199201-199209

main11401-69466i2C..CR2#199209-199501

main11401-79206i4YEC..YR2#199201-199501

11401CFLANGE(FOR WATER BY-PASS)

main16353-64010i2C..CR2#199201-199204

main16353-64011i2C..CR2#199204-199501

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i2C..CR2#199201-199212

main96431-53828i4YEC..YR2#; 5K..KR2#199201-199501

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52003i2C..CR2#199212-199501

main90910-09087i2C..CR2#199201-199212

main96432-23814i4YEC..YR2#; 5K..KR2#199201-199501

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02019×10i5K..KR2#199201-199405

main90910-02032×10i4YEC..YR2#199201-199501

main90910-02061×10i2C..CR2#199201-199501

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-47025i5K..KR2#199201-199405

main96411-01800i4YEC..YR2#199201-199501

main96411-43500×4i2C..CR2#199201-199501

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000×4i2C..CR2#199201-199501

main96411-43500×5i4YEC..YR2#199201-199501

main96411-44500i5K..KR2#199201-199405

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-41800i2C..CR2#199201-199501

main96411-43500×3i5K..KR2#199201-199405

main96411-45000i4YEC..YR2#199201-199501

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-41800i2C..CR2#199201-199501

main96411-45000i4YEC..YR2#199201-199501

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-41800×3i2C..CR2#199201-199501

main96412-01800i5K..KR2#199201-199405

11432GPLUG, W/HEAD STRAIGHT SCREW, NO.5

main90341-10002i2C..CR2#199309-199501

11432LPLUG, W/HEAD STRAIGHT SCREW, NO.4(FOR CYLINDER BLOCK)

main90341-14032i2C..CR2#199309-199501

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×2i5K..KR2#199201-199405

L=18,OD=8

main90253-14001×2i2C..CR2#199201-199208

L=9,OD=14

main90253-14002×2i2C..CR2#199208-199501

L=16,OD=14

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06068×2i2C..CR2#199201-199501

L=11,OD=6

main90250-08120×2i5K..KR2#199201-199405

L=18,OD=8

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i2C..CR2#199201-199501

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2C..CR2#199201-199209

main11448-64020i2C..CR2#199209-199501

11452GUIDE, OIL LEVEL GAGE

main11452-13030i5K..KR2#199201-199405

main11452-64020i2C..CR2#199201-199408

main11452-64021i2C..CR2#199408-199501

main11452-71020i4YEC..YR2#199201-199501

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-71011i4YEC..YR2#199201-199501

main90929-01026i2C..CR2#199201-199501

12101PAN SUB-ASSY, OIL

main12101-13070i5K..KR2#199201-199405

main12101-64070i2C..CR2#199201-199309

main12101-64071i2C..CR2#199309-199408

main12101-64072i2C..CR2#199408-199501

main12101-71031i4YEC..YR2#199201-199501

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2C..CR2#; 4YEC..YR2#; 5K..KR2#199201-199208

main90341-12026i2C..CR2#199208-199501

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12027i2C..CR2#; 4YEC..YR2#; 5K..KR2#199201-199304

main90430-12031i2C..CR2#199304-199312

12112PAN, OIL NO.2

main12112-64050i2C..CR2#199201-199306

main12112-64051i2C..CR2#199306-199501

12581AINSULATOR, CYLINDER BLOCK, NO.1

main12581-64010i2C..CR2#199201-199501

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

1501ENGINE OIL PUMP

→ Go to FIG 15-01

1503ENGINE OIL COOLER

→ Go to FIG 15-03

15301GAGE SUB-ASSY, OIL LEVEL

main15301-13040i5K..KR2#199201-199405

main15301-64051i2C..CR2#199201-199408

main15301-64052i2C..CR2#199408-199501

main15301-71020i4YEC..YR2#199201-199501

15605VALVE SUB-ASSY, OIL CHECK

main15605-64020i2C..CR2#199201-199501

15708NOZZLE SUB-ASSY, OIL, NO.1

main15790-64021×4i2C..CR2#199201-199501

1601WATER PUMP

→ Go to FIG 16-01

9011660620

main90116-60620

9011906758

main90119-06758

9017906290

main90179-06290

9020114099

main90201-14099

9043010027

main90430-10027

35 parts on this diagram · 3 diagrams in section
