ENGINE OVERHAUL GASKET KIT

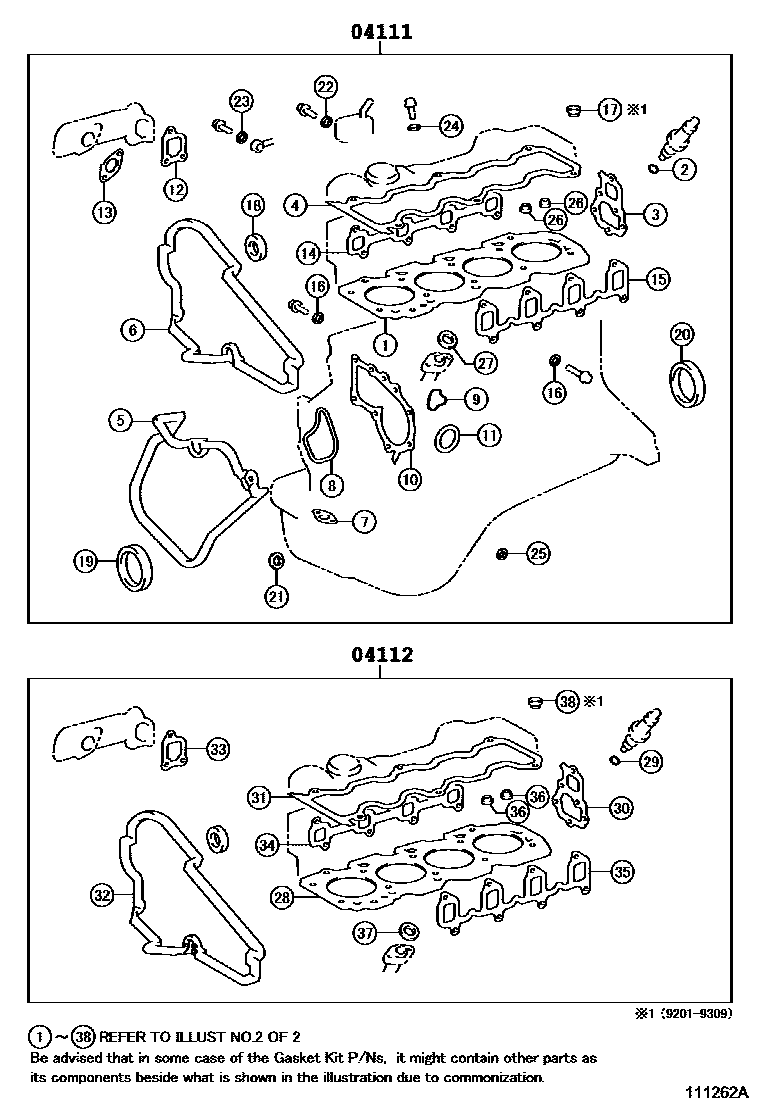

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-13044i199201-199405

main04111-64176i199201-199309

main04111-64230i199309-199501

main04111-73036i199201-199501

04112GASKET KIT, ENGINE VALVE GRIND

main04112-13022i199201-199405

main04112-64114i199201-199309

main04112-64170i199309-199501

main04112-73035i199201-199501

2 parts on this diagram · 4 diagrams in section
