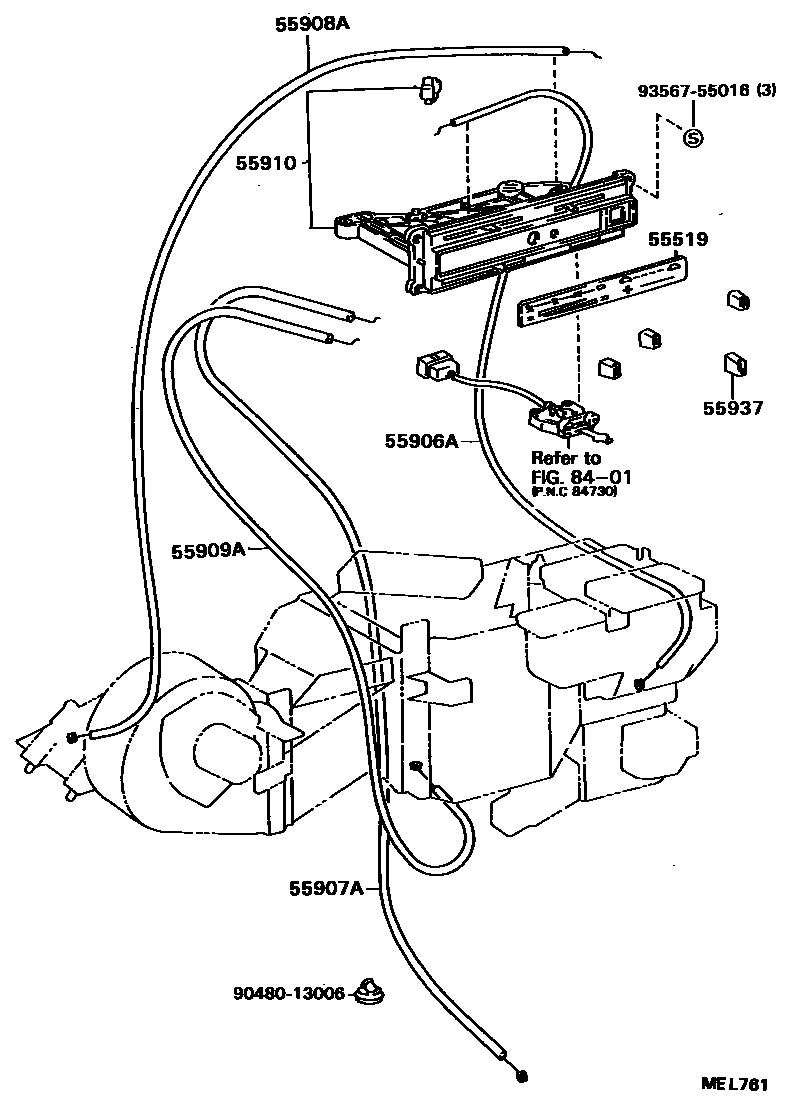

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1FRONT CONTROL 0002 1REAR CONTROL 0003 1FRONT DUCT 0004 1FRONT DUCT 0005 1REAR DUCT 0006 1REAR DUCT

55519PLATE, HEATER CONTROL NAME

main55519-28071iYR2#,31..LHD198808-199001

main55519-87013iYR21..RHD198808-199001

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-28030iYR2#,31..LHD198808-199001

main55906-87004iYR21..RHD198808-199001

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-28011iYR2#,31..LHD198808-199001

main55907-95D00iYR21..RHD198808-199001

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-87004iYR2#,31198808-199001

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-28011iYR2#,31..LHD198808-199001

main55909-95D00iYR21..RHD198808-199001

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-28030iYR2#,31198808-199001

55937KNOB, HEATER CONTROL LEVER

main55905-12080iYR2#,31198808-199001

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9048013006

main90480-13006

9356755016

main93567-55016

10 parts on this diagram · 6 diagrams in section
