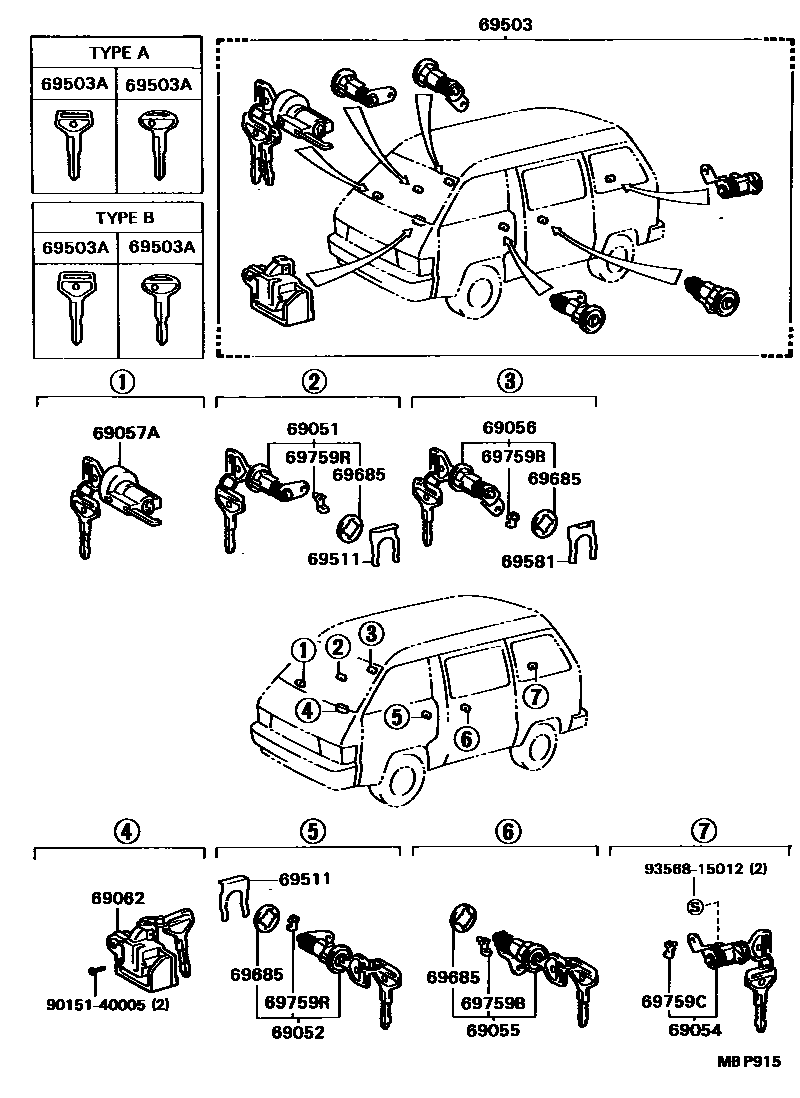

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69054CYLINDER & KEY SET, BACK DOOR LOCK
69055CYLINDER & KEY SET, REAR DOOR LOCK, LH
69056CYLINDER & KEY SET, REAR DOOR LOCK, RH
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY,W(*68)
SUB KEY,W(*68)
MASTER KEY,W(*68)
W(*68)
69511RETAINER, FRONT DOOR LOCK CYLINDER
69581RETAINER, FUEL FILLER LID CYLINDER
69685PAD, LOCK CYLINDER
sub69513-32010
69759BSNAP, REAR DOOR LOCK CYLINDER
69759CSNAP, BACK DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
RH
LH
LH
RH
9015140005
main90151-40005
9356815012
main93568-15012
17 parts on this diagram · 1 diagram in section
