EPC Data

INSIDE TRIM BOARD

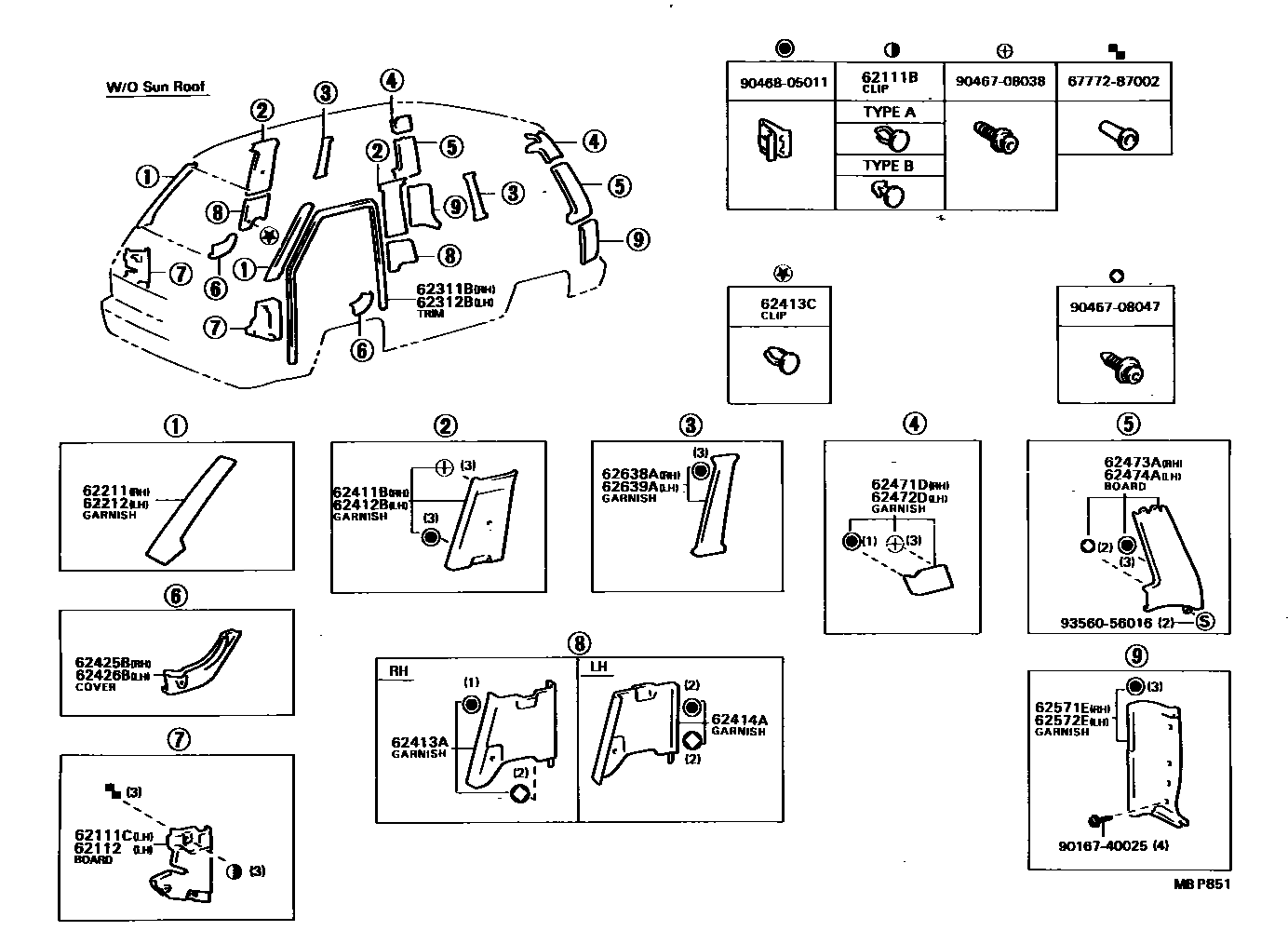

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-08065-03i198808-199001
SHADOW GRAY,TRIM1#,TYPE A
sub90467-08065
main90467-08065-16i198808-199001
BROWN,TRIM4#,TYPE A
sub90467-08065
main90467-12078-13i198808-199001
SHADOW GRAY,TRIM1#,TYPE B
sub90467-12078
main90467-12078-56i198808-199001
BROWN,TRIM4#,TYPE B
sub90467-12078
62111CBOARD, COWL SIDE TRIM, RH
main62111-28010-13i198808-199001
SHADOW GRAY,TRIM1#
sub62111-28010
main62111-28010-16i198808-199001
SABLE,TRIM4#
sub62111-28010
main62111-87005-13i198808-199001
SHADOW GRAY,TRIM1#
sub62111-87005
main62111-87005-16i198808-199001
SABLE,TRIM4#
sub62111-87005
62112BOARD, COWL SIDE TRIM, LH
main62112-87003-13i198808-199001
SHADOW GRAY,TRIM1#
sub62112-87003
main62112-87003-16i198808-199001
SABLE,TRIM4#
sub62112-87003
62211GARNISH, FRONT PILLAR, RH
main62211-87004-06i198808-199001
SABLE,TRIM4#
sub62211-87004
main62211-87004-13i198808-199001
GRAY,TRIM1#
sub62211-87004
62212GARNISH, FRONT PILLAR, LH
main62212-87004-06i198808-199001
SABLE,TRIM4#
sub62212-87004
main62212-87004-13i198808-199001
GRAY,TRIM1#
sub62212-87004
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-28030-03i198808-199001
GRAY,TRIM1#
main62311-28030-06i198808-199001
LIGHT SABLE,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-28030-03i198808-199001
GRAY,TRIM1#
main62312-28030-06i198808-199001
LIGHT SABLE,TRIM4#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-28010-06i198808-199001
W(TWIN SUN ROOF),SABLE,TRIM4#
sub62410-28010
main62410-28010-13i198808-199001
W(TWIN SUN ROOF),GRAY,TRIM1#
sub62410-28010
main62410-87010-06i198808-199001
W(TWIN SUN ROOF),SABLE,TRIM4#
sub62410-87010
main62410-87010-13i198808-199001
W(TWIN SUN ROOF),GRAY,TRIM1#
sub62410-87010
main62411-28010-03i198808-199001
GRAY,TRIM1#
sub62411-28010
main62411-28020-06i198808-199001
SABLE,TRIM4#
sub62411-28020
main62411-28020-13i198808-199001
GRAY,TRIM1#
sub62411-28020
main62411-87021-06i198808-199001
SABLE,TRIM4#
sub62411-87021
main62411-87021-13i198808-199001
GRAY,TRIM1#
sub62411-87021
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-28010-03i198808-199001
GRAY,TRIM1#
sub62412-28010
main62412-28020-06i198808-199001
SABLE,TRIM4#
sub62412-28020
main62412-28020-13i198808-199001
GRAY,TRIM1#
sub62412-28020
main62412-87017-06i198808-199001
SABLE,TRIM4#
sub62412-87017
main62412-87017-13i198808-199001
GRAY,TRIM1#
sub62412-87017
main62420-28010-06i198808-199001
W(TWIN SUN ROOF),SABLE,TRIM4#
sub62420-28010
main62420-28010-13i198808-199001
W(TWIN SUN ROOF),GRAY,TRIM1#
sub62420-28010
main62420-87009-03i198808-199001
W(TWIN SUN ROOF),GRAY,TRIM1#
sub62420-87009
main62420-87009-06i198808-199001
W(TWIN SUN ROOF),SABLE,TRIM4#
sub62420-87009
62413AGARNISH, CENTER PILLAR, LOWER RH
main62041-28010-06i198808-199001
SABLE,TRIM4#
main62041-28010-23i198808-199001
SHADOW GRAY,TRIM1#
main62041-87001-06i198808-199001
SABLE,TRIM4#
main62041-87001-23i198808-199001
SHADOW GRAY,TRIM1#
main62413-28010-03i198808-199001
GRAY,TRIM1#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90044-68035-06i198808-199001
BROWN,TRIM4#
sub90044-68035
main90044-68035-13i198808-199001
SHADOW GRAY,TRIM1#
sub90044-68035
62414AGARNISH, CENTER PILLAR, LOWER LH
main62042-28010-06i198808-199001
SABLE,TRIM4#
main62042-28010-23i198808-199001
SHADOW GRAY,TRIM1#
main62042-87001-06i198808-199001
SABLE,TRIM4#
main62042-87001-23i198808-199001
SHADOW GRAY,TRIM1#
main62414-28010-03i198808-199001
GRAY,TRIM1#
62425BCOVER, CENTER PILLAR GARNISH, NO.3 RH
main62425-87001-03i198808-199001
GRAY,TRIM1#
sub62425-87001
main62425-87001-13i198808-199001
SHADOW GRAY,TRIM1#
sub62425-87001
main62425-87001-16i198808-199001
LIGHT BROWN,TRIM4#
sub62425-87001
main62425-87001-26i198808-199001
SABLE,TRIM4#
sub62425-87001
62426BCOVER, CENTER PILLAR GARNISH, NO.3 LH
main62426-87001-03i198808-199001
GRAY,TRIM1#
sub62426-87001
main62426-87001-13i198808-199001
SHADOW GRAY,TRIM1#
sub62426-87001
main62426-87001-16i198808-199001
LIGHT BROWN,TRIM4#
sub62426-87001
main62426-87001-26i198808-199001
SABLE,TRIM4#
sub62426-87001
62471DGARNISH, REAR PILLAR, UPPER RH
main62471-87004-03i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,GRAY,TRIM1#
sub62471-87004
main62471-87004-06i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,LIGHT SABLE,TRIM4#
sub62471-87004
main62471-87018-03i198808-199001
GRAY,TRIM1#
sub62471-87018
main62471-87018-06i198808-199001
LIGHT SABLE,TRIM4#
sub62471-87018
main62471-87024-03i198808-199001
W(TWIN SUN ROOF),GRAY,TRIM1#
sub62471-87024
main62471-87024-06i198808-199001
W(TWIN SUN ROOF),LIGHT SABLE,TRIM4#
sub62471-87024
62472DGARNISH, REAR PILLAR, UPPER LH
main62472-87004-03i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,GRAY,TRIM1#
sub62472-87004
main62472-87004-06i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,LIGHT SABLE,TRIM4#
sub62472-87004
main62472-87018-03i198808-199001
GRAY,TRIM1#
sub62472-87018
main62472-87018-06i198808-199001
LIGHT SABLE,TRIM4#
sub62472-87018
main62472-87024-03i198808-199001
W(TWIN SUN ROOF),GRAY,TRIM1#
sub62472-87024
main62472-87024-06i198808-199001
W(TWIN SUN ROOF),LIGHT SABLE,TRIM4#
sub62472-87024
62473ABOARD, REAR PILLAR, RH
main62473-87001-03i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,GRAY,TRIM1#
sub62473-87001
main62473-87001-06i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,LIGHT SABLE,TRIM4#
sub62473-87001
main62473-87003-03i198808-199001
GRAY,TRIM1#
sub62473-87003
main62473-87003-06i198808-199001
LIGHT SABLE,TRIM4#
sub62473-87003
62474ABOARD, REAR PILLAR, LH
main62474-87001-03i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,GRAY,TRIM1#
sub62474-87001
main62474-87001-06i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,LIGHT SABLE,TRIM4#
sub62474-87001
main62474-87003-03i198808-199001
GRAY,TRIM1#
sub62474-87003
main62474-87003-06i198808-199001
LIGHT SABLE,TRIM4#
sub62474-87003
62571EGARNISH, REAR PILLAR, LOWER RH
main62571-87002-03i198808-199001
GRAY,TRIM1#
sub62571-87002
main62571-87002-06i198808-199001
LIGHT SABLE,TRIM4#
sub62571-87002
62572EGARNISH, REAR PILLAR, LOWER LH
main62572-87002-03i198808-199001
GRAY,TRIM1#
sub62572-87002
main62572-87002-06i198808-199001
LIGHT SABLE,TRIM4#
sub62572-87002
62638AGARNISH, QUARTER PILLAR, RH
main62638-28010-03i198808-199001
GRAY,TRIM1#
sub62638-28010
main62638-28020-06i198808-199001
SABLE,TRIM4#
sub62638-28020
main62638-28020-13i198808-199001
GRAY,TRIM1#
sub62638-28020
main62638-28040-06i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,SABLE,TRIM4#
sub62638-28040
main62638-28040-13i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,GRAY,TRIM1#
sub62638-28040
main62638-87004-06i198808-199001
SABLE,TRIM4#
sub62638-87004
main62638-87004-13i198808-199001
GRAY,TRIM1#
sub62638-87004
62639AGARNISH, QUARTER PILLAR, LH
main62639-28010-03i198808-199001
GRAY,TRIM1#
sub62639-28010
main62639-28020-06i198808-199001
SABLE,TRIM4#
sub62639-28020
main62639-28020-13i198808-199001
GRAY,TRIM1#
sub62639-28020
main62639-28040-06i198808-199001
NORWAY N1 CATEGORY OR DENMARK N1 CATEGORY,SABLE,TRIM4#
sub62639-28040
main62639-87003-06i198808-199001
SABLE,TRIM4#
sub62639-87003
main62639-87003-13i198808-199001
GRAY,TRIM1#
sub62639-87003
6777287002WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-87002
9016740025
main90167-40025
9046708038
main90467-08038
9046708047
main90467-08047
9046805011
main90468-05011
9356056016
main93560-56016

28 parts on this diagram · 4 diagrams in section
