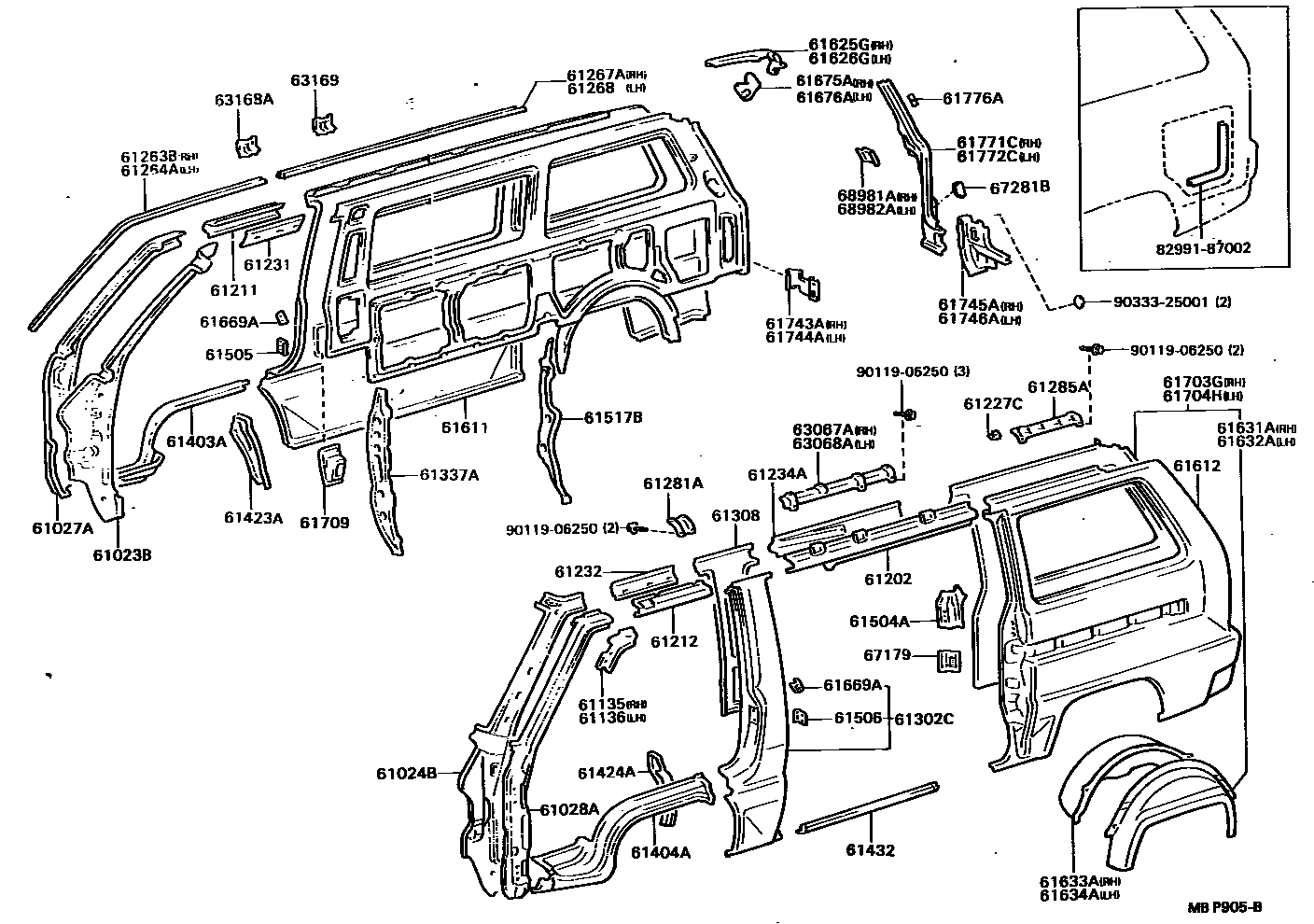

SIDE MEMBER

0001 1 0002 1 0003 1

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-28020iYR2#,31..LHD198808-199001

main61023-87014iYR21..RHD198808-199001

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-28020iYR2#,31..LHD198808-199001

main61024-87010iYR21..RHD198808-199001

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-87005iYR2#,31198808-199001

main61027-87006iYR21..RHD198808-199001

W(RADIO)

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-28020iYR2#,31..LHD198808-199001

W(RADIO)

main61028-87006iYR2#,31198808-199001

61135REINFORCEMENT, FRONT BODY PILLAR, UPPER RH

main61135-87001iYR2#,31198808-199001

61136REINFORCEMENT, FRONT BODY PILLAR, UPPER LH

main61136-87001iYR2#,31198808-199001

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-87009iYR21..RHD198808-199001

main61202-87010iYR21..RHD198808-199001

W(TWIN SUN ROOF)

61211RAIL, ROOF SIDE, OUTER RH

main61211-87005iYR2#,31198808-199001

61212RAIL, ROOF SIDE, OUTER LH

main61212-87007iYR2#,31198808-199001

61227CBRACKET, REAR DOOR RAIL

main61227-87001iYR21..RHD198808-199001

61231RAIL, ROOF SIDE, INNER RH

main61231-87003iYR2#,31198808-199001

61232RAIL, ROOF SIDE, INNER LH

main61232-87003iYR2#,31198808-199001

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61208-87002iYR21..RHD198808-199001

W(TWIN SUN ROOF)

main61234-87003iYR21..RHD198808-199001

61263BCHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-87004iYR2#,31198808-199001

61264ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-87004iYR2#,31198808-199001

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-87003iYR2#,31198808-199001

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-87003iYR2#,31198808-199001

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-87001×2iYR2#..LHD..GL; YR21..RHD198808-199001

61285ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.4

main61285-87001×2iYR2#..LHD..GL; YR21..RHD198808-199001

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-87004iYR21..RHD198808-199001

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-87029iYR21..RHD198808-199001

main61308-87036iYR21..RHD198808-199001

W(ROOF RAIL)

61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH

main61337-87001iYR21..RHD198808-199001

61403APANEL SUB-ASSY, FENDER, RH

main61403-87007iYR2#,31198808-199001

61404APANEL SUB-ASSY, FENDER, LH

main61404-87006iYR2#,31198808-199001

61423APANEL, FENDER, INNER LOWER RH

main61423-87001iYR2#,31198808-199001

61424APANEL, FENDER, INNER LOWER LH

main61424-87001iYR2#,31198808-199001

61432PANEL, ROCKER, OUTER REAR LH

main61431-87001iYR21..RHD198808-199001

61504AREINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH

main61504-87001iYR21..RHD198808-199001

61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH

main61505-87001iYR2#,31198808-199001

61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

main61505-87001iYR2#,31198808-199001

61517BREINFORCEMENT, QUARTER LOCK PILLAR, RH

main61517-87001iYR21..RHD198808-199001

61611PANEL, QUARTER, RH

main61611-28020iYR2#,31..LHD198808-199001

main61611-87013iYR21..RHD198808-199001

61612PANEL, QUARTER, LH

main61612-28030iYR2#,31..LHD198808-199001

main61612-87007iYR21..RHD198808-199001

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-87002iYR2#,31..DLX; YR2#,31..GL198808-199001

W(REAR WINDOW WIPER)

main61625-87003iYR2#,31..DLX198808-199001

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-87002iYR2#,31198808-199001

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-87003iYR2#,31198808-199001

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-87003iYR2#,31198808-199001

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-87031iYR2#,31198808-199001

main61633-87002iYR2#..LHD..GL198808-199001

W(TWIN SUN ROOF)

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-87002iYR2#,31198808-199001

61669ARETAINER, FRONT DOOR OPEN SWITCH SET

main61669-87001iYR2#,31198808-199001

61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH

main61675-28010iYR2#,31198808-199001

61676AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH

main61676-28010iYR2#,31198808-199001

61703GPANEL SUB-ASSY, QUARTER, INNER RH

main61703-28908iYR2#..LHD..GL198808-199001

W(TWIN SUN ROOF)

main61703-28911iYR2#,31..LHD198808-199001

main61703-95D04iYR21..RHD198808-199001

main61703-95D06iYR21..RHD198808-199001

W(TWIN SUN ROOF)

61704HPANEL SUB-ASSY, QUARTER, INNER LH

main61704-28906iYR2#..LHD..GL198808-199001

W(TWIN SUN ROOF)

main61704-28909iYR2#,31..LHD198808-199001

main61704-87051iYR21..RHD198808-199001

W(TWIN SUN ROOF)

main61704-87053iYR21..RHD198808-199001

61709BOX SUB-ASSY, FUEL INLET

main61709-87006iYR21..RHD198808-199001

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-87001iYR2#,31198808-199001

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61744-87001iYR2#,31198808-199001

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-87001iYR2#,31198808-199001

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-87001iYR2#,31198808-199001

61771CFRAME, BACK DOOR OPENING SIDE, RH

main61771-87003iYR2#,31198808-199001

61772CFRAME, BACK DOOR OPENING SIDE, LH

main61772-87001iYR2#,31198808-199001

61776ANUT, W/PLATE

main61776-87004iYR31;YR21..RHD198901-199001

main61776-87201iYR31;YR21..RHD198808-198901

63067ABRACKET SUB-ASSY, SLIDING ROOF MOUNT, RH

main63067-28010iYR2#..LHD..GL198808-199001

main63067-87001iYR21..RHD198808-199001

63068ABRACKET SUB-ASSY, SLIDING ROOF MOUNT, LH

main63068-28010iYR2#..LHD..GL198808-199001

main63068-87001iYR21..RHD198808-199001

63168ARETAINER, ROOF REINFORCEMENT, NO.1

main63168-87001iYR2#,31198808-199001

63169RETAINER, ROOF REINFORCEMENT, NO.2

main63169-87001×3iYR2#,31198808-199001

67179RETAINER, REAR DOOR SWITCH, LH

main67179-87001iYR21..RHD198808-199001

67281BSTOPPER, BACK DOOR, LOWER

main67281-87002iYR2#,31198808-199001

68981ARETAINER, BACK DOOR STAY, RH

main68981-87002iYR2#,31198808-199001

68982ARETAINER, BACK DOOR STAY, LH

main68982-87001iYR2#,31198808-199001

8299187002WIRE, FUSIBLE LINK REPAIR

main82991-87002

9011906250

main90119-06250

9033325001

main90333-25001

63 parts on this diagram · 3 diagrams in section
