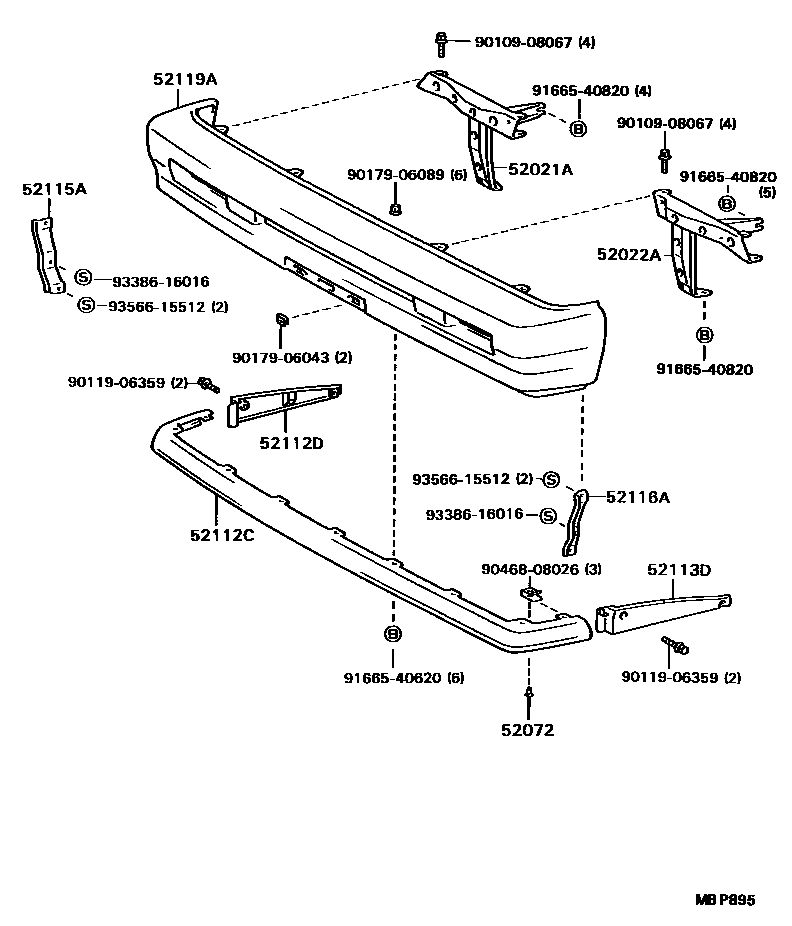

FRONT BUMPER & BUMPER STAY

52021AREINFORCEMENT SUB-ASSY, FRONT BUMPER, RH

main52021-87001iYR2#,31198808-199001

52022AREINFORCEMENT SUB-ASSY, FRONT BUMPER, LH

main52022-87001iYR2#,31198808-199001

52072RETAINER SUB-ASSY, FRONT BUMPER, LOWER

main52072-28010×3iYR2#,31198808-199001

52112CEXTENSION, FRONT BUMPER

main52112-28010iYR2#,31198808-199001

52112DEXTENSION, FRONT BUMPER, RH

main52112-28020iYR2#,31198808-199001

52113DEXTENSION, FRONT BUMPER, LH

main52113-28010iYR2#,31198808-199001

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-87001iYR2#,31198808-199001

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-87001iYR2#,31198808-199001

52119ACOVER, FRONT BUMPER

main52119-87001iYR2#,31198808-199001

main52119-87003iYR2#..LHD..5F198808-199001

W(HEADLAMP CLEANER)

9010908067

main90109-08067

9011906359

main90119-06359

9017906043

main90179-06043

9017906089

main90179-06089

9046808026

main90468-08026

9166540620

main91665-40620

9166540820

main91665-40820

9338616016

main93386-16016

9356615512

main93566-15512

18 parts on this diagram · 1 diagram in section
