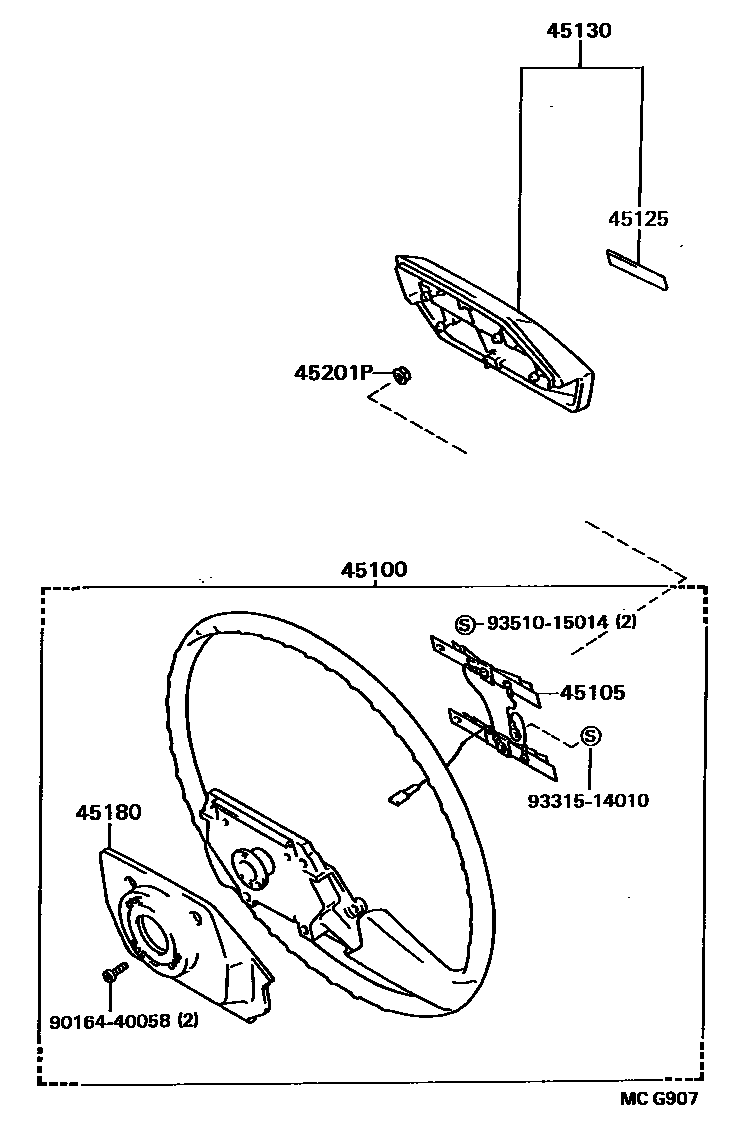

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-32040-03iYR2#,31198808-199001

SHADOW GRAY,TRIM1#

main45100-32040-06iYR2#,31..GL198808-199001

BROWN,TRIM4#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-32030iYR2#,31198808-199001

45125MARK, STEERING WHEEL PAD

main45125-28110iYR2#,31198808-199001

45130BUTTON ASSY, HORN

main45130-28060-03iYR2#,31198808-199001

GRAY,TRIM1#

main45130-28060-16iYR2#,31..GL198808-199001

BROWN,TRIM4#

45180COVER SUB-ASSY, STEERING WHEEL

main45180-32020-03iYR2#,31198808-199001

SHADOW GRAY,TRIM1#

main45180-32020-06iYR2#,31..GL198808-199001

BROWN,TRIM4#

45201PNUT, STEERING WHEEL SET

main90179-12086iYR2#,31198808-199001

9016440058

main90164-40058

9331514010

main93315-14010

9351015014

main93510-15014

9 parts on this diagram · 1 diagram in section
