TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

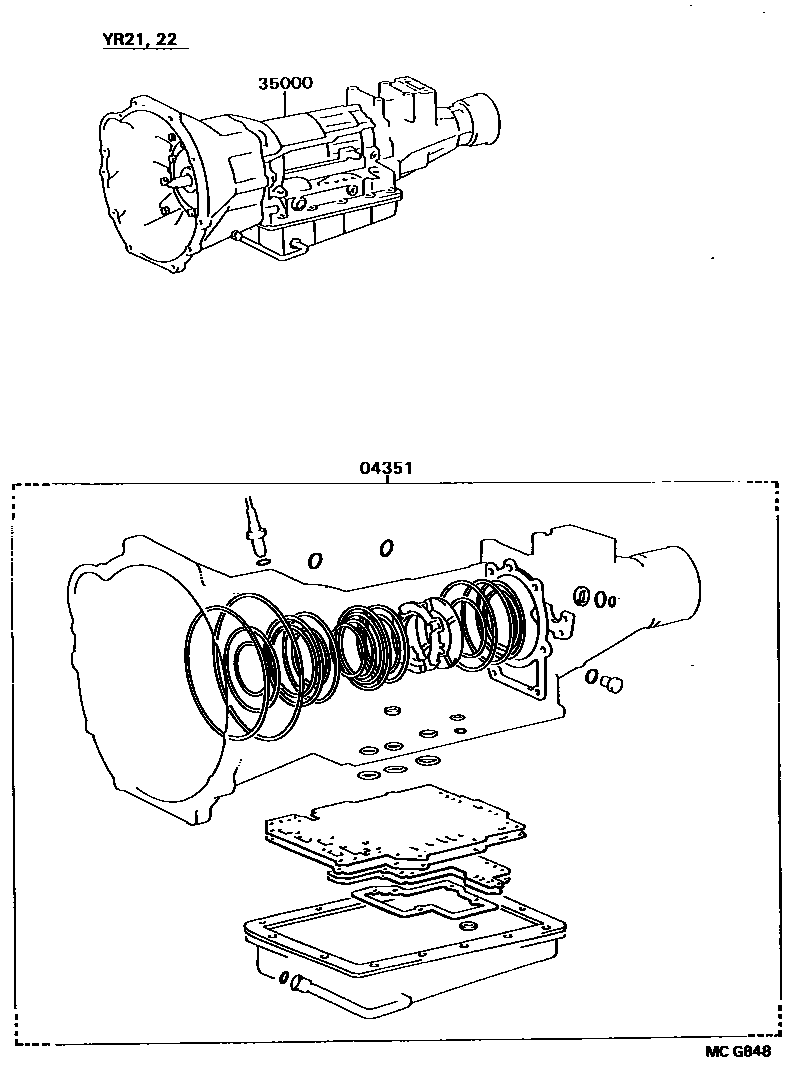

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-30100i198808-199001

main04351-30110i198808-199001

35000TRANSMISSION ASSY, AUTOMATIC

main35000-28122i198910-199001

main35000-28242i198910-199001

2 parts on this diagram · 1 diagram in section
