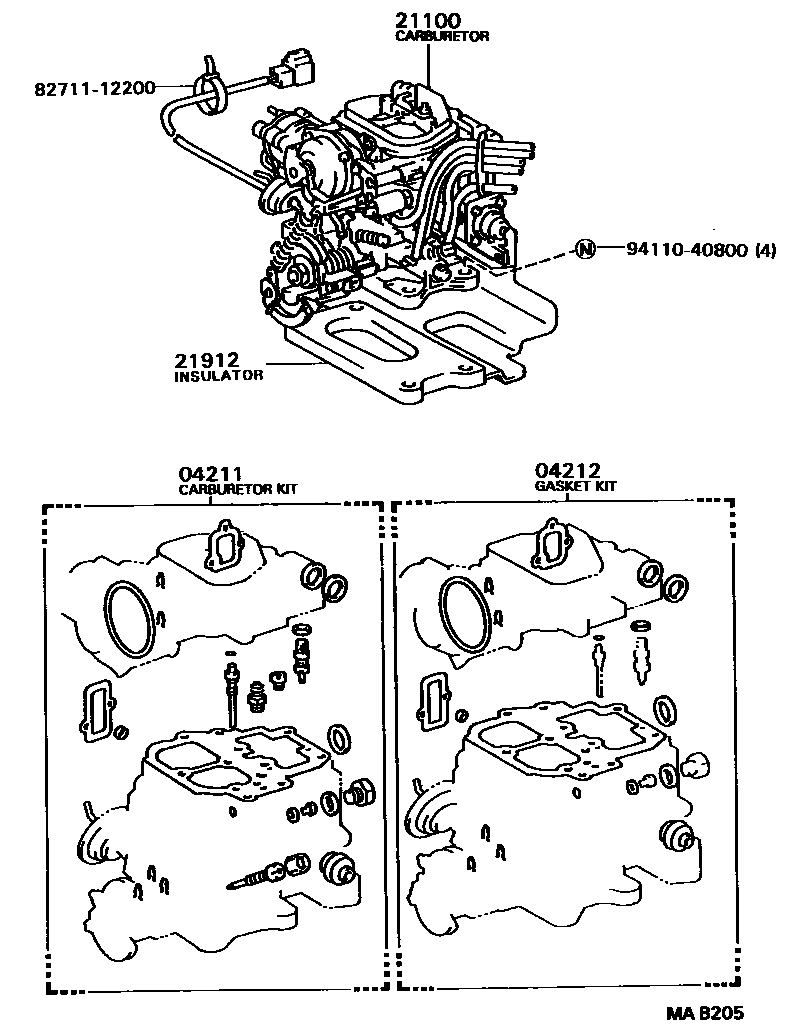

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-72060i3Y..YR21198808-199001

04212GASKET KIT, CARBURETOR

main04212-71020i3Y..YR21198808-199001

21100CARBURETOR ASSY

main21100-73102i3Y..YR21198808-199001

21912INSULATOR, CARBURETOR HEAT

main21912-72010i3Y..YR21198808-198912

main21912-72011i3Y..YR21198912-199001

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9411040800

main94110-40800

6 parts on this diagram · 1 diagram in section
