SEAT & SEAT TRACK

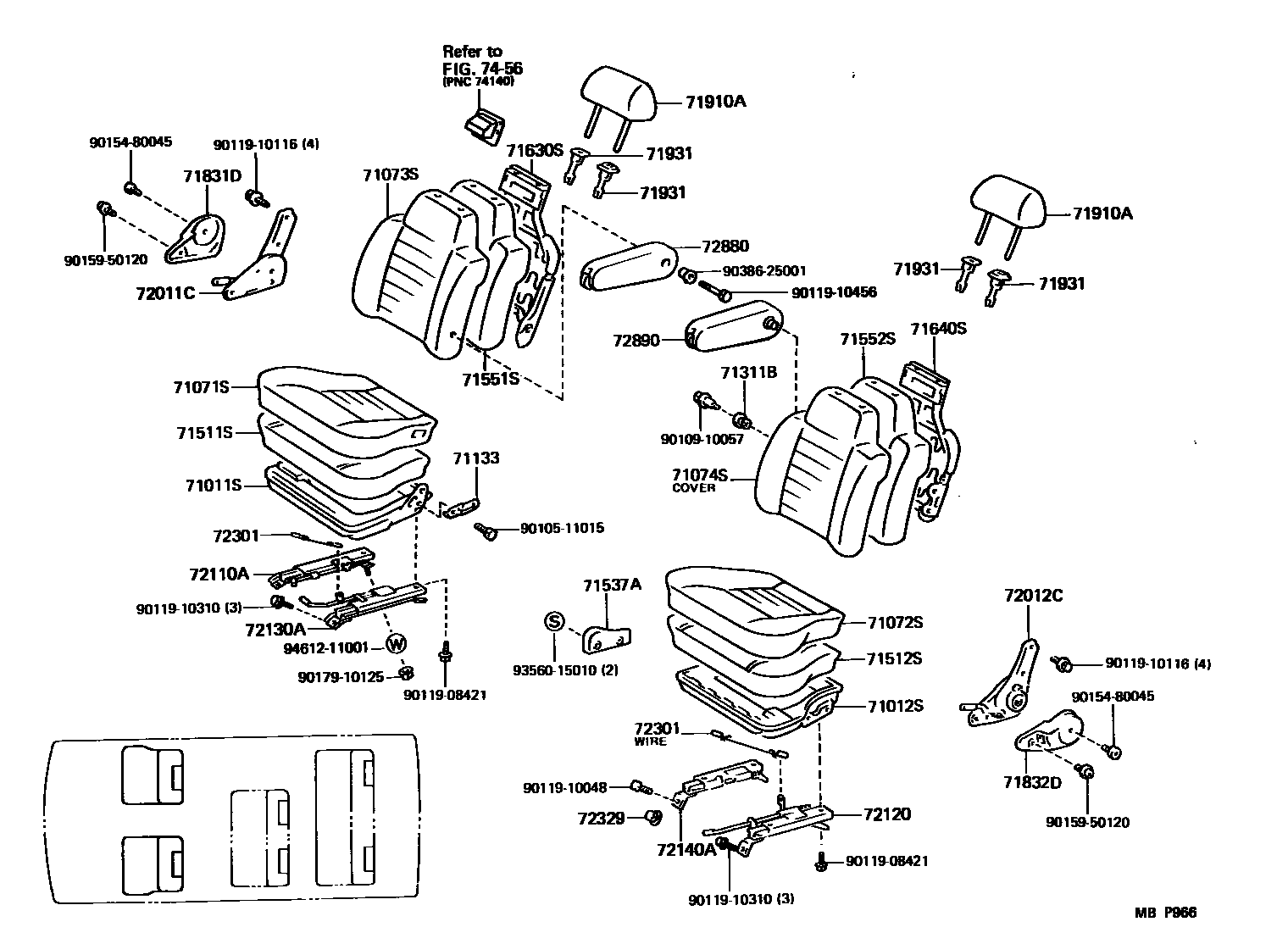

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-28020i198808-199001
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71012-28020i198808-199001
sub71012-28030
main71012-28030i198808-199001
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-28015-03i198808-199001
SHADOW GRAY,TRIM1#
main71071-28015-04i198808-199001
BLUE,TRIM8#
main71071-28015-06i198808-199001
SABLE,TRIM4#
main71071-28024-03i198808-199001
SHADOW GRAY,TRIM1#
main71071-28024-04i198808-199001
BLUE,TRIM8#
main71071-28024-06i198808-199001
SABLE,TRIM4#
main71071-28031-03i198808-199001
SHADOW GRAY,TRIM1#
main71071-28031-04i198808-199001
BLUE,TRIM8#
main71071-28031-06i198808-199001
SABLE,TRIM4#
main71071-28043-03i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#
main71071-28043-04i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
main71071-28043-06i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-28015-03i198808-199001
SHADOW GRAY,TRIM1#
main71072-28015-04i198808-199001
BLUE,TRIM8#
main71072-28015-06i198808-199001
SABLE,TRIM4#
main71072-28024-03i198808-199001
SHADOW GRAY,TRIM1#
main71072-28024-04i198808-199001
BLUE,TRIM8#
main71072-28024-06i198808-199001
SABLE,TRIM4#
main71072-28031-03i198808-199001
SHADOW GRAY,TRIM1#
main71072-28031-04i198808-199001
BLUE,TRIM8#
main71072-28031-06i198808-199001
SABLE,TRIM4#
main71072-28043-03i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#
main71072-28043-04i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
main71072-28043-06i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-28024-03i198808-199001
GRAY,TRIM1#
main71073-28024-04i198808-199001
BLUE,TRIM8#
main71073-28024-16i198808-199001
SABLE,TRIM4#
main71073-28034-03i198808-199001
SHADOW GRAY,TRIM1#
main71073-28034-04i198808-199001
BLUE,TRIM8#
main71073-28034-06i198808-199001
SABLE,TRIM4#
main71073-28040-03i198808-199001
SHADOW GRAY,TRIM1#
sub71073-28040
main71073-28040-04i198808-199001
BLUE,TRIM8#
sub71073-28040
main71073-28040-06i198808-199001
SABLE,TRIM4#
sub71073-28040
main71073-28063-03i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#
main71073-28063-04i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
main71073-28063-06i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-28024-03i198808-199001
GRAY,TRIM1#
main71074-28024-04i198808-199001
BLUE,TRIM8#
main71074-28024-16i198808-199001
SABLE,TRIM4#
main71074-28035-03i198808-199001
SHADOW GRAY,TRIM1#
main71074-28035-04i198808-199001
BLUE,TRIM8#
main71074-28035-06i198808-199001
SABLE,TRIM4#
main71074-28040-03i198808-199001
SHADOW GRAY,TRIM1#
sub71074-28040
main71074-28040-04i198808-199001
BLUE,TRIM8#
sub71074-28040
main71074-28040-16i198808-199001
SABLE,TRIM4#
sub71074-28040
main71074-28063-03i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#
main71074-28063-04i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
main71074-28063-06i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#
71133PLATE, FRONT SEAT CUSHION, NO.3
main71133-28010i198808-199001
71311BBUSH (FOR FRONT SEAT HINGE PIN)
main90386-12018i198808-199001
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-28011i198808-199001
main71511-28020i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-28011i198808-199001
main71512-28020i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE)
71537APROTECTOR, FRONT SEAT CUSHION
main71537-28010-03i198808-199001
SHADOW GRAY,TRIM1#
main71537-28010-14i198808-199001
BLUE,TRIM8#
main71537-28010-16i198808-199001
SABLE,TRIM4#
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-28010i198808-199001
main71551-28021i198808-199001
main71551-28030i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-28010i198808-199001
main71552-28021i198808-199001
main71552-28030i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-28031i198808-199001
main71630-28042i198808-199001
main71630-28051i198808-199001
main71630-28060i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-28031i198808-199001
main71640-28042i198808-199001
main71640-28050i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE)
71831DCOVER, FRONT SEAT HINGE, RH
main71831-87001-03i198808-199001
SHADOW GRAY,TRIM1#
sub71831-87001
main71831-87001-14i198808-199001
BLUE,TRIM8#
sub71831-87001
main71831-87001-16i198808-199001
SABLE,TRIM4#
sub71831-87001
71832DCOVER, FRONT SEAT HINGE, LH
main71832-87001-03i198808-199001
SHADOW GRAY,TRIM1#
sub71832-87001
main71832-87001-14i198808-199001
BLUE,TRIM8#
sub71832-87001
main71832-87001-16i198808-199001
SABLE,TRIM4#
sub71832-87001
71910AHEADREST ASSY, FRONT SEAT
main71910-28023-03i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#
sub71910-28033
main71910-28023-04i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
sub71910-28033
main71910-28023-06i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#
sub71910-28033
main71910-28033-03i198808-199001
SHADOW GRAY,TRIM1#
main71910-28033-04i198808-199001
BLUE,TRIM8#
main71910-28033-06i198808-199001
SABLE,TRIM4#
main71910-28040-03i198808-199001
GRAY,TRIM1#
sub71910-28040
main71910-28040-04i198808-199001
BLUE,TRIM8#
sub71910-28040
main71910-28040-16i198808-199001
SABLE,TRIM4#
sub71910-28040
main71910-32100-06i198808-199001
SABLE,TRIM4#
main71910-32100-06i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),SABLE,TRIM4#
main71910-32100-23i198808-199001
SHADOW GRAY,TRIM1#
main71910-32100-23i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),SHADOW GRAY,TRIM1#
main71910-32100-24i198808-199001
BLUE,TRIM8#
main71910-32100-24i198808-199001
W(SEPARATE SEAT & SEPARABLE HEADREST),BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-10060-33i198808-199001
W(LOCK),SHADOW GRAY,TRIM1#
sub71930-10060
main71930-10060-33i198808-199001
W(LOCK),SHADOW GRAY,TRIM1#,W(LOCK)
sub71930-10060
main71930-10060-44i198808-198901
W(LOCK),W(SEPARATE SEAT & SEPARABLE HEADREST),DEEP BLUE,TRIM8#,W(LOCK)
sub71930-10060
main71930-10060-44i198808-198901
W(LOCK),DEEP BLUE,TRIM8#
sub71930-10060
main71930-10060-44i198808-198901
W(LOCK),W(SEPARATE SEAT & SEPARABLE HEADREST),DEEP BLUE,TRIM8#
sub71930-10060
main71930-10060-50i198808-199001
W(LOCK),BROWN,TRIM4#
sub71930-10060
main71930-10060-50i198808-199001
W(LOCK),BROWN,TRIM4#,W(LOCK)
sub71930-10060
main71930-10060-50i198808-199001
W(LOCK),W(SEPARATE SEAT & SEPARABLE HEADREST),BROWN,TRIM4#
sub71930-10060
main71931-10010-33i198808-199001
W/O(LOCK),SHADOW GRAY,TRIM1#,W/O LOCK
sub71931-10010
main71931-10010-44i198808-198901
W/O(LOCK),DEEP BLUE,TRIM8#,W/O LOCK
sub71931-10010
main71931-10010-50i198808-199001
W/O(LOCK),BROWN,TRIM4#,W/O LOCK
sub71931-10010
72011CADJUSTER SUB-ASSY, FRONT SEAT, RH
main72010-28011-03i198808-199001
SHADOW GRAY,TRIM1#
sub72010-28011
main72010-28011-04i198808-199001
BLUE,TRIM8#
sub72010-28011
main72010-28011-16i198808-199001
SABLE,TRIM4#
sub72010-28011
72012CADJUSTER SUB-ASSY, FRONT SEAT, LH
main72020-28011-03i198808-199001
SHADOW GRAY,TRIM1#
sub72020-28011
main72020-28011-04i198808-199001
BLUE,TRIM8#
sub72020-28011
main72020-28011-16i198808-199001
SABLE,TRIM4#
sub72020-28011
main72020-28031-03i198808-199001
SHADOW GRAY,TRIM1#
sub72020-28031
main72020-28031-04i198808-199001
SHADOW GRAY,TRIM8#
sub72020-28031
main72020-28031-16i198808-199001
SABLE,TRIM4#
sub72020-28031
72110ATRACK ASSY, FRONT SEAT, OUTER RH
main72110-28010i198808-199001
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-28020i198808-199001
72130ATRACK ASSY, FRONT SEAT, INNER RH
main72130-28010i198808-199001
72140ATRACK ASSY, FRONT SEAT,INNER LH
main72140-28020i198808-199001
72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING
main72301-28010i198808-199001
LH
main72301-28020i198808-199001
RH
72329COVER, SEAT ADJUSTER BOLT
main72329-87001i198808-199001
72880ARMREST ASSY, SEAT, C RH
main72880-28013-03i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#
main72880-28013-04i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
main72880-28013-06i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#
main72880-28022-03i198808-199001
SHADOW GRAY,TRIM1#
main72880-28022-04i198808-199001
BLUE,TRIM8#
main72880-28022-06i198808-199001
SABLE,TRIM4#
72890ARMREST ASSY, SEAT, C LH
main72890-28033-03i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#
main72890-28033-04i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
main72890-28033-06i198808-199001
W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#
main72890-95D07-03i198808-199001
SHADOW GRAY,TRIM1#
main72890-95D07-04i198808-199001
BLUE,TRIM8#
main72890-95D07-06i198808-199001
SABLE,TRIM4#
7456
9010511015
main90105-11015
9010910057
main90109-10057
9011908421
main90119-08421
9011910048
main90119-10048
9011910116
main90119-10116
9011910310
main90119-10310
9011910456
main90119-10456
9015480045
main90154-80045
9015950120
main90159-50120
9017910125
main90179-10125
9038625001
main90386-25001
9356015010
main93560-15010
9461211001
main94612-11001

43 parts on this diagram · 4 diagrams in section
