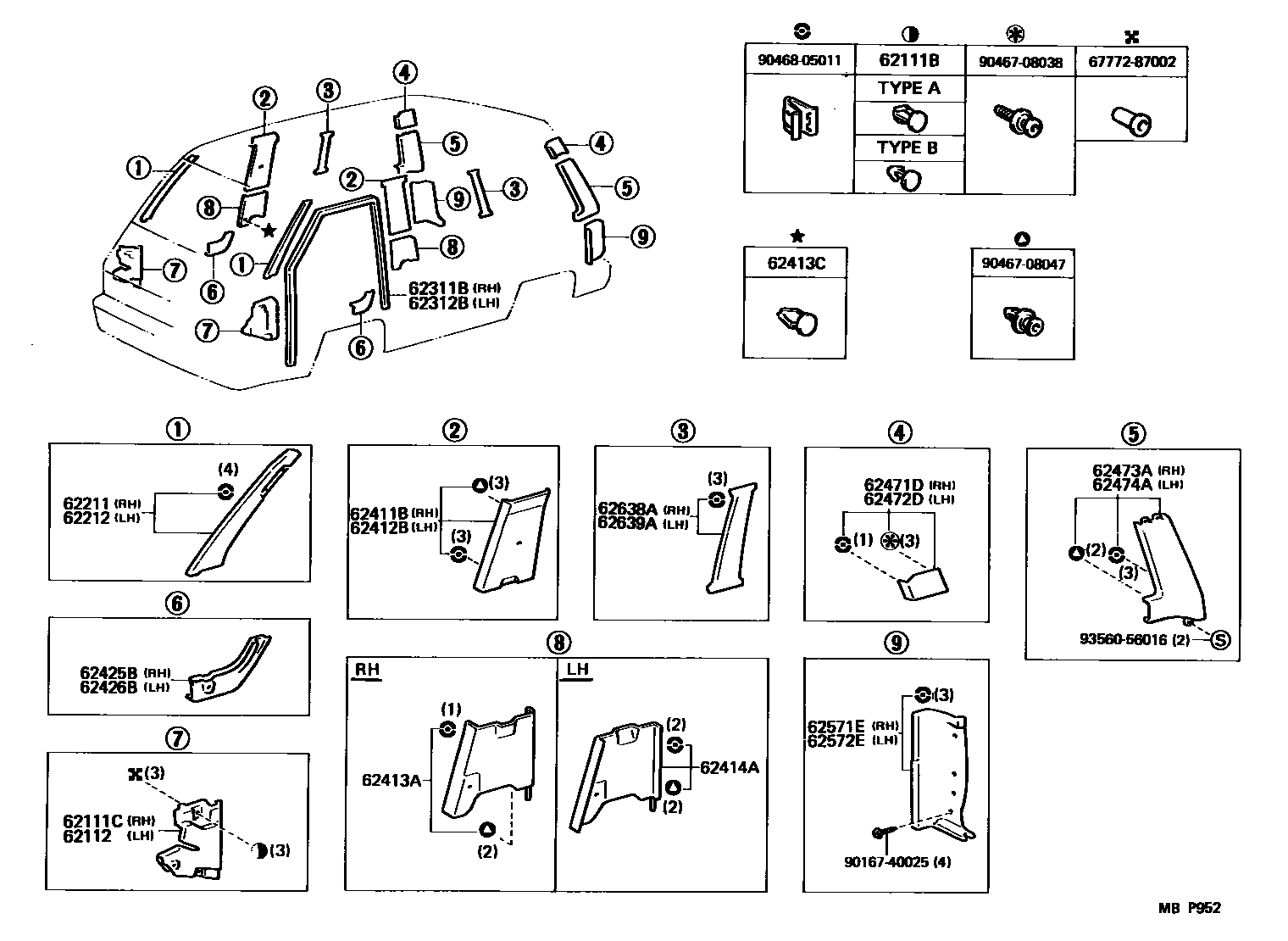

INSIDE TRIM BOARD
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT SABLE,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT SABLE,TRIM4#
62411BGARNISH, CENTER PILLAR, UPPER RH
W(DUAL AIR CONDITIONER),LIGHT BLUE,TRIM8#
sub62411-28070
W(DUAL AIR CONDITIONER),LIGHT SABLE,TRIM4#
sub62411-28070
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLUE,TRIM8#
SABLE,TRIM4#
SHADOW GRAY,TRIM1#
GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT BROWN,TRIM4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLUE,TRIM8#
SABLE,TRIM4#
SHADOW GRAY,TRIM1#
GRAY,TRIM1#
LIGHT BLUE,TRIM8#
LIGHT BROWN,TRIM4#
62425BCOVER, CENTER PILLAR GARNISH, NO.3 RH
62426BCOVER, CENTER PILLAR GARNISH, NO.3 LH
62471DGARNISH, REAR PILLAR, UPPER RH
62472DGARNISH, REAR PILLAR, UPPER LH
62473ABOARD, REAR PILLAR, RH
62474ABOARD, REAR PILLAR, LH
62571EGARNISH, REAR PILLAR, LOWER RH
62572EGARNISH, REAR PILLAR, LOWER LH
62638AGARNISH, QUARTER PILLAR, RH
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
sub62638-28020
W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#
sub62638-28020
W(CAPTAIN SEAT = BELT DOWN TYPE),GRAY,TRIM1#
sub62638-28020
62639AGARNISH, QUARTER PILLAR, LH
6777287002WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-87002
9016740025
main90167-40025
9046708038
main90467-08038
9046708047
main90467-08047
9046805011
main90468-05011
9356056016
main93560-56016
28 parts on this diagram · 4 diagrams in section
