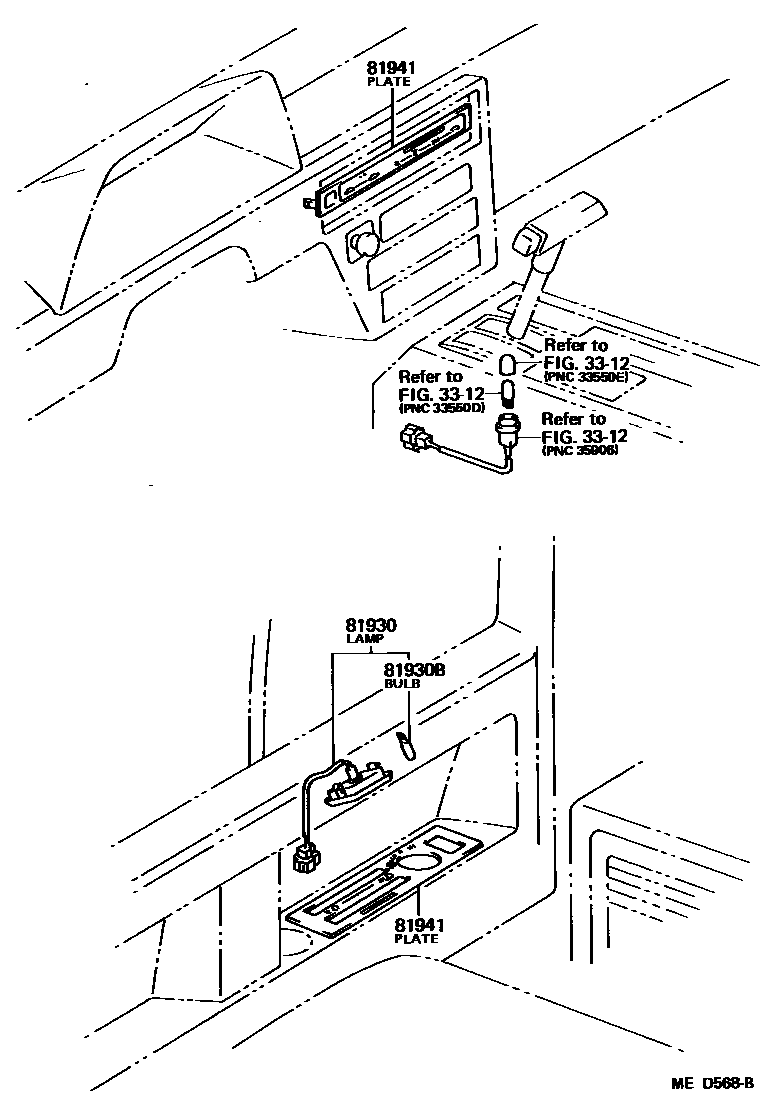

INDICATOR

3312

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-87004iYR2#,3#198308-198808

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11018iYR21;YR27..USA198308-198808

12V 1.2W W/O SOCKET

81941PLATE, HEATER CONTROL NAME

main55519-28010iYR2#198404-198408

FR,W/FR HEATER ONLY

sub55519-28071

main55519-28010iYR21198308-198311

FR,W/COOLER & FR HEATER

sub55519-28071

main55519-28010iYR2#198311-198404

FR

sub55519-28071

main55519-28020iYR21..USA198308-198408

FR,W/BOOST VENTILATOR

sub55519-28081

main55519-28030iYR21..USA198308-198508

RR,W/RR COOLER

sub55519-28051

main55519-28031iYR22,31..USA198508-198808

RR,W/BOOST VENTILATOR

main55519-28040iYR21198308-198311

FR,W/FR HEATER

sub55519-28071

main55519-28050iYR21;YR27..USA198401-198508

RR

sub55519-28051

main55519-28051iYR2#,3#198508-198808

RR

main55519-28060iYR21198404-198408

FR,W/FR HEATER & COOLER

sub55519-28071

main55519-28070iYR2#198408-198508

FR,W/FR HEATER ONLY

sub55519-28071

main55519-28071iYR2#,3#198508-198808

FR,W/FR HEATER ONLY

sub55519-28220

main55519-28080iYR21..USA198408-198508

FR,W/BOOST VENTILATOR

sub55519-28081

main55519-28081iYR22,31..USA198508-198808

FR,W/BOOST VENTILATOR

sub55519-28270

main55519-28100iYR27..CND;YR27..5F..USA198408-198508

FR,W/FR HEATER & COOLER

sub55519-28101

main55519-28101iYR2#,3#198508-198808

FR,W/FR HEATER & COOLER

sub55519-28071

main55519-28130iYR22..LE..USA198508-198608

FR,W/FR HEATER & *AAC

main55519-28140iYR2#,31198508-198808

RR,W/RR COOLER

main55519-28151iYR29..USA198508-198608

RR,W/*AAC

main55519-28170iYR22..CND198508-198608

FR,W/FR HEATER & *AAC

main55519-87004iYR21198308-198401

RR

sub55519-87017

main55519-87004iYR21198408-198508

RR,W/RR HEATER & COOLER

sub55519-87017

main55519-87011iYR27..5F198408-198508

RR,W/RR COOLER,DEALER OPTION

sub55519-87017

4 parts on this diagram · 1 diagram in section
