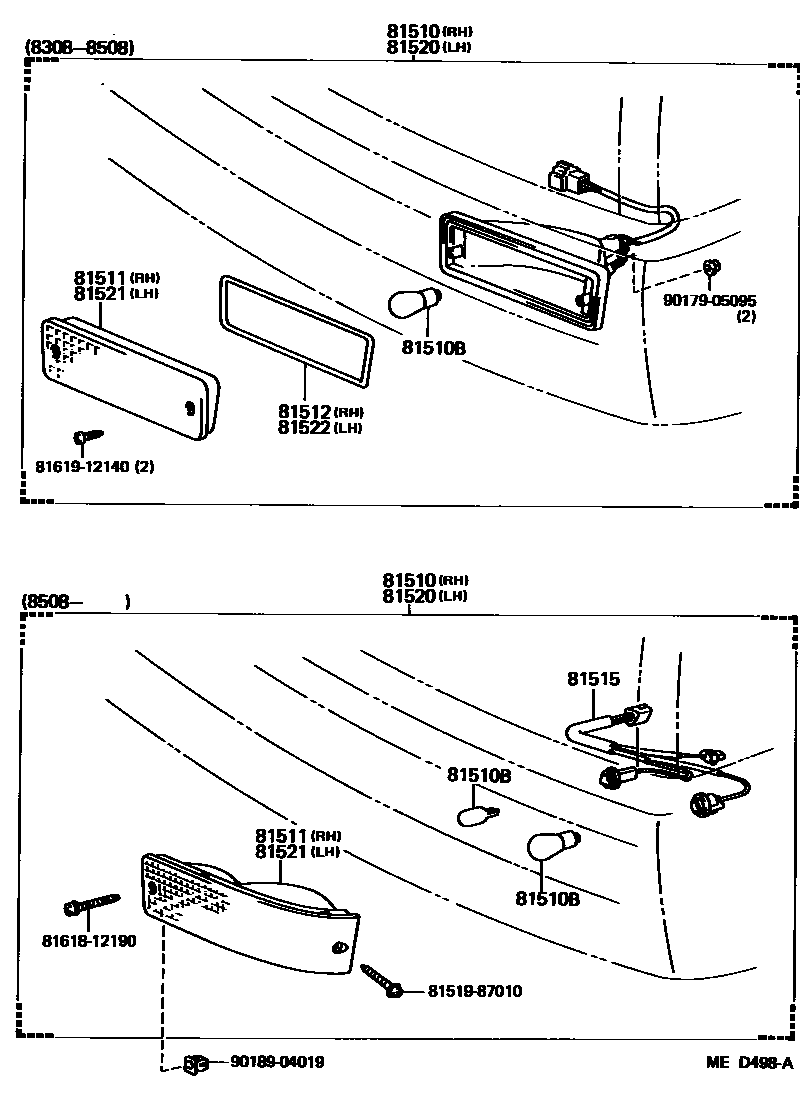

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-80008iYR2#198308-198508

main81510-80030iYR2#,3#198508-198808

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-11020×2iYR2#,3#198508-198808

12V 3.8W,12V 3.8W

main99132-11270×2iYR2#,3#198508-198808

12V 27W,12V 27/8W

main99132-21270×2iYR2#198308-198508

12V 27/8W,12V 27/8W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-28010iYR2#,3#198508-198808

main81511-87004iYR2#198308-198508

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-87004iYR2#198308-198508

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-28010iYR2#,3#198508-198808

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-80008iYR2#198308-198508

main81520-80030iYR2#,3#198508-198808

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-28010iYR2#,3#198508-198808

main81521-87003iYR2#198308-198508

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-87004iYR2#198308-198508

8151987010BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-87010

8161812190BRACKET, PARKING AND CLEARANCE LAMP, RH

main81618-12190

8161912140

main81619-12140

9017905095

main90179-05095

9018904019

main90189-04019

13 parts on this diagram · 1 diagram in section
