EPC Data

SEAT & SEAT TRACK

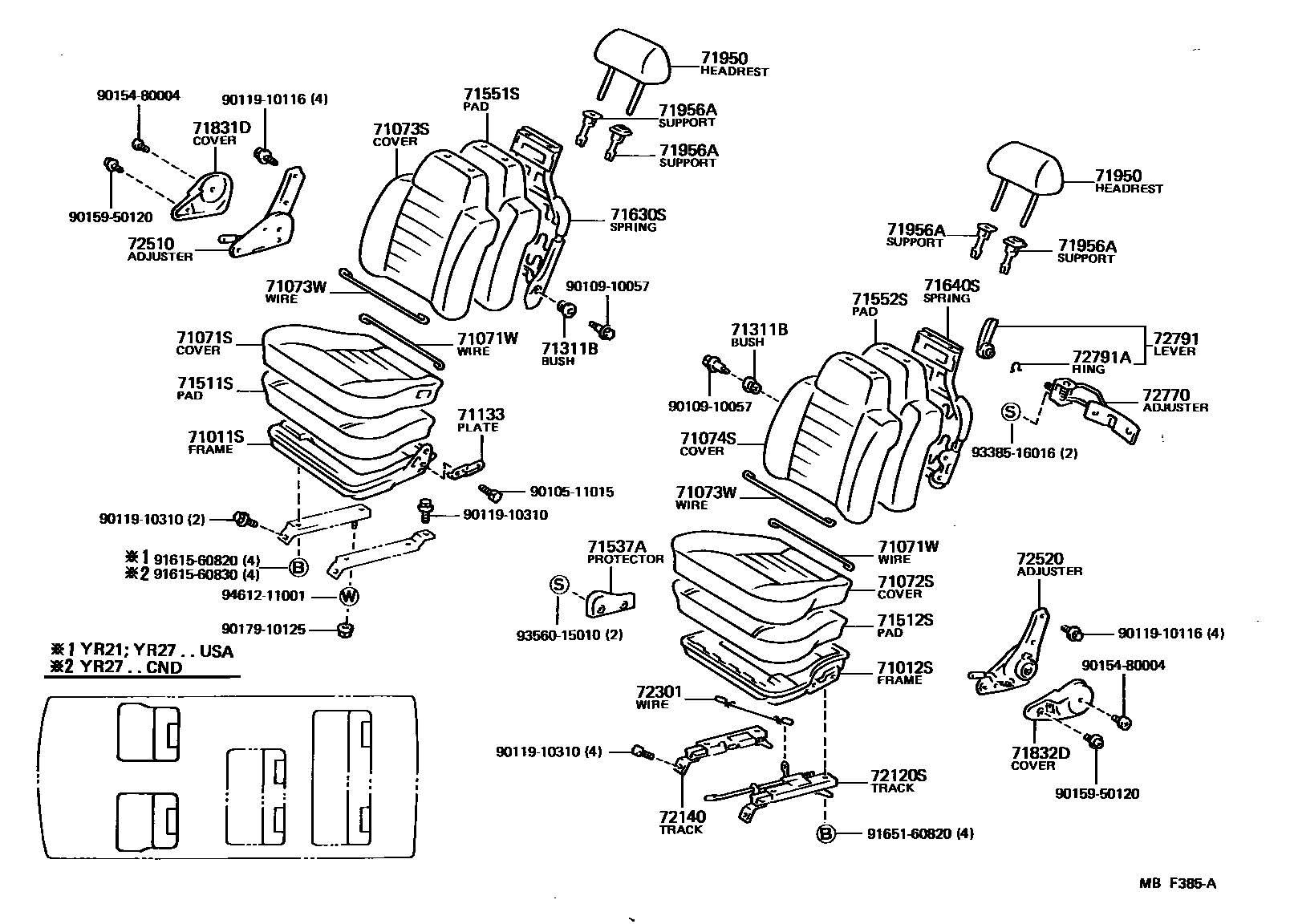

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-28020i198308-198808
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71012-28020i198308-198808
sub71012-28030
main71012-28030i198508-198808
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-28010i198308-198408
FB,WINE
main71071-28011-02i198408-198508
FB,WINE,WINE,TRIM4#
main71071-28012-06i198508-198608
FB,BROWN,BROWN,TRIM4#
main71071-28013-06i198608-198708
FB,BROWN,BROWN,TRIM4#
main71071-28014-03i198708-198804
FB,GRAY,GRAY,TRIM1#
sub71071-28014
main71071-28014-06i198708-198804
FB,BROWN,BROWN,TRIM4#
sub71071-28014
main71071-28015-03i198804-198808
FB,GRAY,SHADOW GRAY,TRIM1#
main71071-28015-16i198804-198808
FB,BROWN,BROWN,TRIM4#
main71071-28020-02i198308-198508
FB,WINE,RED/MAROON,TRIM4#
sub71071-28020
main71071-28020-04i198308-198508
FB,BLUE,BLUE,TRIM1#
sub71071-28020
main71071-28021-04i198508-198608
FB,BLUE,BLUE,TRIM8#
sub71071-28021
sub71071-28022
main71071-28021-06i198508-198608
BROWN,BROWN,TRIM4#
sub71071-28021
sub71071-28022
main71071-28022-03i198608-198708
FB,GRAY,SHADOW GRAY,TRIM1#
sub71071-28022
main71071-28022-06i198608-198708
FB,BROWN,BROWN,TRIM4#
sub71071-28022
main71071-28023-03i198708-198804
FB,GRAY,GRAY,TRIM1#
sub71071-28023
main71071-28023-06i198708-198804
FB,BROWN,BROWN,TRIM4#
sub71071-28023
main71071-28025-03i198804-198806
FB,GRAY,TRIM1#
main71071-28025-06i198804-198806
FB,BROWN,TRIM4#
main71071-28030i198311-198408
VL
sub71071-28031
main71071-28030-02i198408-198508
VL,WINE,WINE,TRIM4#
sub71071-28030
sub71071-28031
main71071-28030-02i198312-198508
VL,HAWAII SPEC,WINE,WINE,TRIM4#
sub71071-28030
sub71071-28031
main71071-28030-03i198603-198804
VL,GRAY,SHADOW GRAY,TRIM1#,4#
sub71071-28030
sub71071-28031
main71071-28030-06i198508-198804
VL,BROWN,BROWN,TRIM4#
sub71071-28030
sub71071-28031
main71071-28031-03i198804-198808
VL,GRAY,SHADOW GRAY,TRIM1#
main71071-28031-16i198804-198808
VL,BROWN,BROWN,TRIM4#
main71071-28040-04i198508-198608
FB,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub71071-28040
sub71071-28041
main71071-28040-06i198508-198608
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71071-28040
sub71071-28041
main71071-28041-03i198608-198708
FB,W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#
sub71071-28041
main71071-28041-06i198608-198708
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71071-28041
main71071-28042-03i198708-198808
FB,W/SWIVEL SEAT,GRAY,GRAY,TRIM1#
sub71071-28042
main71071-28042-06i198708-198808
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71071-28042
main71071-28070-03i198806-198808
FB,GRAY,GRAY,TRIM1#
sub71071-28070
main71071-28070-06i198806-198808
FB,BROWN,BROWN,TRIM4#
sub71071-28070
71071WWIRE, FRONT SEAT CUSHION COVER
main90580-20014i198308-198508
L=850,OD=2.0
sub90580-20107
main90580-20157i198308-198508
L=300,OD=2.0
sub90580-20165
main90580-20161i198308-198508
L=180,OD=2.0
sub90580-20165
main90580-25004i198308-198508
L=300,OD=2.5
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-28010i198308-198408
FB,WINE
main71072-28011-02i198408-198508
FB,WINE,WINE,TRIM4#
main71072-28012-06i198508-198608
FB,BROWN,BROWN,TRIM4#
main71072-28013-06i198608-198708
FB,BROWN,BROWN,TRIM4#
main71072-28014-03i198708-198804
FB,GRAY,GRAY,TRIM1#
sub71072-28014
main71072-28014-06i198708-198804
FB,BROWN,BROWN,TRIM4#
sub71072-28014
main71072-28015-03i198804-198808
FB,GRAY,SHADOW GRAY,TRIM1#
main71072-28015-16i198804-198808
FB,BROWN,BROWN,TRIM4#
main71072-28020-02i198308-198508
FB,WINE,RED/MAROON,TRIM4#
sub71072-28020
main71072-28020-04i198308-198508
FB,BLUE,BLUE,TRIM1#
sub71072-28020
main71072-28021-04i198508-198608
FB,BLUE,BLUE,TRIM8#
sub71072-28021
sub71072-28022
main71072-28021-06i198508-198608
FB,BROWN,BROWN,TRIM4#
sub71072-28021
sub71072-28022
main71072-28022-03i198608-198708
FB,GRAY,SHADOW GRAY,TRIM1#
sub71072-28022
main71072-28022-06i198608-198708
FB,BROWN,BROWN,TRIM4#
sub71072-28022
main71072-28023-03i198708-198804
FB,GRAY,GRAY,TRIM1#
sub71072-28023
main71072-28023-06i198708-198804
FB,BROWN,BROWN,TRIM4#
sub71072-28023
main71072-28025-03i198804-198806
FB,GRAY,TRIM1#
main71072-28025-06i198804-198806
FB,BROWN,TRIM4#
main71072-28030i198311-198408
VL
sub71072-28031
main71072-28030-02i198408-198508
VL,WINE,WINE,TRIM4#
sub71072-28030
sub71072-28031
main71072-28030-02i198312-198508
VL,HAWAII SPEC,WINE,WINE,TRIM4#
sub71072-28030
sub71072-28031
main71072-28030-03i198603-198804
VL,GRAY,SHADOW GRAY,TRIM1#,4#
sub71072-28030
sub71072-28031
main71072-28030-06i198508-198804
VL,BROWN,BROWN,TRIM4#
sub71072-28030
sub71072-28031
main71072-28031-03i198804-198808
VL,GRAY,SHADOW GRAY,TRIM1#
main71072-28031-16i198804-198808
VL,BROWN,BROWN,TRIM4#
main71072-28040-04i198508-198608
FB,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub71072-28040
sub71072-28041
main71072-28040-06i198508-198608
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71072-28040
sub71072-28041
main71072-28041-03i198608-198708
FB,W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#
sub71072-28041
main71072-28041-06i198608-198708
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71072-28041
main71072-28042-03i198708-198808
FB,W/SWIVEL SEAT,GRAY,GRAY,TRIM1#
sub71072-28042
main71072-28042-06i198708-198808
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71072-28042
main71072-28070-03i198806-198808
FB,GRAY,GRAY,TRIM1#
sub71072-28070
main71072-28070-06i198806-198808
FB,BROWN,BROWN,TRIM4#
sub71072-28070
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-28020i198308-198408
FB,WINE
main71073-28021-02i198408-198508
FB,WINE,WINE,TRIM4#
main71073-28022-06i198508-198608
FB,BROWN,BROWN,TRIM4#
main71073-28023-06i198608-198708
FB,BROWN,BROWN,TRIM4#
main71073-28024-03i198708-198808
FB,GRAY,GRAY,TRIM1#
main71073-28024-06i198708-198808
FB,BROWN,BROWN,TRIM4#
main71073-28030-02i198308-198508
FB,WINE,RED/MAROON,TRIM4#
sub71073-28030
main71073-28030-04i198308-198508
FB,BLUE,BLUE,TRIM1#
sub71073-28030
main71073-28031-04i198508-198608
FB,BLUE,BLUE,TRIM8#
sub71073-28031
sub71073-28032
main71073-28031-06i198508-198608
FB,BROWN,BROWN,TRIM4#
sub71073-28031
sub71073-28032
main71073-28032-03i198608-198708
FB,GRAY,SHADOW GRAY,TRIM1#
sub71073-28032
main71073-28032-06i198608-198708
FB,BROWN,BROWN,TRIM4#
sub71073-28032
main71073-28033-03i198708-198808
FB,GRAY,GRAY,TRIM1#
sub71073-28033
main71073-28033-06i198708-198808
FB,BROWN,BROWN,TRIM4#
sub71073-28033
main71073-28040i198311-198408
VL
main71073-28040-02i198408-198508
VL,WINE,WINE,TRIM4#
sub71073-28040
main71073-28040-02i198312-198508
VL,HAWAII SPEC,WINE,WINE,TRIM4#
sub71073-28040
main71073-28040-03i198603-198808
VL,GRAY,SHADOW GRAY,TRIM1#,4#
sub71073-28040
main71073-28040-06i198508-198808
VL,BROWN,SABLE,TRIM4#
sub71073-28040
main71073-28060-04i198508-198608
FB,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub71073-28060
sub71073-28061
main71073-28060-06i198508-198608
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71073-28060
sub71073-28061
main71073-28061-03i198608-198708
FB,W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#
sub71073-28061
main71073-28061-06i198608-198708
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71073-28061
main71073-28062-03i198708-198808
FB,W/SWIVEL SEAT,GRAY,GRAY,TRIM1#
sub71073-28062
main71073-28062-06i198708-198808
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71073-28062
71073WWIRE, FRONT SEATBACK COVER
main90580-20099i198308-198508
L=400,OD=2.0
sub90580-20165
main90580-20125i198308-198408
L=370,OD=2.0
main90580-25021i198308-198508
L=280,OD=2.5
sub90580-26013
main90580-25033i198308-198508
L=260,OD=2.5
sub90580-26013
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-28020i198308-198408
FB,WINE
main71074-28021-02i198408-198508
FB,WINE,WINE,TRIM4#
main71074-28022-06i198508-198708
FB,BROWN,BROWN,TRIM4#
main71074-28023-06i198608-198708
FB,BROWN,BROWN,TRIM4#
main71074-28024-03i198708-198808
FB,GRAY,GRAY,TRIM1#
main71074-28024-06i198708-198808
FB,BROWN,BROWN,TRIM4#
main71074-28030-02i198308-198408
FB,WINE,RED/MAROON,TRIM4#
sub71074-28031
main71074-28030-04i198308-198408
FB,BLUE,BLUE,TRIM1#
sub71074-28031
main71074-28031-02i198408-198508
FB,WINE,WINE,TRIM4#
sub71074-28030
main71074-28031-04i198408-198508
FB,BLUE,BLUE,TRIM1#
sub71074-28030
main71074-28032-04i198508-198608
FB,BLUE,BLUE,TRIM8#
sub71074-28032
sub71074-28033
main71074-28032-06i198508-198608
FB,BROWN,BROWN,TRIM4#
sub71074-28032
sub71074-28033
main71074-28033-03i198608-198708
FB,GRAY,SHADOW GRAY,TRIM1#
sub71074-28033
main71074-28033-06i198608-198708
FB,BROWN,BROWN,TRIM4#
sub71074-28033
main71074-28034-03i198708-198808
FB,GRAY,GRAY,TRIM1#
sub71074-28034
main71074-28034-06i198708-198808
FB,BROWN,BROWN,TRIM4#
sub71074-28034
main71074-28040i198311-198408
VL
main71074-28040-02i198408-198508
VL,WINE,WINE,TRIM4#
sub71074-28040
main71074-28040-02i198312-198508
VL,HAWAII SPEC,WINE,WINE,TRIM4#
sub71074-28040
main71074-28040-03i198603-198808
VL,GRAY,SHADOW GRAY,TRIM1#,4#
sub71074-28040
main71074-28040-06i198508-198808
VL,BROWN,BROWN,TRIM4#
sub71074-28040
main71074-28060-04i198508-198608
FB,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub71074-28060
sub71074-28061
main71074-28060-06i198508-198608
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71074-28060
sub71074-28061
main71074-28061-03i198608-198708
FB,W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#
sub71074-28061
main71074-28061-06i198608-198708
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71074-28061
main71074-28062-03i198708-198808
FB,W/SWIVEL SEAT,GRAY,GRAY,TRIM1#
sub71074-28062
main71074-28062-06i198708-198808
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71074-28062
71133PLATE, FRONT SEAT CUSHION, NO.3
main71133-28010i198308-198808
71311BBUSH (FOR FRONT SEAT HINGE PIN)
main90386-12018i198308-198808
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-28010i198308-198804
main71511-28020i198508-198808
W/SWIVEL SEAT
main71512-28011i198804-198808
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-28010i198308-198804
main71512-28011i198804-198808
main71512-28020i198508-198808
W/SWIVEL SEAT
71537APROTECTOR, FRONT SEAT CUSHION
main71537-28010-02i198308-198508
WINE,RED/MAROON,TRIM4#
main71537-28010-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main71537-28010-03i198603-198608
GRAY,SHADOW GRAY,TRIM4#
main71537-28010-04i198308-198508
BLUE,BLUE,TRIM1#
main71537-28010-04i198508-198603
BLUE,BLUE,TRIM4#,8#
main71537-28010-06i198508-198808
BROWN,BROWN,TRIM4#
main71537-28010-14i198603-198608
BLUE,BLUE,TRIM8#
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-28010i198308-198808
main71551-28020i198308-198408
main71551-28021i198408-198808
main71551-28030i198508-198808
W/SWIVEL SEAT
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-28010i198308-198808
main71552-28020i198308-198408
main71552-28021i198408-198808
main71552-28030i198508-198808
W/SWIVEL SEAT
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-28030i198308-198408
sub71630-28031
main71630-28031i198408-198808
main71630-28040i198308-198408
main71630-28041i198408-198508
main71630-28042i198508-198808
main71630-28050i198311-198408
sub71630-28051
main71630-28051i198408-198808
main71630-28060i198508-198808
W/SWIVEL SEAT
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-28030i198308-198408
main71640-28031i198408-198808
main71640-28040i198308-198408
main71640-28041i198408-198508
main71640-28042i198508-198808
main71640-28050i198508-198808
W/SWIVEL SEAT
71831DCOVER, FRONT SEAT HINGE, RH
main71831-87001-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub71831-87001
main71831-87001-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub71831-87001
main71831-87001-03i198603-198608
GRAY,SHADOW GRAY,TRIM4#
sub71831-87001
main71831-87001-04i198308-198508
BLUE,BLUE,TRIM1#
sub71831-87001
main71831-87001-06i198508-198808
BROWN,BROWN,TRIM4#
sub71831-87001
main71831-87001-14i198508-198603
BLUE,BLUE,TRIM4#,8#
sub71831-87001
main71831-87001-14i198603-198608
BLUE,BLUE,TRIM8#
sub71831-87001
71832DCOVER, FRONT SEAT HINGE, LH
main71832-87001-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub71832-87001
main71832-87001-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub71832-87001
main71832-87001-03i198603-198608
GRAY,SHADOW GRAY,TRIM4#
sub71832-87001
main71832-87001-04i198308-198508
BLUE,BLUE,TRIM1#
sub71832-87001
main71832-87001-06i198508-198808
BROWN,BROWN,TRIM4#
sub71832-87001
main71832-87001-14i198603-198608
BLUE,BLUE,TRIM8#
sub71832-87001
main71832-87001-14i198508-198603
BLUE,BLUE,TRIM4#,8#
sub71832-87001
71950HEADREST ASSY, FRONT SEAT
main71910-28010-02i198308-198508
WINE,RED/MAROON,TRIM4#
main71910-28010-04i198308-198508
BLUE,BLUE,TRIM1#
main71910-28020-04i198508-198608
W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub71910-28030
main71910-28020-06i198508-198608
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71910-28030
main71910-28021-03i198608-198708
W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#
main71910-28021-06i198608-198708
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main71910-28022-03i198708-198808
FB,W/SWIVEL SEAT,GRAY,GRAY,TRIM1#
sub71910-28032
main71910-28022-06i198708-198808
FB,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub71910-28032
main71910-28030-04i198510-198608
BLUE,BLUE,TRIM8#
sub71910-28030
sub71910-28031
main71910-28030-06i198510-198608
BROWN,BROWN,TRIM4#
sub71910-28030
sub71910-28031
main71910-28031-03i198608-198708
FB,GRAY,SHADOW GRAY,TRIM1#
main71910-28031-06i198608-198708
FB,BROWN,BROWN,TRIM4#
main71910-28032-03i198708-198808
FB,GRAY,GRAY,TRIM1#
main71910-28032-06i198708-198808
FB,BROWN,BROWN,TRIM4#
main71910-28040-03i198708-198808
GRAY,GRAY,TRIM1#
sub71910-28040
main71910-28040-06i198708-198808
BROWN,BROWN,TRIM4#
sub71910-28040
main71910-32010-02i198308-198408
WINE,RED/MAROON,TRIM4#
sub71910-32100
main71910-32100-02i198408-198508
WINE,WINE,TRIM4#
main71910-32100-05i198508-198808
BEIGE,BEIGE,TRIM4#
main71910-32100-23i198603-198808
GRAY,SHADOW GRAY,TRIM1#
main71910-87012-04i198508-198510
BLUE,BLUE,TRIM8#
main71910-87012-06i198508-198510
BROWN,BROWN,TRIM4#
71956ASUPPORT, FRONT SEAT HEADREST
main71930-10060-02i198308-198508
W(LOCK),W/LOCK,WINE,DARK WINE,TRIM4#
sub71930-10060
main71930-10060-04i198308-198603
W(LOCK),W/LOCK,BLUE,BLUE,TRIM1#,4#,8#
sub71930-10060
main71930-10060-04i198603-198608
W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#
sub71930-10060
main71930-10060-16i198508-198808
W(LOCK),W/LOCK,BROWN,SABLE,TRIM4#
sub71930-10060
main71930-10060-33i198603-198608
W(LOCK),W/LOCK,GRAY,SHADOW GRAY,TRIM4#
sub71930-10060
main71930-10060-33i198608-198808
W(LOCK),W/LOCK,GRAY,SHADOW GRAY,TRIM1#
sub71930-10060
main71931-10010-02i198308-198508
W/O(LOCK),W/O LOCK,WINE,DARK WINE,TRIM4#
sub71931-10010
main71931-10010-04i198603-198608
W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#
sub71931-10010
main71931-10010-04i198308-198603
W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM1#,4#,8#
sub71931-10010
main71931-10010-16i198508-198808
W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4#
sub71931-10010
main71931-10010-33i198603-198608
W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY,TRIM4#
sub71931-10010
main71931-10010-33i198608-198808
W/O(LOCK),W/O LOCK,GRAY,SHADOW GRAY,TRIM1#
sub71931-10010
72120STRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
main72120-28020i198308-198808
72140TRACK ASSY, LH SEAT, INNER
main72140-28020i198308-198808
72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING
main72301-28010i198308-198808
LH
main72301-28020i198508-198808
RH
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
main72010-28010-03i198608-198804
GRAY,SHADOW GRAY,TRIM1#
sub72010-28011
main72010-28010-03i198603-198608
GRAY,SHADOW GRAY,TRIM4#
sub72010-28011
main72010-28010-04i198603-198608
BLUE,BLUE,TRIM8#
sub72010-28011
main72010-28010-04i198508-198603
BLUE,BLUE,TRIM4#,8#
sub72010-28011
main72010-28010-06i198508-198804
BROWN,BROWN,TRIM4#
sub72010-28011
main72010-28011-03i198804-198808
GRAY,SHADOW GRAY,TRIM1#
sub72010-28011
main72010-28011-06i198804-198808
BROWN,BROWN,TRIM4#
sub72010-28011
main72010-87001-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub72010-87001
main72010-87001-04i198308-198508
BLUE,BLUE,TRIM1#
sub72010-87001
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
main72020-28010-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub72020-28011
main72020-28010-03i198608-198804
GRAY,SHADOW GRAY,TRIM1#
sub72020-28011
main72020-28010-04i198308-198508
BLUE,BLUE,TRIM1#
sub72020-28011
main72020-28010-06i198508-198804
BROWN,BROWN,TRIM4#
sub72020-28011
main72020-28010-14i198508-198602
BLUE,BLUE,TRIM4#,8#
sub72020-28011
main72020-28010-14i198602-198608
BLUE,BLUE,TRIM8#
sub72020-28011
main72020-28011-03i198804-198808
GRAY,SHADOW GRAY,TRIM1#
sub72020-28011
main72020-28011-06i198804-198808
BROWN,BROWN,TRIM4#
sub72020-28011
main72020-28030-03i198603-198804
GRAY,SHADOW GRAY,TRIM1#,4#
sub72020-28031
sub72020-28030
main72020-28030-04i198602-198603
BLUE,BLUE,TRIM4#
sub72020-28031
sub72020-28030
main72020-28030-06i198602-198804
BROWN,BROWN,TRIM4#
sub72020-28031
sub72020-28030
main72020-28031-03i198804-198808
GRAY,SHADOW GRAY,TRIM1#
sub72020-28031
main72020-28031-06i198804-198808
BROWN,BROWN,TRIM4#
sub72020-28031
72770ADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-28010i198308-198408
72791LEVER, LUMBAR SUPPORT
main72791-30010-02i198308-198408
WINE,RED/MAROON,TRIM4#
sub72791-30010
main72791-30010-04i198308-198408
BLUE,BLUE,TRIM1#
sub72791-30010
72791ARING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
main90520-01002i198308-198408
sub90520-01274
9010511015
main90105-11015
9010910057
main90109-10057
9011910116
main90119-10116
9011910310
main90119-10310
9015480004
main90154-80004
9015950120
main90159-50120
9017910125
main90179-10125
9161560820
main91615-60820
9161560830
main91615-60830
9165160820
main91651-60820
9338516016
main93385-16016
9356015010
main93560-15010
9461211001
main94612-11001

42 parts on this diagram · 6 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
