INSIDE TRIM BOARD

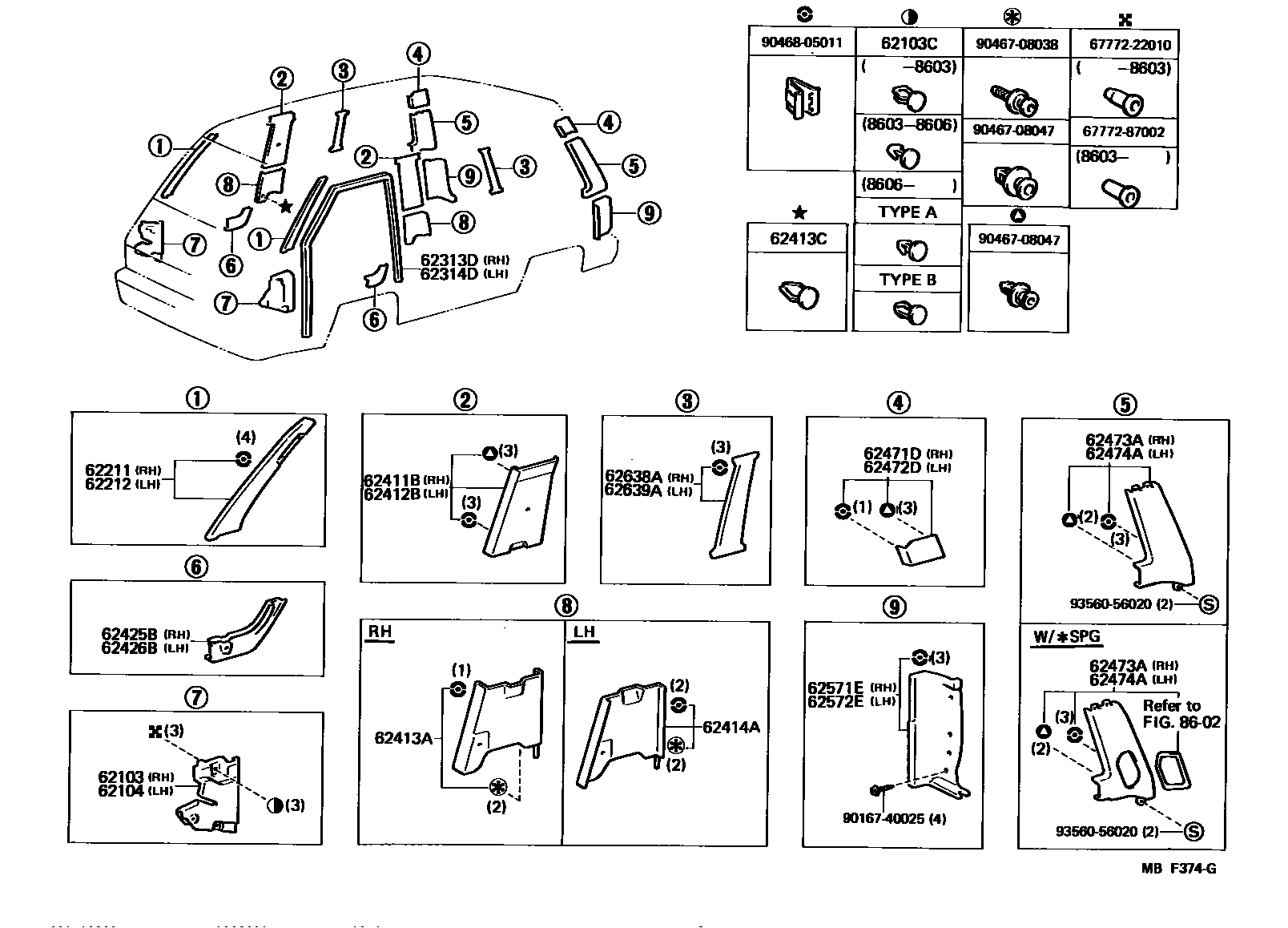

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62111-28010-02i198408-198508
WINE,WINE,TRIM4#
sub62111-28010
main62111-28010-03i198308-198408
GRAY,GRAY,TRIM1#
sub62111-28010
main62111-28010-04i198408-198508
BLUE,BLUE,TRIM1#
sub62111-28010
main62111-28010-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62111-28010
main62111-28010-06i198508-198808
BROWN,BROWN,TRIM4#
sub62111-28010
main62111-28010-13i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub62111-28010
main62111-28010-13i198603-198608
GRAY,SHADOW GRAY,TRIM4#
sub62111-28010
main62111-28010-14i198603-198608
BLUE,BLUE,TRIM8#
sub62111-28010
main62111-28010-14i198508-198603
BLUE,BLUE,TRIM4#,8#
sub62111-28010
62103CCLIP, COWL SIDE TRIM BOARD SET
main90467-08065-03i198606-198808
TYPE A,GRAY,SHADOW GRAY,TRIM1#
sub90467-08065
main90467-08065-03i198603-198606
GRAY,SHADOW GRAY,TRIM4#
sub90467-08065
main90467-08065-06i198603-198606
BROWN,BROWN,TRIM4#
sub90467-08065
main90467-08065-06i198606-198808
TYPE A,BROWN,BROWN,TRIM4#
sub90467-08065
main90467-08065-14i198606-198608
TYPE A,BLUE,BLUE,TRIM8#
sub90467-08065
main90467-08065-14i198603-198606
BLUE,BLUE,TRIM8#
sub90467-08065
main90467-10017-03i198308-198311
GRAY,GRAY,TRIM1#
sub90467-10017
main90467-10017-05i198308-198311
BEIGE,BEIGE,TRIM4#
sub90467-10017
main90467-12078-03i198311-198408
GRAY,GRAY,TRIM1#
sub90467-12078
main90467-12078-05i198311-198408
BEIGE,BEIGE,TRIM4#
sub90467-12078
main90467-12078-13i198606-198808
TYPE B,GRAY,SHADOW GRAY,TRIM1#
sub90467-12078
main90467-12078-22i198408-198508
WINE,WINE,TRIM4#
sub90467-12078
main90467-12078-24i198408-198508
BLUE,BLUE,TRIM1#
sub90467-12078
main90467-12078-34i198508-198603
BLUE,BLUE,TRIM4#,8#
sub90467-12078
main90467-12078-34i198606-198808
TYPE B,BLUE,BLUE,TRIM8#
sub90467-12078
main90467-12078-46i198606-198808
TYPE B,BROWN,BROWN,TRIM4#
sub90467-12078
main90467-12078-46i198508-198603
BROWN,BROWN,TRIM4#
sub90467-12078
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62112-87003-02i198408-198508
WINE,WINE,TRIM4#
sub62112-87003
main62112-87003-03i198308-198408
GRAY,GRAY,TRIM1#
sub62112-87003
main62112-87003-04i198408-198508
BLUE,BLUE,TRIM1#
sub62112-87003
main62112-87003-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62112-87003
main62112-87003-06i198508-198808
BROWN,BROWN,TRIM4#
sub62112-87003
main62112-87003-13i198603-198608
GRAY,SHADOW GRAY,TRIM4#
sub62112-87003
main62112-87003-13i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub62112-87003
main62112-87003-14i198603-198608
BLUE,BLUE,TRIM8#
sub62112-87003
main62112-87003-14i198508-198603
BLUE,BLUE,TRIM4#,8#
sub62112-87003
62211GARNISH, FRONT PILLAR, RH
main62211-28020i198308-198408
BEIGE
main62211-28020-03i198603-198808
GRAY,GRAY,TRIM1#
sub62211-28020
main62211-28020-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62211-28020
main62211-28020-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62211-28020
main62211-28030-03i198308-198508
GRAY,GRAY,TRIM1#
sub62211-28030
main62211-28030-05i198308-198408
BEIGE,BEIGE,TRIM1#
sub62211-28030
main62211-28030-13i198508-198808
GRAY,GRAY,TRIM1#,8#
sub62211-28030
main62211-28030-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62211-28030
main62211-28030-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62211-28030
main62211-28040-03i198308-198508
W/SUN ROOF,GRAY,GRAY,TRIM1#
sub62211-28040
main62211-28040-05i198308-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM1#
sub62211-28040
main62211-28040-15i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62211-28040
62212GARNISH, FRONT PILLAR, LH
main62212-28020i198308-198408
BEIGE
sub62211-28020
main62212-28020-03i198708-198808
GRAY,GRAY,TRIM1#
sub62212-28020
sub62211-28020
main62212-28020-03i198603-198708
GRAY,GRAY,TRIM1#,4#
sub62212-28020
sub62211-28020
main62212-28020-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62212-28020
sub62211-28020
main62212-28020-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62212-28020
sub62211-28020
main62212-28030-03i198308-198508
GRAY,GRAY,TRIM1#
sub62212-28030
main62212-28030-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62212-28030
main62212-28030-13i198508-198808
GRAY,GRAY,TRIM1#,8#
sub62212-28030
main62212-28030-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62212-28030
main62212-28030-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62212-28030
main62212-28040-03i198308-198508
W/SUN ROOF,GRAY,GRAY,TRIM1#
sub62212-28040
main62212-28040-05i198308-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62212-28040
main62212-28040-15i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62212-28040
62313DTRIM, FRONT DOOR OPENING, RH
main62311-28010-03i198308-198508
W/WEATHERSTRIP,GRAY,GRAY,TRIM1#
sub62311-28010
main62311-28010-05i198308-198408
W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#
sub62311-28010
main62311-28010-13i198508-198606
W/WEATHERSTRIP,GRAY,GRAY,TRIM4#,8#
sub62311-28010
main62311-28010-15i198408-198508
W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#
sub62311-28010
main62311-28010-25i198508-198606
W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#
sub62311-28010
main62311-28020-03i198606-198808
W/WEATHERSTRIP,GRAY,GRAY,TRIM1#
main62311-28020-05i198606-198808
W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#
main62313-28010-05i198308-198401
BEIGE,BEIGE,TRIM4#
62314DTRIM, FRONT DOOR OPENING, LH
main62312-28010-03i198308-198508
W/WEATHERSTRIP,GRAY,GRAY,TRIM1#
sub62312-28010
main62312-28010-05i198308-198408
W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#
sub62312-28010
main62312-28010-13i198508-198606
W/WEATHERSTRIP,GRAY,GRAY,TRIM4#,8#
sub62312-28010
main62312-28010-15i198408-198508
W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#
sub62312-28010
main62312-28010-25i198508-198606
W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#
sub62312-28010
main62312-28020-03i198606-198808
W/WEATHERSTRIP,GRAY,GRAY,TRIM1#
main62312-28020-05i198606-198808
W/WEATHERSTRIP,BEIGE,BEIGE,TRIM4#
main62313-28010-05i198308-198401
BEIGE,BEIGE,TRIM4#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62410-28020-03i198308-198508
W/SUN ROOF,GRAY,GRAY,TRIM1#
sub62410-28020
main62410-28020-05i198308-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62410-28020
main62410-28020-13i198508-198808
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
sub62410-28020
main62410-28020-15i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62410-28020
main62410-28020-25i198508-198808
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62410-28020
main62411-28060i198308-198408
BEIGE
main62411-28060-03i198708-198808
GRAY,GRAY,TRIM1#
sub62411-28060
main62411-28060-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62411-28060
main62411-28060-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62411-28060
main62411-28070i198308-198408
W/RR COOLER,BEIGE
main62411-28070-03i198708-198808
W/RR COOLER,GRAY,GRAY,TRIM1#
sub62411-28070
main62411-28070-15i198408-198508
W/RR COOLER,BEIGE,BEIGE,TRIM4#
sub62411-28070
main62411-28070-25i198508-198808
W/RR COOLER,BEIGE,BEIGE,TRIM4#
sub62411-28070
main62411-28080-03i198308-198508
GRAY,GRAY,TRIM1#
sub62411-28080
main62411-28080-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62411-28080
main62411-28080-13i198508-198808
GRAY,GRAY,TRIM1#,8#
sub62411-28080
main62411-28080-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62411-28080
main62411-28080-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62411-28080
main62411-28090-03i198308-198508
W/RR COOLER,W/O SUN ROOF,GRAY,GRAY,TRIM1#
sub62411-28090
main62411-28090-05i198308-198408
W/RR COOLER,W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62411-28090
main62411-28090-13i198508-198808
W/RR COOLER,W/O SUN ROOF,GRAY,GRAY,TRIM1#,8#
sub62411-28090
main62411-28090-15i198408-198508
W/RR COOLER,W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62411-28090
main62411-28090-25i198508-198808
W/RR COOLER,W/O SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62411-28090
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-28040i198308-198408
BEIGE
main62412-28040-03i198708-198808
GRAY,GRAY,TRIM1#
sub62412-28040
main62412-28040-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62412-28040
main62412-28040-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62412-28040
main62412-28050-03i198308-198508
GRAY,GRAY,TRIM1#
sub62412-28050
main62412-28050-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62412-28050
main62412-28050-13i198508-198808
GRAY,GRAY,TRIM1#,8#
sub62412-28050
main62412-28050-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62412-28050
main62412-28050-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62412-28050
main62420-28020-03i198308-198508
W/SUN ROOF,GRAY,GRAY,TRIM1#
sub62420-28020
main62420-28020-05i198308-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62420-28020
main62420-28020-13i198508-198808
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
sub62420-28020
main62420-28020-15i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62420-28020
main62420-28020-25i198508-198808
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62420-28020
62413AGARNISH, CENTER PILLAR, LOWER RH
main62041-28010-03i198308-198508
GRAY,GRAY,TRIM1#
main62041-28010-05i198308-198408
BEIGE,BEIGE,TRIM4#
main62041-28010-13i198508-198808
GRAY,GRAY,TRIM1#,8#
main62041-28010-15i198408-198508
BEIGE,BEIGE,TRIM4#
main62041-28010-25i198508-198808
BEIGE,BEIGE,TRIM4#
main62413-28010-03i198708-198808
GRAY,GRAY,TRIM1#
main62413-28010-05i198308-198408
BEIGE,BEIGE,TRIM4#
main62413-28010-15i198408-198508
BEIGE,BEIGE,TRIM4#
main62413-28010-25i198508-198808
BEIGE,BEIGE,TRIM4#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90044-68035-03i198708-198808
GRAY,GRAY,TRIM1#
sub90044-68035
main90044-68035-03i198308-198708
GRAY,GRAY,TRIM1#,8#
sub90044-68035
main90044-68035-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub90044-68035
main90044-68035-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub90044-68035
main90044-68035-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub90044-68035
62414AGARNISH, CENTER PILLAR, LOWER LH
main62042-28010-03i198308-198508
GRAY,GRAY,TRIM1#
main62042-28010-05i198308-198408
BEIGE,BEIGE,TRIM4#
main62042-28010-13i198508-198808
GRAY,GRAY,TRIM1#,8#
main62042-28010-15i198408-198508
BEIGE,BEIGE,TRIM4#
main62042-28010-25i198508-198808
BEIGE,BEIGE,TRIM4#
main62414-28010-03i198708-198808
GRAY,GRAY,TRIM1#
main62414-28010-05i198308-198408
BEIGE,BEIGE,TRIM4#
main62414-28010-15i198408-198508
BEIGE,BEIGE,TRIM4#
main62414-28010-25i198508-198808
BEIGE,BEIGE,TRIM4#
62425BCOVER, CENTER PILLAR GARNISH, NO.3 RH
main62425-87001-03i198308-198508
GRAY,GRAY,TRIM1#
sub62425-87001
main62425-87001-04i198508-198608
BLUE,BLUE,TRIM8#
sub62425-87001
main62425-87001-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62425-87001
main62425-87001-06i198508-198808
BROWN,BROWN,TRIM4#
sub62425-87001
main62425-87001-13i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub62425-87001
main62425-87001-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62425-87001
62426BCOVER, CENTER PILLAR GARNISH, NO.3 LH
main62426-87001-03i198308-198508
GRAY,GRAY,TRIM1#
sub62426-87001
main62426-87001-04i198508-198608
BLUE,BLUE,TRIM8#
sub62426-87001
main62426-87001-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62426-87001
main62426-87001-06i198508-198808
BROWN,BROWN,TRIM4#
sub62426-87001
main62426-87001-13i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub62426-87001
main62426-87001-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62426-87001
62471DGARNISH, REAR PILLAR, UPPER RH
main62471-87004-03i198708-198808
GRAY,GRAY,TRIM1#
sub62471-87004
main62471-87004-03i198308-198708
GRAY,GRAY,TRIM1#,8#
sub62471-87004
main62471-87004-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62471-87004
main62471-87004-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62471-87004
main62471-87004-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62471-87004
main62471-87006-03i198308-198808
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
sub62471-87006
main62471-87006-05i198308-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62471-87006
main62471-87006-15i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62471-87006
main62471-87006-25i198508-198808
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62471-87006
62472DGARNISH, REAR PILLAR, UPPER LH
main62472-87004-03i198308-198708
GRAY,GRAY,TRIM1#,8#
sub62472-87004
main62472-87004-03i198708-198808
GRAY,GRAY,TRIM1#
sub62472-87004
main62472-87004-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62472-87004
main62472-87004-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62472-87004
main62472-87004-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62472-87004
main62472-87006-03i198308-198808
W/SUN ROOF,GRAY,GRAY,TRIM1#,8#
sub62472-87006
main62472-87006-05i198308-198408
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62472-87006
main62472-87006-15i198408-198508
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62472-87006
main62472-87006-25i198508-198808
W/SUN ROOF,BEIGE,BEIGE,TRIM4#
sub62472-87006
62473ABOARD, REAR PILLAR, RH
main62473-87001-03i198608-198808
GRAY,GRAY,TRIM1#
sub62473-87001
main62473-87001-03i198308-198608
GRAY,GRAY,TRIM1#,8#
sub62473-87001
main62473-87001-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62473-87001
main62473-87001-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62473-87001
main62473-87001-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62473-87001
main62473-87002-03i198308-198708
W/*SPG,GRAY,GRAY,TRIM1#,8#
sub62473-87002
main62473-87002-03i198708-198808
W/*SPG,GRAY,GRAY,TRIM1#
sub62473-87002
main62473-87002-05i198308-198408
W/*SPG,BEIGE,BEIGE,TRIM4#
sub62473-87002
main62473-87002-15i198408-198508
W/*SPG,BEIGE,BEIGE,TRIM4#
sub62473-87002
main62473-87002-25i198508-198808
W/*SPG,BEIGE,BEIGE,TRIM4#
sub62473-87002
62474ABOARD, REAR PILLAR, LH
main62474-87001-03i198608-198808
GRAY,GRAY,TRIM1#
sub62474-87001
main62474-87001-03i198308-198608
GRAY,GRAY,TRIM1#,8#
sub62474-87001
main62474-87001-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62474-87001
main62474-87001-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62474-87001
main62474-87001-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62474-87001
main62474-87002-03i198708-198808
W/*SPG,GRAY,GRAY,TRIM1#
sub62474-87002
main62474-87002-03i198308-198708
W/*SPG,GRAY,GRAY,TRIM1#,8#
sub62474-87002
main62474-87002-05i198308-198408
W/*SPG,BEIGE,BEIGE,TRIM4#
sub62474-87002
main62474-87002-15i198408-198508
W/*SPG,BEIGE,BEIGE,TRIM4#
sub62474-87002
main62474-87002-25i198508-198808
W/*SPG,BEIGE,BEIGE,TRIM4#
sub62474-87002
62571EGARNISH, REAR PILLAR, LOWER RH
main62571-87002-03i198508-198708
GRAY,GRAY,TRIM1#,8#
sub62571-87002
main62571-87002-03i198708-198808
GRAY,GRAY,TRIM1#
sub62571-87002
main62571-87002-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62571-87002
main62571-87003-03i198308-198508
GRAY,GRAY,TRIM1#
sub62571-87002
main62571-87003-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62571-87002
main62571-87003-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62571-87002
62572EGARNISH, REAR PILLAR, LOWER LH
main62572-87001-03i198308-198508
GRAY,GRAY,TRIM1#
sub62572-87002
main62572-87001-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62572-87002
main62572-87001-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62572-87002
main62572-87002-03i198508-198708
GRAY,GRAY,TRIM1#,8#
sub62572-87002
main62572-87002-03i198708-198808
GRAY,GRAY,TRIM1#
sub62572-87002
main62572-87002-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62572-87002
62638AGARNISH, QUARTER PILLAR, RH
main62638-28030i198308-198408
BEIGE
main62638-28030-03i198708-198808
GRAY,GRAY,TRIM1#
sub62638-28030
main62638-28030-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62638-28030
main62638-28030-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62638-28030
main62638-28040-03i198308-198508
GRAY,GRAY,TRIM1#
sub62638-28040
main62638-28040-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62638-28040
main62638-28040-13i198508-198808
GRAY,GRAY,TRIM1#,8#
sub62638-28040
main62638-28040-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62638-28040
main62638-28040-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62638-28040
62639AGARNISH, QUARTER PILLAR, LH
main62639-28030i198308-198408
BEIGE
main62639-28030-03i198708-198808
GRAY,GRAY,TRIM1#
sub62639-28030
main62639-28030-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62639-28030
main62639-28030-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62639-28030
main62639-28040-03i198308-198508
GRAY,GRAY,TRIM1#
sub62639-28040
main62639-28040-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub62639-28040
main62639-28040-13i198508-198808
GRAY,GRAY,TRIM1#,8#
sub62639-28040
main62639-28040-15i198408-198508
BEIGE,BEIGE,TRIM4#
sub62639-28040
main62639-28040-25i198508-198808
BEIGE,BEIGE,TRIM4#
sub62639-28040
8602
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
6777287002WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-87002
9016740025
main90167-40025
9046708038
main90467-08038
9046708047
main90467-08047
9046805011
main90468-05011
9356056020
main93560-56020

30 parts on this diagram · 4 diagrams in section

INSIDE TRIM BOARD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
