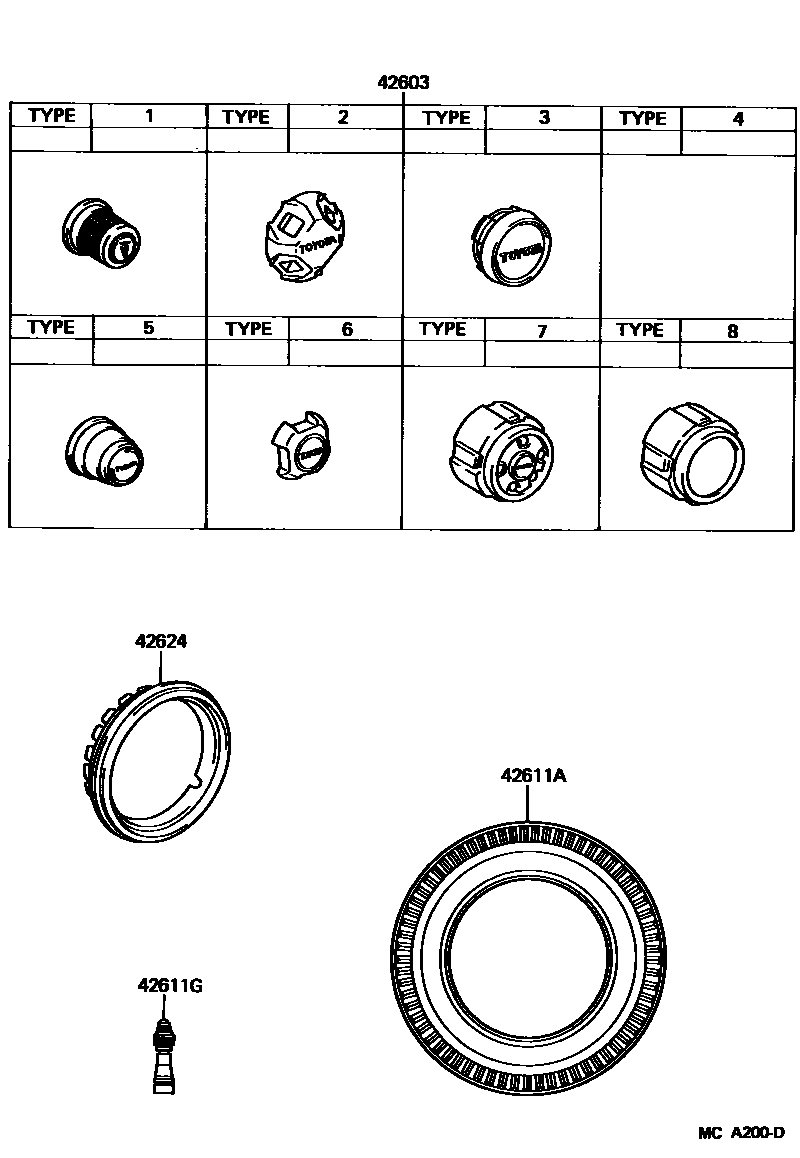

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14161×4iYR21198308-198408

TYPE 2,W/ALUMI WHEEL

main42603-22140×4iYR21198408-198508

TYPE 3,W/ALUMI WHEEL

main42603-27020×4iYR22198608-198808

TYPE 5,BLACK

main42603-27030×4iYR22..LE198608-198808

TYPE 5,PLATING

main42603-27060×4iYR29198608-198808

*STE,TYPE 5

main42603-28030×4iYR2#198308-198608

TYPE 1

main42603-28060×2iYR3#198608-198808

TYPE 7

main42603-28070×2iYR3#198608-198808

TYPE 8,W/FREE WHEEL HUB,FR

main42603-28080×4iYR2#198608-198808

TYPE 6,W/ALUMI,14 IN WHEEL

42611ATIRE TUBE SET OR TUBELESS TIRE

main42652-28050×5iYR22..DLX198508-198608

P185/75R14

main42652-28100×5iYR3#198608-198808

P195/75R14

main42652-28170×5iYR29198508-198808

175R14-6

main42652-28180×5iYR2#198508-198608

P195/75R14

main42652-28200×5iYR2#198608-198808

P195/75R14

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×5iYR2#,3#198308-198808

42624RING, WHEEL CAP

main42624-14031×4iYR21,22..LE198408-198808

4 parts on this diagram · 2 diagrams in section
